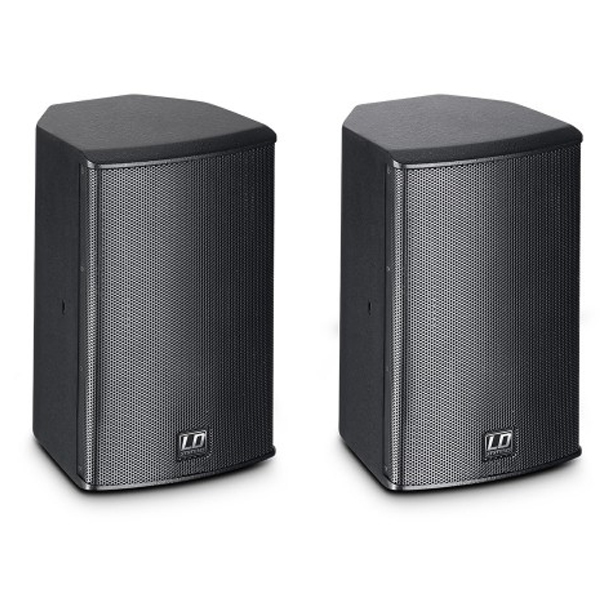

LD Systems SAT 62 G2 80 Watt 6.5 Inch Installtion Monitor Passive Wall Mounted Loudspeaker - Pair (SAT62G2 SAT62 G2)

LD Systems SAT 62 G2 80 Watt 6.5 Inch Installtion Monitor Passive Wall Mounted Loudspeaker - Pair (SAT62G2 SAT62 G2)

The LD Systems SAT62G2 is an extremely compact, dependable 2-way speaker for numerous installation applications. It blends unobtrusively into practically any surroundings, e.g., in bars and restaurants, retail shops or even at home.

The bass-reflex design with a 6.5" custom woofer and a 1“ silk dome tweeter with wave guide provides for powerful and sonorous reproduction throughout a frequency range of 55 Hz - 20 kHz with a sound-level pressure of up to 108 dB. Thus the SAT62G2 is suitable for full-range operation and as a satellite in conjunction with a subwoofer from the LD installation series. It has a RMS power rating of 80 W. The impedance of 16 ohms permits parallel operation of eight SAT62G2 speakers on 2 ohms.

The 12 mm MDF cabinet with a rugged textured coating is available in black and white. The included mounting bracket and M6 rigging points offer extensive possibilities for mounting; a universal joint mount is available as an accessory. It is connected via spring terminals.

Specification :

• Low/mid Woofer dimensions : 6.5 "
• Woofer dimensions (mm) : 165 mm
• Woofer magnet : Ferrite
• Woofer brand : Custom-made
• HF driver dimensions : 1 "
• HF driver dimention (mm) : 25 mm
• HF driver magnet  : Ferrite
• HF driver brand  : Custom-made
• Dispersion (H x V)  : 60 x 60 °
• Load rating (RMS)  : 80 W
• Frequency response  : 55 - 20000
• SPL (1W/1m)  : 89 dB
• Max. SPL   : 108 dB
• Impedance  : 16 Ohm(s)
• Protection circuits  : HF Driver
• Loudspeaker inputs  : 1
• Speaker input connections  : Clamp connector
• Speakers per amplifier channel (DSP44/45K)  : 8
• Cabinet material  : 12 mm MDF
• Cabinet surface  : texture paint
• Cabinet colour  : Black
• Cabinet construction  : Bass Reflex
• Measurement : 20 X 32 X 20 MM
• Weight : 8.2 kg
