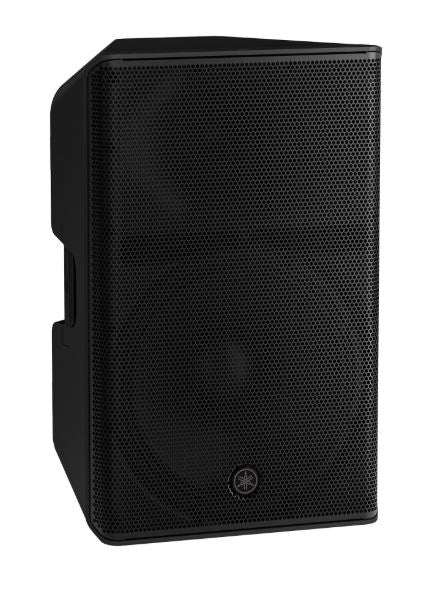

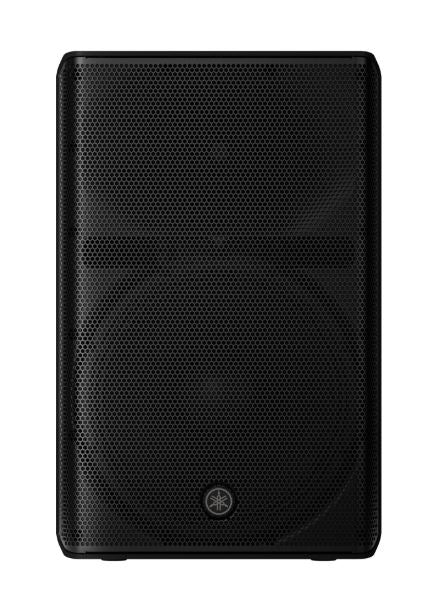

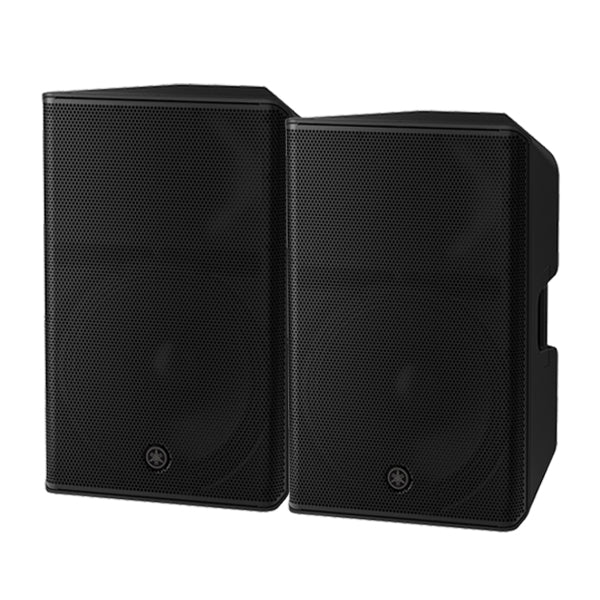

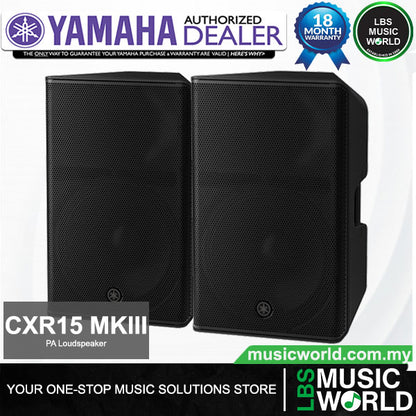

Yamaha CXR15 MK3 1200 Watt 15 Inch 2 Way Passive PA Loudspeaker

Yamaha CXR15 MK3 1200 Watt 15 Inch 2 Way Passive PA Loudspeaker

CXR15 mk3 is a 2-way loudspeaker that delivers the lowest frequencies in its lineup with exceptional clarity, precision, and impressive output capability. This combination of deep low-end and substantial power make it ideal as a main, front-of- house speaker for DJ events or live performances that demand a strong low frequency presence.

Features :

• 15" LF + 1.75" HF proprietary high-durability speaker units
• The large-diameter horn secures directivity control across a wide frequency range
• Optimized port positioning reduces standing wave effects
• Lightweight, high-performance, form-injection molded enclosure with a symmetrical, functional design
• Optional UB-DXR15A U-bracket allows both for vertical or horizontal use
• Optional SPCVR-DXR153 speaker cover protects speakers from rigors of equipment transport, lengthy storage, or outdoor performances
• Rigging points for use with eye bolts
• Dual-angle pole sockets offer both 0° or a -7° down tilt

Specifications:

• Speaker type : 2-way Speaker, Bass-reflex
• Frequency range (-10dB) : 50 Hz - 20 kHz
• Coverage area : H90ﾟ x V60ﾟ
• Crossover : 1.8 kHz
• Nominal impedance : 8 Ω
• SPL :
  Sensitivity (1W; 1m on axis) : 95 dB SPL
  Peak (Calculated) : 126 dB SPL
• Components :
  LF : Diameter: 15" cone, Voice Coil: 3"
  HF : Diaphragm: 1.75", Type: 1" throat compression driver
• Power rating
  NOISE : 300 W
  PGM : 600 W
  PEAK : 1200 W

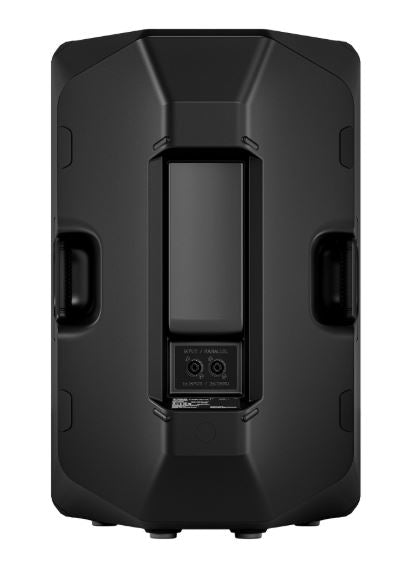

• I/O connectors : SpeakON NL4MP x 2 (parallel connected)
• Cabinet material : Plastic (PP)
• Finish : Black
• Handle : Side x 2
• Pole socket : Φ35 mm x 2 (Bottom, 0° or -7°)
• Rigging : Top x 2, Rear x 1 (Fit for M10 x 18 mm Eyebolts), Bottom x 2, Side x 2 (Fit for M8 x 25 mm UB-DXR15A)
• Floor Monitor Angle : 52ﾟ
• Dimensions : W  : 447 mm (17.6") , H : 699 mm (27.5") , D : 380 mm (15.0")
• Net weight : 19.0 kg (41.9 lbs)
• Options : U-bracket: UB-DXR15A, Cover: SPCVR-DXR153
