Topp Pro TXO-234 MKII 2 And 3 Ways Stereo 4 Way Mono Active Analog Crossover (TXO234)
SKU:Topp Pro-TXO-234 MKII

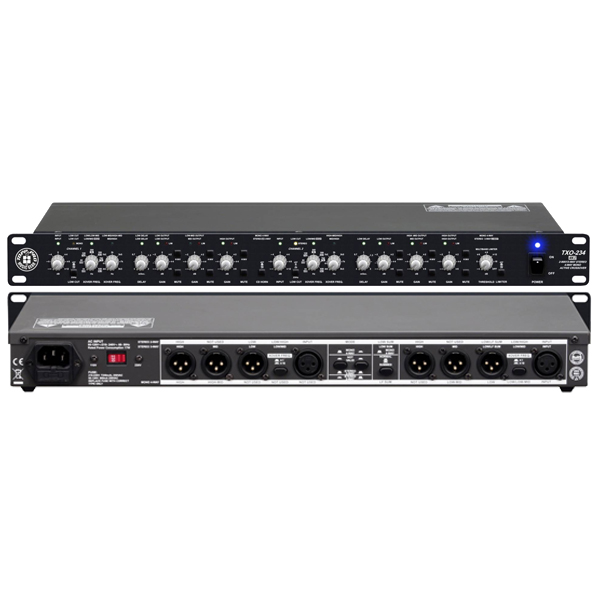

Topp Pro TXO-234 MKII 2 And 3 Ways Stereo 4 Way Mono Active Analog Crossover (TXO234)
TXO-234 MKII is the 2nd generation of Topp Pro’s active analog crossover. This model is highly configurable for widest type of applications as it can be deployed in stereo 2-way, stereo 3-way and mono 4-way. This crossover feature a world-class performance 24db per octave Linkwitz-Riley filters which provide high precision and absolute flat summed amplitude response with zero phase difference. To ensure best possible sound reproduction, the TXO-234 MKII come with advance feature Constant Directivity (CD) Horn correction to ensure the loudspeaker full capability being unleashed.
Features :
- High precision stereo 2-way / 3-way / 4-way mono crossover with limiters
- World-class performance 24 dB per octave Linkwitz-Riley filters
- Absolutely flat summed amplitude response, zero phase difference
- Individual output level controls for all bands
- Individual limiter on each output for optimal loudspeaker protection
- Individual output mutes for easy band adjustment
- Individual phase reverse switches for instant phase correction
- Switchable 25 Hz subsonic filter on each input for low frequency driver protection
- “Low Sum” function provides low-level mono output for subwoofer operation
- Adjustable time delay for phase alignment between drivers
- Constant Directivity (CD) Horn equalization for compensation
- Servo-balanced, gold-plated XLR connectors for all inputs and outputs
- Ultra-high precision Alps potentiometer for ultimate accuracy and durability
- Shielded toroidal mains transformer for minimal noise interference
Tech Specs :
- Channels: Stereo
- Modes: 2-way stereo, 3-way stereo, 4-way mono
- Filter Types: Linkwitz-Riley
- Filters: 24 dB/Octave
- Crossover Frequencies: Variable ; 44Hz-930Hz, 440Hz-9.3kHz
- Inputs: 2 x XLR
- Outputs: 3 x XLR (CH 1), 3 x XLR (CH 2)
- Rack Spaces:1U
