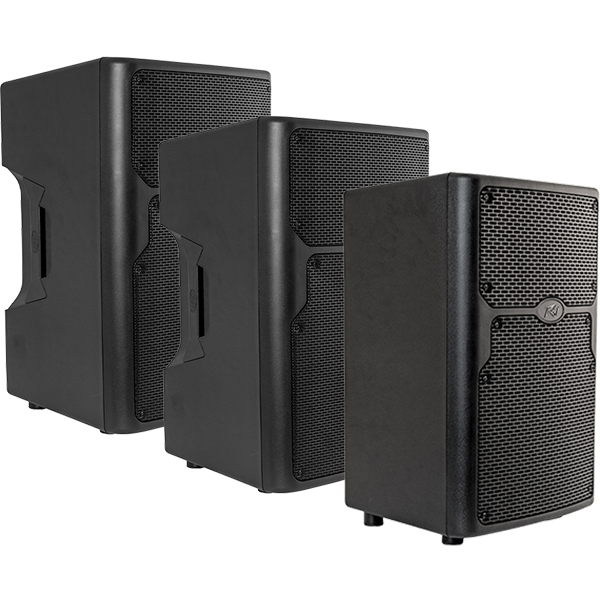

PEAVEY PVXp Series Powered Loudspeaker with DSP and Bluetooth (PVXp10 PVXp12 PVXp15)

PEAVEY PVXp Series Powered Loudspeaker with DSP and Bluetooth (PVXp 10 PVXp 12 PVXp 15)

PVXp series loudspeakers combine big power with advanced DSP and Bluetooth wireless connectivity to take your live sound to a new level of sonic performance.

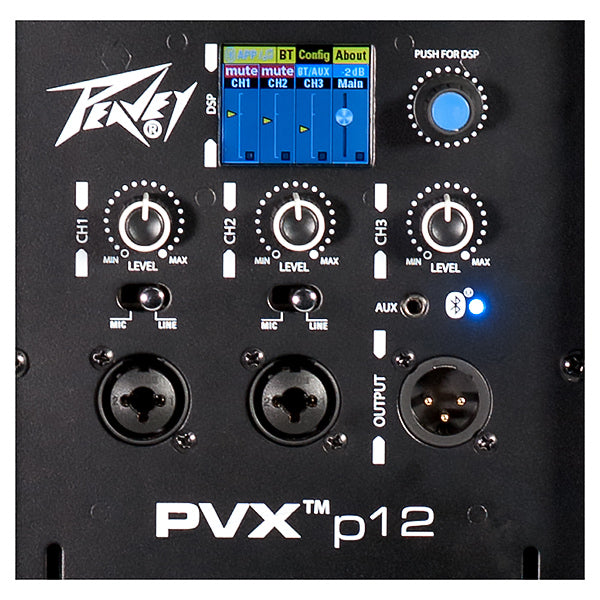

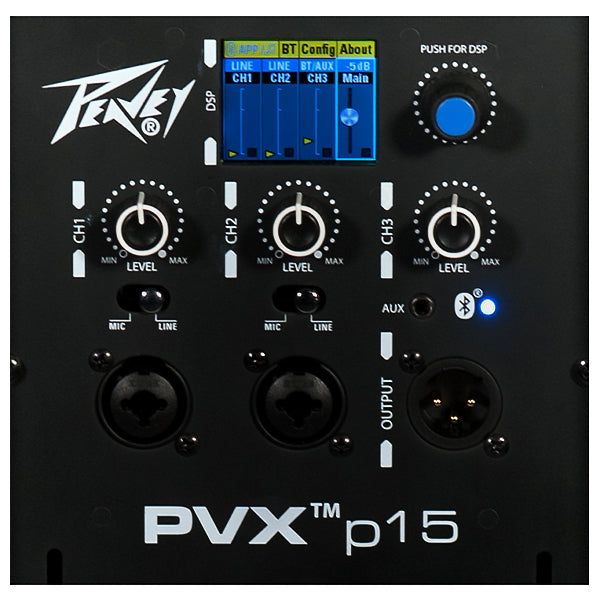

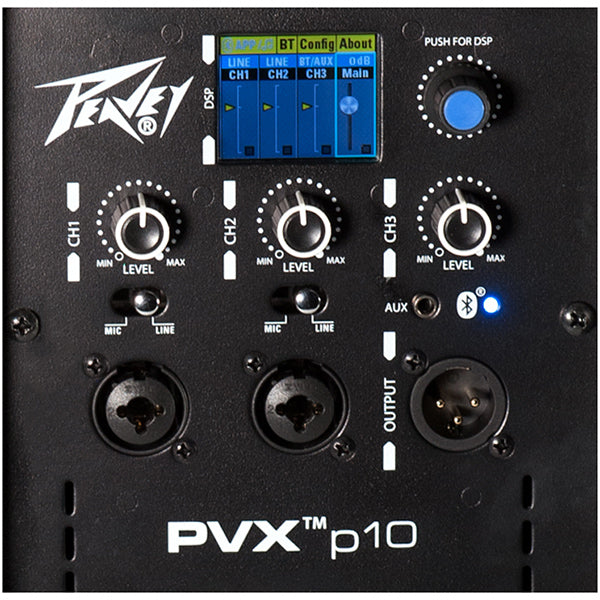

A switch is provided to change between line level gain and mic level gain. A third channel is for a Bluetooth source, or alternatively a 1/8" AUX input jack. Each channel has an adjustable Level control and a three-band EQ section. There is a balanced output, a Male XLR, that can feed the mixed signals from the three channels out to another component. A front baffle LED indicator that can be set to light when power is on, and when the "soft-limiting" DDT circuit is activated, or it can be turned off altogether. The LCD display and EQ presets, along with other DSP operating parameters are accessed via a one-knob selector.

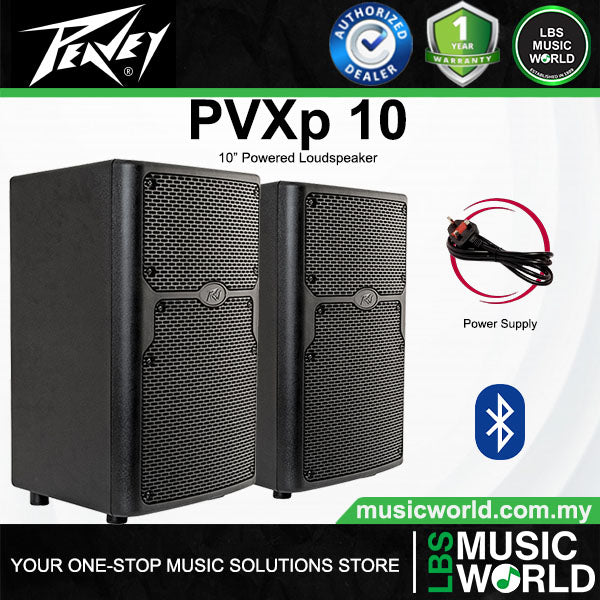

Peavey PVXp 10

• Driver & Woofer: RX™10 compression driver with a 1-inch titanium diaphragm and a 10" heavy-duty woofer (2 3/8" voice coil, 50 oz. magnet).
• Power Output: 520W total peak dynamic power.
• Coverage Pattern: 100° x 60° coverage.
• Dimensions: 22.441" x 15.945" x 14.37" (57 x 40.5 x 36.5 cm)
• Weight: 34.18 lb (15.5 kg)

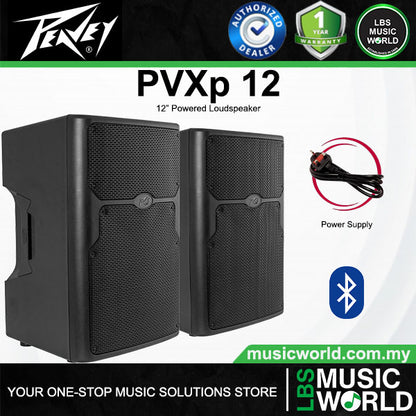

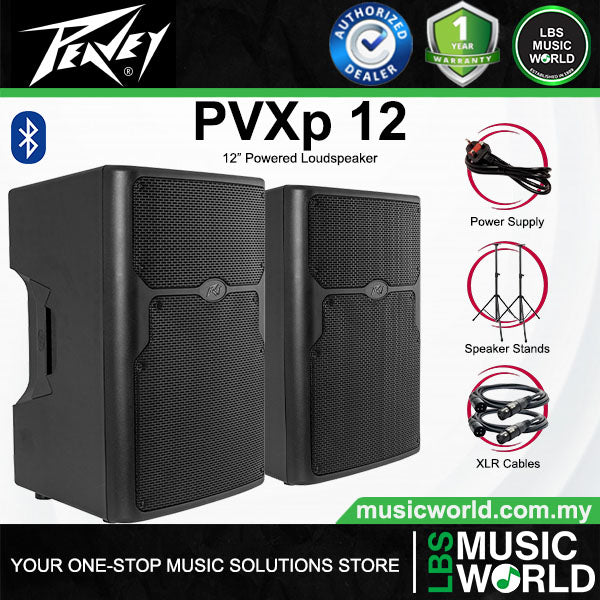

Peavey PVXp 12

• Driver & Woofer: RX14™ compression driver with a 1.4-inch titanium diaphragm and a 12" heavy-duty woofer (2 3/8" voice coil, 50 oz. magnet).
• Power Output: 980W total peak dynamic power.
• Coverage Pattern: 100° x 50° coverage.
• Dimensions: 26.75" x 20" x 18.25" (67.95 x 50.8 x 46.36 cm)
• Weight: 46.97 lb (21.3 kg)

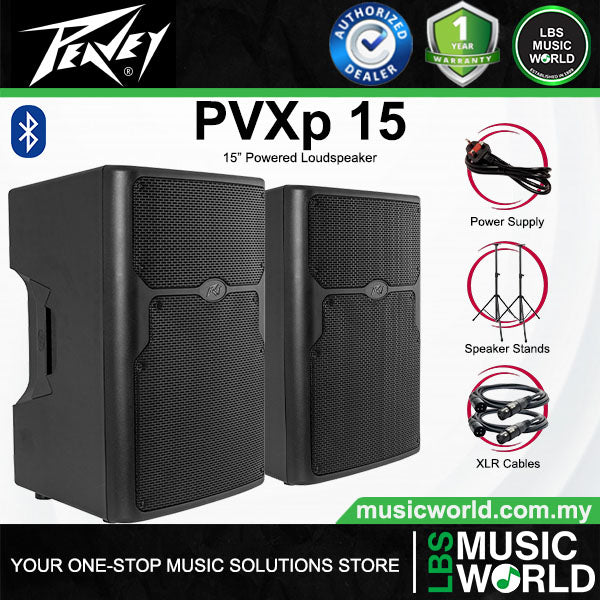

Peavey PVXp 15

• Driver & Woofer: RX14™ compression driver with a 1.4-inch titanium diaphragm and a 15" heavy-duty woofer (2 3/8" voice coil, 50 oz. magnet).
• Power Output: 980W total peak dynamic power.
• Coverage Pattern: 100° x 50° coverage.
• Dimensions: 31.625" x 21.625" x 20.375" (80.33 x 54.93 x 51.75 cm)
• Weight: 57.11 lb (25.9 kg)

Features:

• Amplification & Power: Reliable fan-cooled power amps with DSP protection and precise crossover, EQ, and limiting functions.
• DSP Processing: 48 kHz / 24-bit DSP I/O with 56-bit double-precision internal processing.
• Inputs & Controls: Three total channels (two analog via combo female XLR and 1/4" TRS jacks, plus one dedicated channel for Bluetooth or 1/8" AUX input). Each channel features independent level control and a 3-band EQ section.
• Outputs: Mix/Thru Output via a male XLR jack.

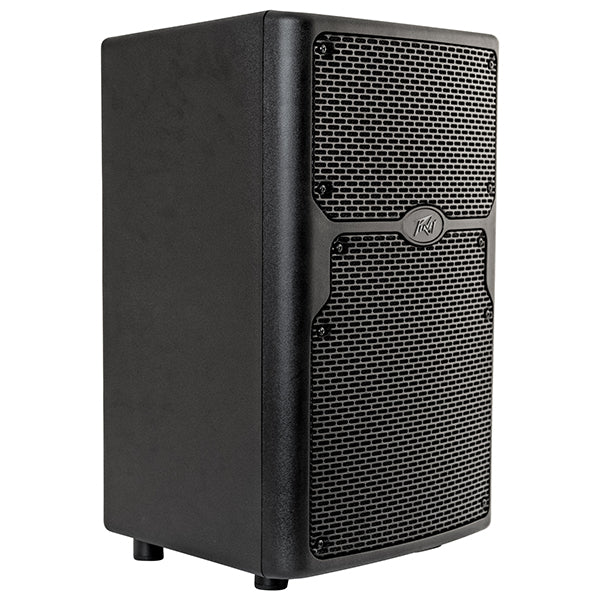

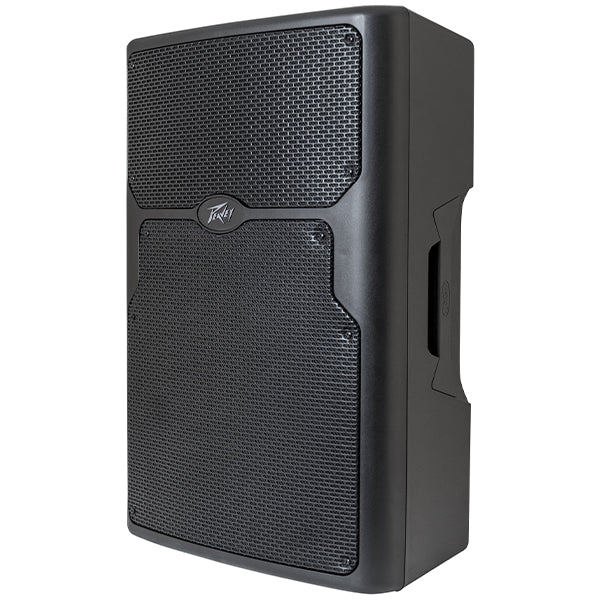

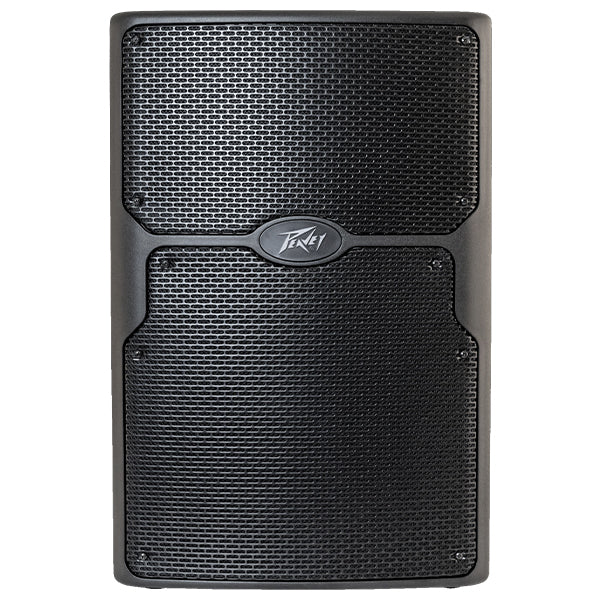

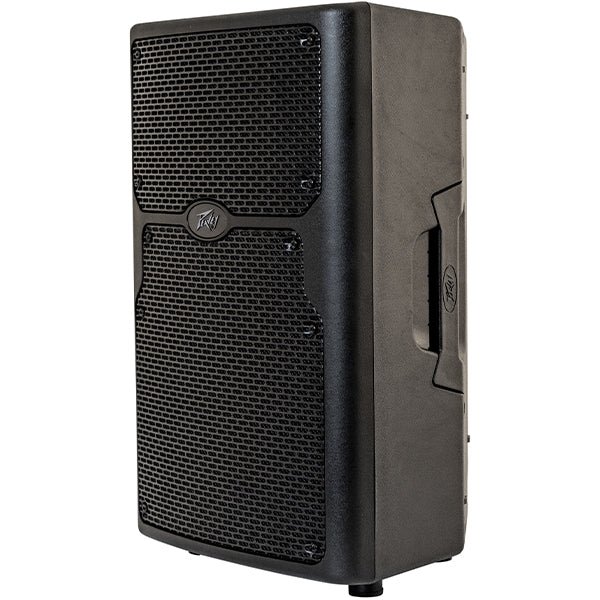

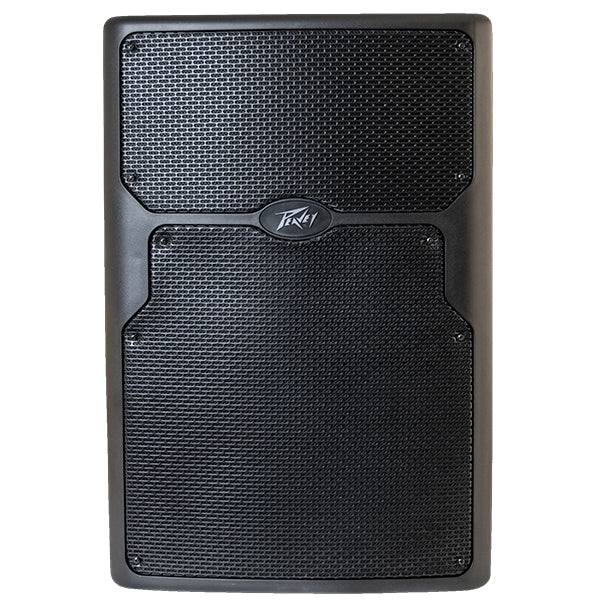

• Cabinet & Design: Durable plastic injection-molded trapezoidal enclosure with an extra angled section on the right side for floor monitor use, a molded-in pole mount for 1 3/8" poles, and a full-coverage heavy-duty perforated steel grille with a powder-coat finish.
• Waveguide Technology: Peavey's Quadratic Throat Waveguide™ with an asymmetrical horn that aims sound down 10 degrees toward the audience.
