N-Audio DI-20 Dual Channel Active Direct Box Splitter (DI20 DI 20)
SKU:N-Audio-DI-20-Black
Share

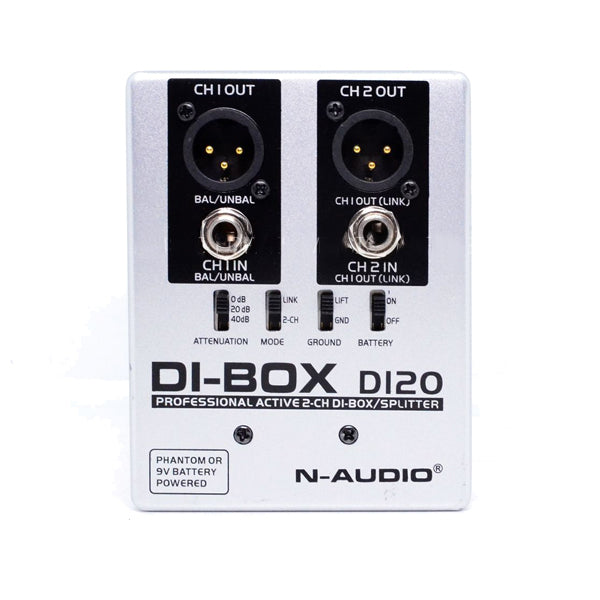

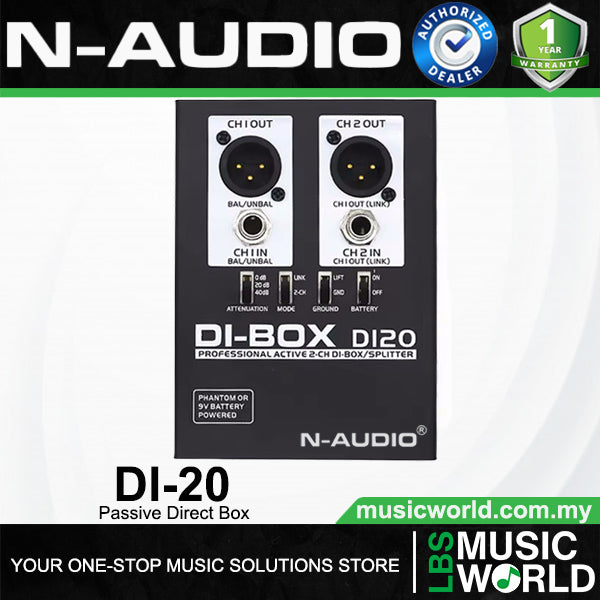

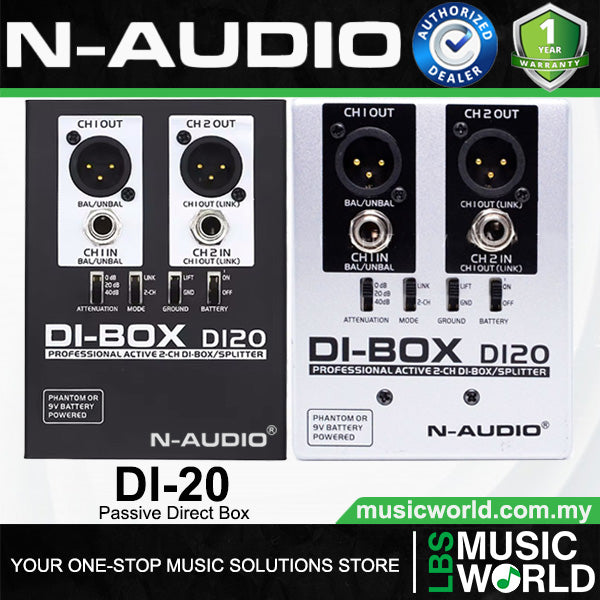

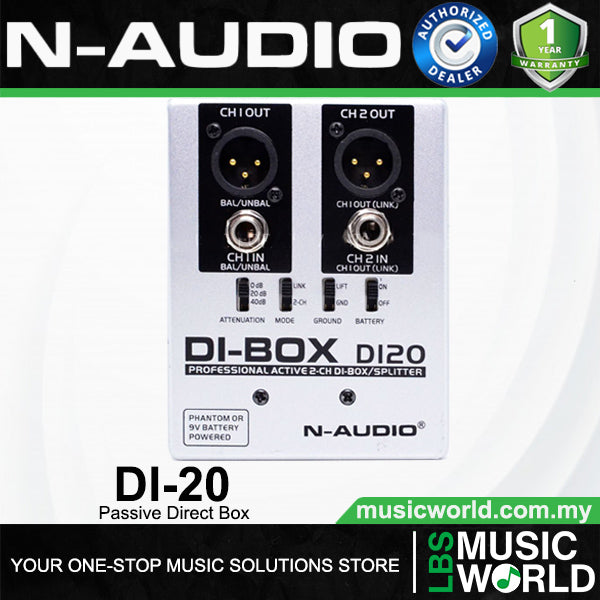

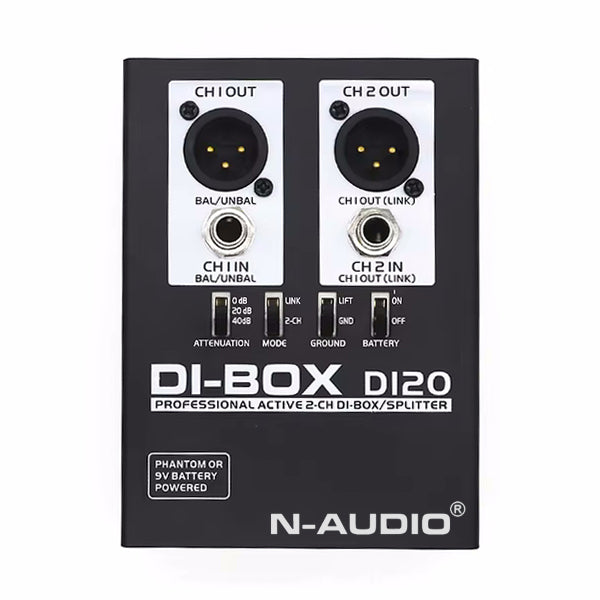

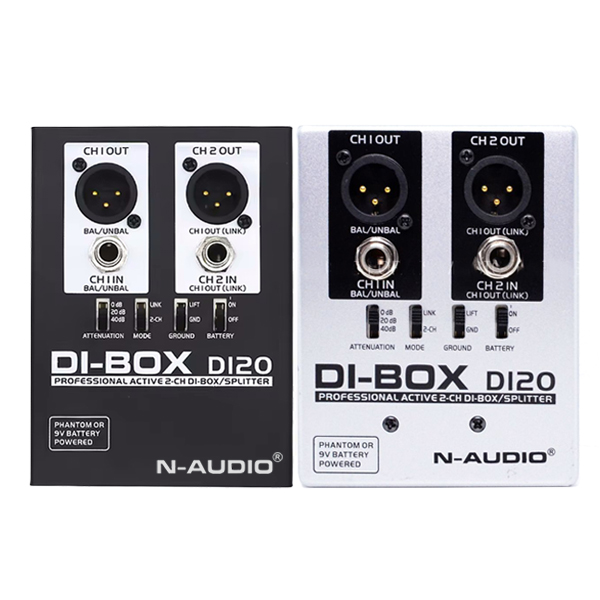

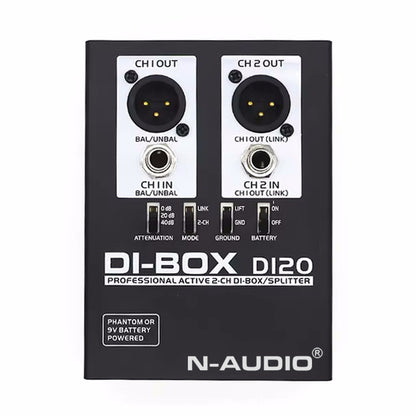

N-Audio DI-20 Dual Channel Active Direct Box Splitter (DI20 DI 20)
By flipping a switch, you can use the DI20 as a launching pad for two separate mono signals, a stereo signal – or a split-signal feeding two separate amps. The DI20 also features a superb ground-lift switch, and the 3-position input attenuator can accommodate input levels of up to +48 dBu. This handy built-in attenuator also allows you to connect directly to your amplifier’s speaker outputs, even amps rated as high as 3,000 Watts. You can power the DI20 with either a 9 V battery or your mixer’s phantom power supply (+18 to +48 V DC). The whole package is wrapped in an ultra compact, road-suitable and rugged metal housing.
Features :
- Professional and multi-purpose direct injection box for stage and studio applications
- Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers
- Converts 2 independent unbalanced 1/4'' TRS line inputs into 2 balanced XLR outputs
- Additional Split mode (channel 1 assigns signal to both XLR outputs)
- Ultra-flat frequency response due to servo-balanced operation
- Internal battery automatically shuts off when phantom power is applied
- Allows direct connection to speaker outputs with up to 3,000 Watts
- Ground Lift switch eliminates typical ground loop problems
