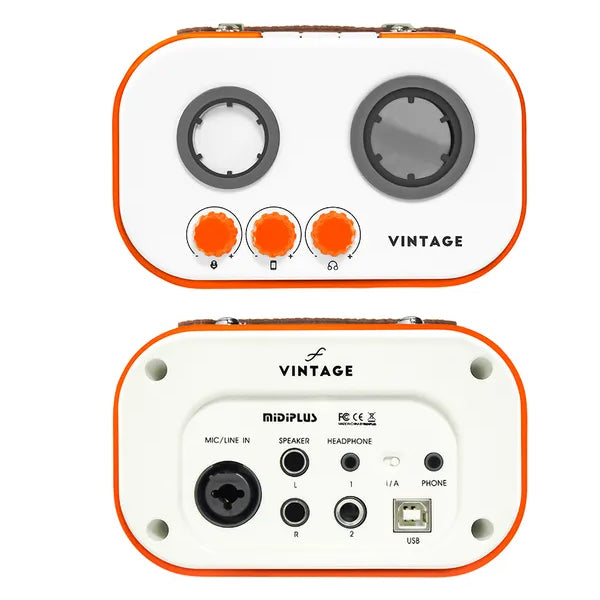

Midiplus VINTAGE Series USB Audio Interface and Routing System

Midiplus VINTAGE Series USB Audio Interface and Routing System

Vintage is a member of Midiplus Fancy Series products. It is a brand new way to express audio interface designed for fashion multimedia geeks. Big-small eye shaped design is inspired by tape. We especially set an electrical level screen to make interactions with users, let them keep in touch with this cute buddy. With the spirit of classic revives, we are looking for a new possibility to mix retro elements with modern ways for the pro audio-entertainment crossed boundary market.

Specifications :

• Name : Vintage
• Sampling rate : 24 Bit/192KHz

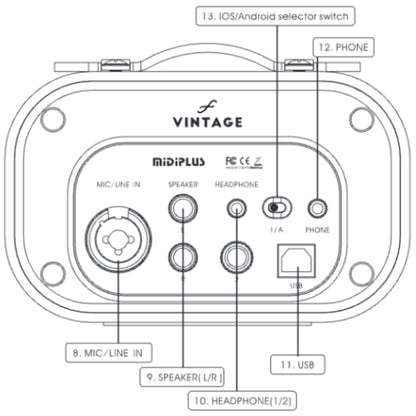

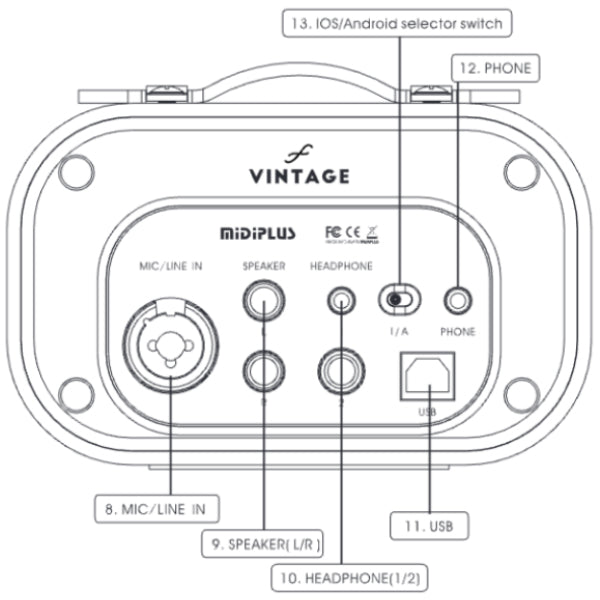

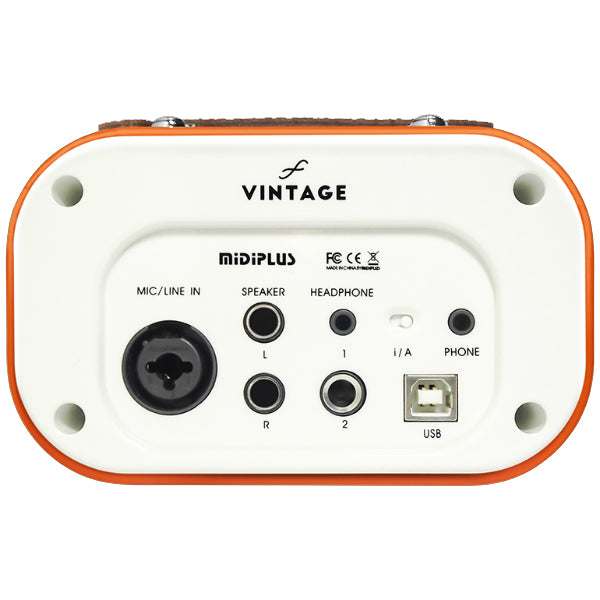

• Input Interface : One XLR + TRS interface combo
• Output Interface : Two 6.35mm parallel output interface, two headphone output interface
• Other Interface : One 4 segment 3.5mm interface (L as output, LR as input)
• USB Interface One : USB 2.0 interface
• Phantom power supply : 48V

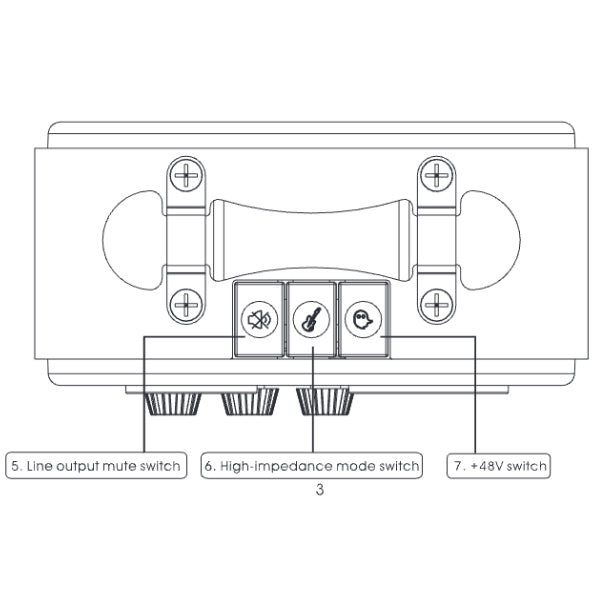

• Switch/Button : Line-out mute button, LINE/INST switch button, 48V phantom power supply button, IOS/Android selector switch
• Knobs : One input gain control knob, one PHONE input volume control knob, one headphone volume control knob
• Display : TFT LED Display
• Power Supply : USB 5V power
• Dimension : 210 x 110 x 146 mm
• Accessories : USB cable, quick start manual, brand info card, publicity paper, exquisite sticker
