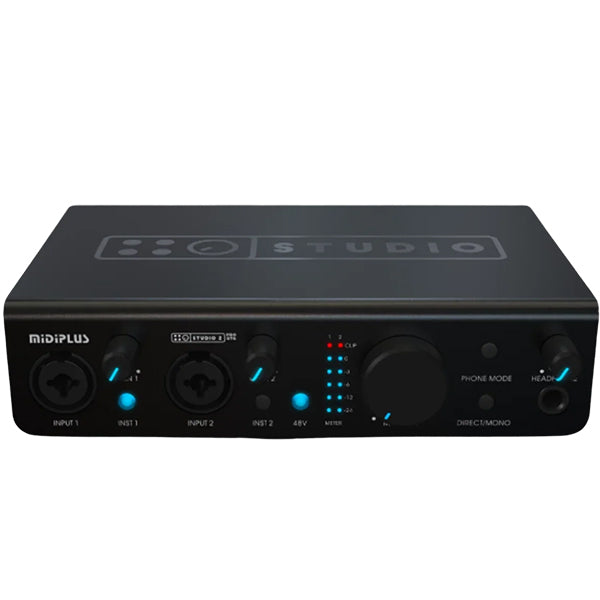

Midiplus Studio Pro OTG Series USB Audio Interface (Studio Valve Studio M Studio S Studio 2 Studio 4)

Midiplus Studio Pro OTG Series USB Audio Interface (Studio Valve Studio M Studio S Studio 2 Studio 4)

Studio Pro Otg
Studio Pro OTG Series is a brand-new upgrade audio interface by Studio Pro Series, with a 24-bit/192kHz high-precision converter and pure amplifier input, present the original sound to you. Simple panel design, intuitive directly input and output level meter, allow you to control your voice easily. Studio Pro OTG Series adopts the aluminum alloy panel and metal bottom shell structure, which is an indispensable solid backing for your personal studio.

Amazing sound detail
Studio Pro OTG features a high resolution 24-bit/192kHz AD/DA converter, it provides you with amazing sound details while ensuring efficient conversion.

High quality microphone preamp
Studio Pro OTG feature high quality preamps, independent gain control with dual color indicator, you can control the input level intuitively when you connect a microphone, instrument or line device.

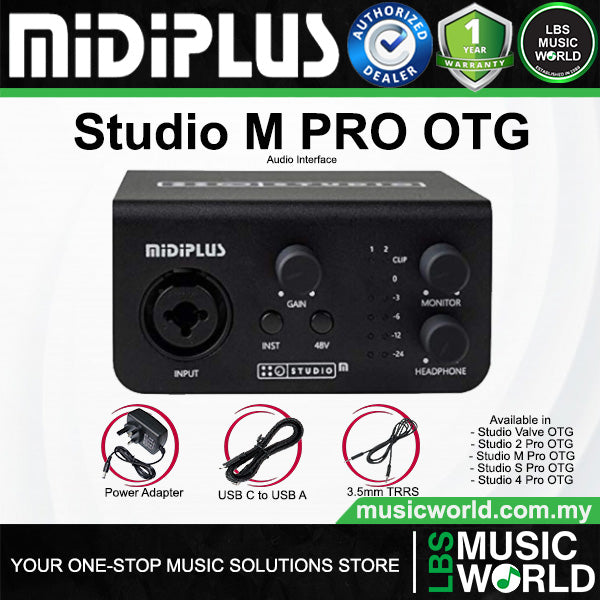

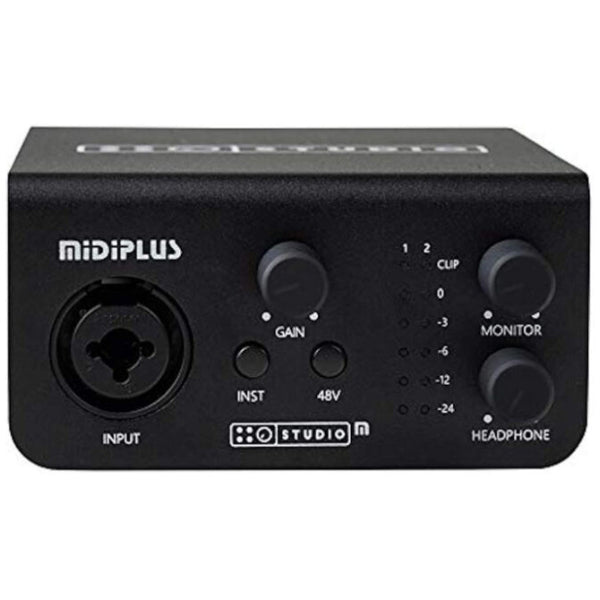

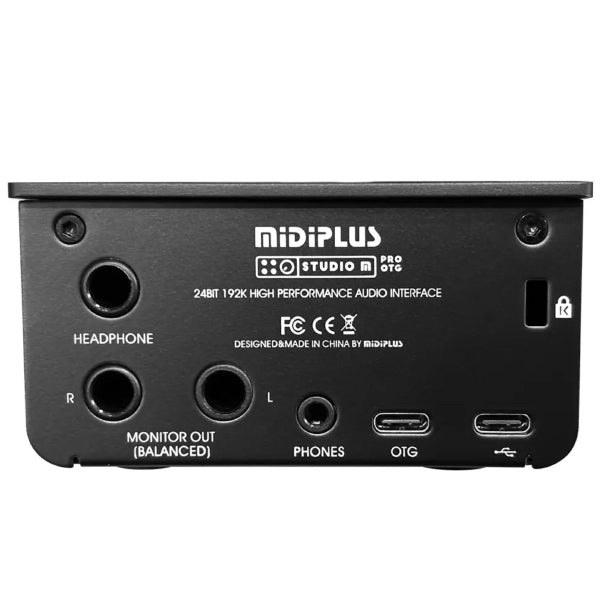

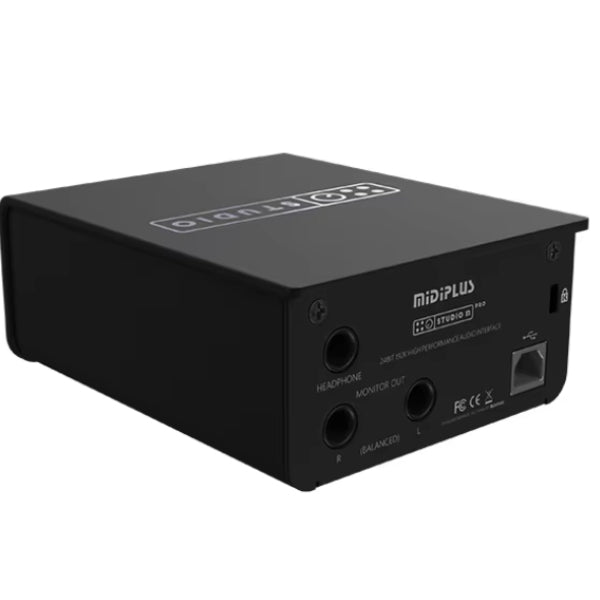

Studio M Pro OTG
1 combo jack With a 48V phantom/instrument power switch, you can connect a microphone, instrument or line device.

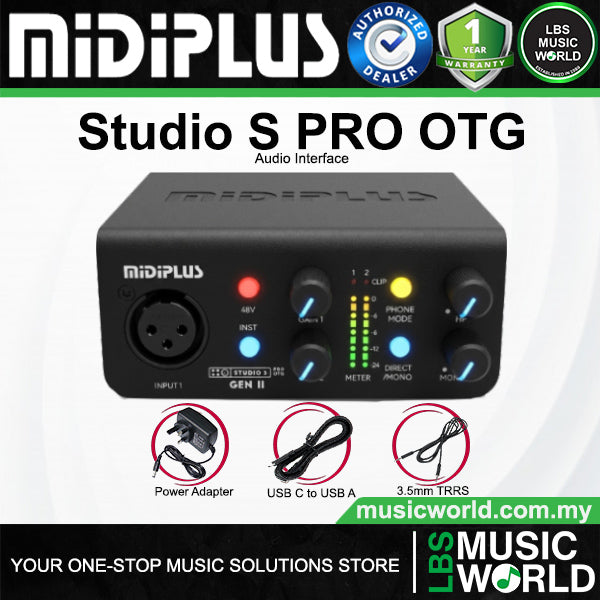

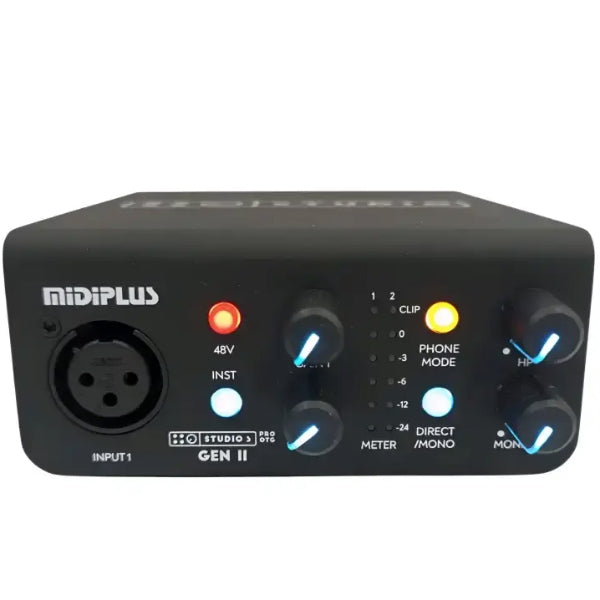

Studio S Pro OTG
XLR input with 48V phantom power switch and TRS input support mic/instrument/line.

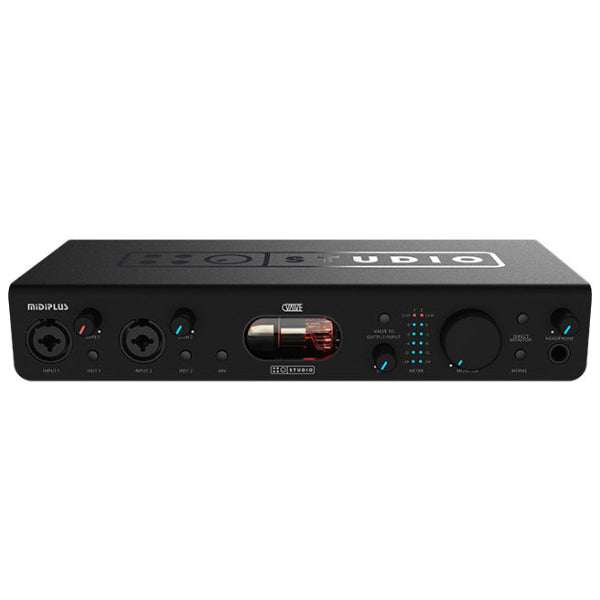

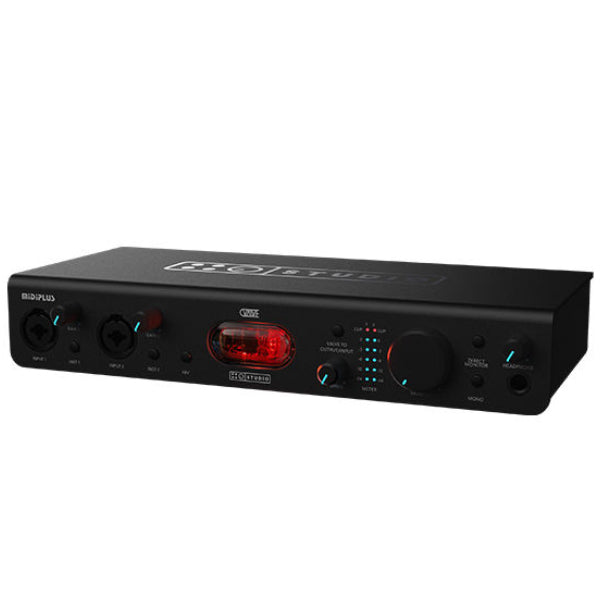

Studio Valve Pro OTG
2 combo jack with a 48V phantom/instrument power switch, you can connect a microphone, instrument or line device.

Independent headphone volume control
Studio Pro OTG offer an independent headphone volume control. You can hear the different volume between Monitor and Headphone.

Flexible direct monitoring control
Studio Pro OTG (without Studio M Pro OTG) used direct monitoring mode switch, The direct monitoring mode switch can switch Mono/Stereo direct monitoring mode quickly.

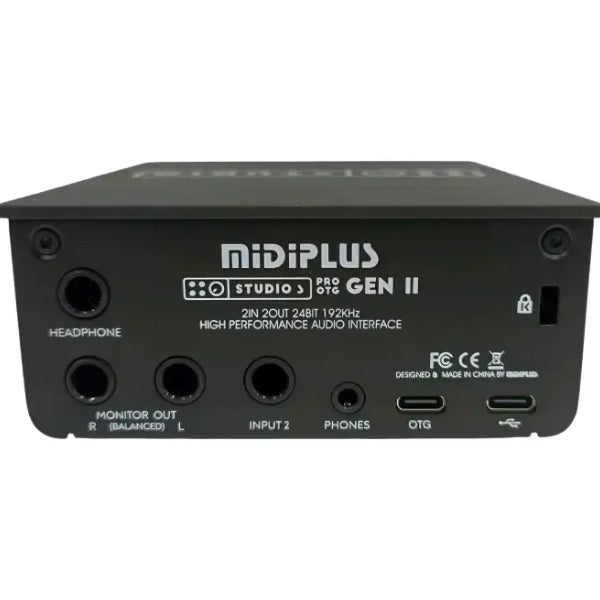

Studio Pro OTG series audio interface built-in OTG port, you can transfer high quality sound to your phone.

High-quality OTG port
Studio M Pro OTG/Studio S Pro OTG/Studio 2 Pro OTG/Studio 4 Pro OTG.

The OTG and Phone jack support up to 2 mobile phones for live streaming at the same time.
The Phone MODE button can change the OTG/PHONE jack I/O type for easily deal with a variety of live broadcast.

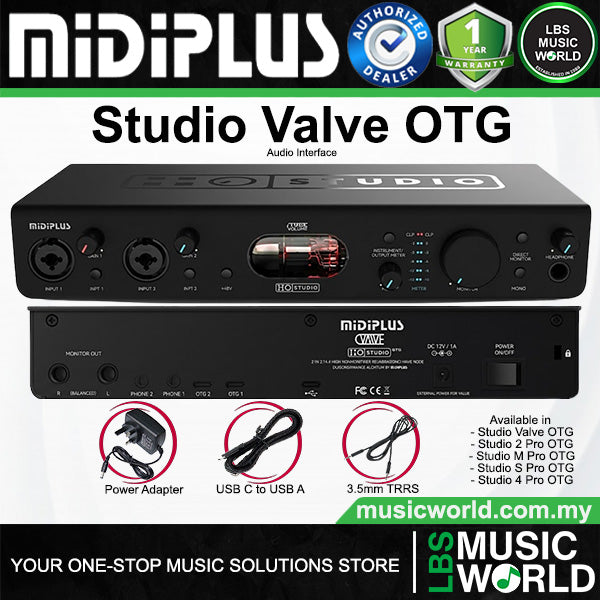

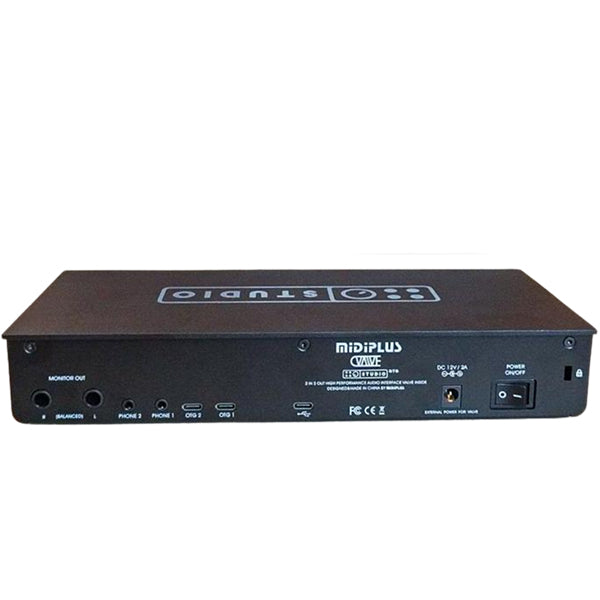

Studio VALVE OTG

• Dual OTG and dual Phone jack.
• Support up to 4 mobile phones for live streaming at the same time.
• Let you easily deal with a variety of live broadcast or live recording.

Specifications :

Studio M Pro OTG GEN II

• Mic input 1 (balanced): thd+n <0.0008% (-102db), dynamic range 110db, gain range -8.5db ~ +50.7db, max input level +8.5dbu.
• Line input 1 (balanced): thd+n <0.0010% (-100db), dynamic range 110db, gain range -22db ~ +37.2db, max input level +22dbu.
• Instrument input 1 (unbalanced): thd+n <0.0093% (-80.63db), dynamic range 107db, gain range -12db ~ +47.2db, max input level +12dbu.
• Analog output 1/2: max output level 12.2dbu, thd+n <0.0010% (-100db), dynamic range 105db.

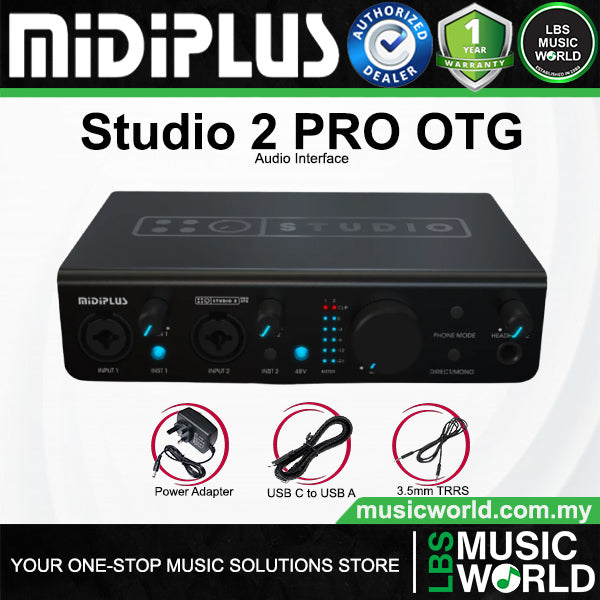

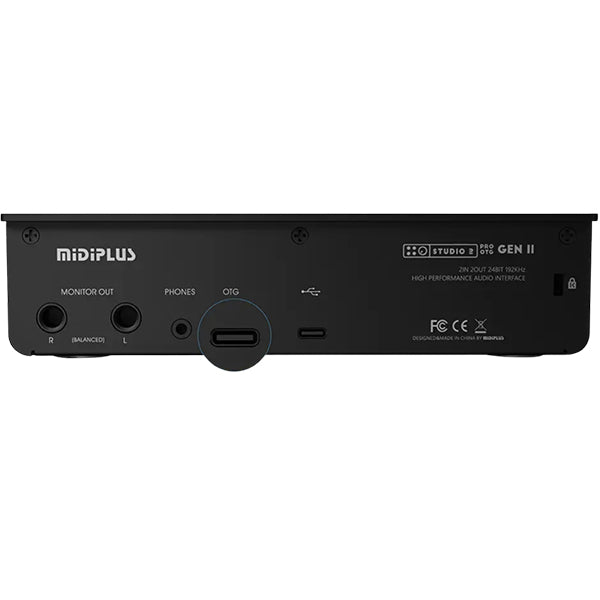

Studio 2 Pro OTG GEN II

• Mic input 1 (balanced): thd+n <0.0008% (-102db), dynamic range 110db, gain range -8.5db ~ +50.7db, max input level +8.5dbu.
• Line input 1 (balanced): thd+n <0.0010% (-100db), dynamic range 110db, gain range -22db ~ +37.2db, max input level +22dbu.
• Instrument input 1 (unbalanced): thd+n <0.0080% (-81.9db), dynamic range 107db, gain range -12db ~ +47.2db, max input level +12dbu.
• Analog output 1/2: max output level 12.2dbu, thd+n <0.00125% (-98db), dynamic range 105db.

Studio S Pro OTG GEN II

• Mic input 1 (balanced): thd+n <0.0008% (-102db), dynamic range 110db, gain range -8.5db ~ +50.7db, max input level +8.5dbu.
• Line input 1 (balanced): thd+n <0.0010% (-100db), dynamic range 107db, gain range -22db ~ +37.2db, max input level +20dbu.
• Instrument input 1 (unbalanced): thd+n <0.0098% (-80.17db), dynamic range 107db, gain range -12db ~ +47.2db, max input level +12dbu.
• Analog output 1/2: max output level 12.2dbu, thd+n <0.0011% (-99db), dynamic range 105db.

Studio Valve OTG

• Mic input 1 (balanced): thd+n <0.0013% (-97.7db), dynamic range 107.5db, gain range -8.5db ~ +50.7db, max input level +9.5dbu.
• Line input 1 (balanced): thd+n <0.0015% (-96.5db), dynamic range 107db, gain range -20db ~ +36db, max input level +20dbu.
• Instrument input 1 (unbalanced): thd+n <0.0070% (-83.1db), dynamic range 104.5db, gain range -10.5db ~ +46db, max input level +10.5dbu.
• Analog output 1/2: max output level 12.2dbu, thd+n <0.0010% (-100db), dynamic range 105db.

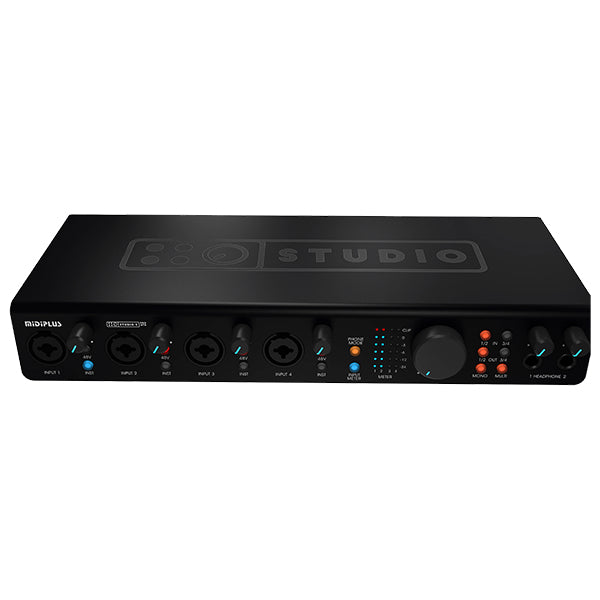

Studio 4 Pro OTG

• Mic input 1 (balanced): thd+n <0.0011% (-98.854db), dynamic range 110.58db, gain range -8.76db ~ +50.5db, max input level +8.76dbu.
• Line input 1 (balanced): thd+n <0.0012% (-98.15db), dynamic range 109.39db, gain range -22.301db ~ +36.399db, max input level +22.301dbu.
• Instrument input 1 (unbalanced): thd+n <0.0083% (-81.528db), dynamic range 107.24db, gain range -12.122db ~ +46.651db, max input level +12.122dbu.
• Analog output 1/2: max output level 12dbu, thd+n <0.0009% (-100.776db), dynamic range 108.727db.
