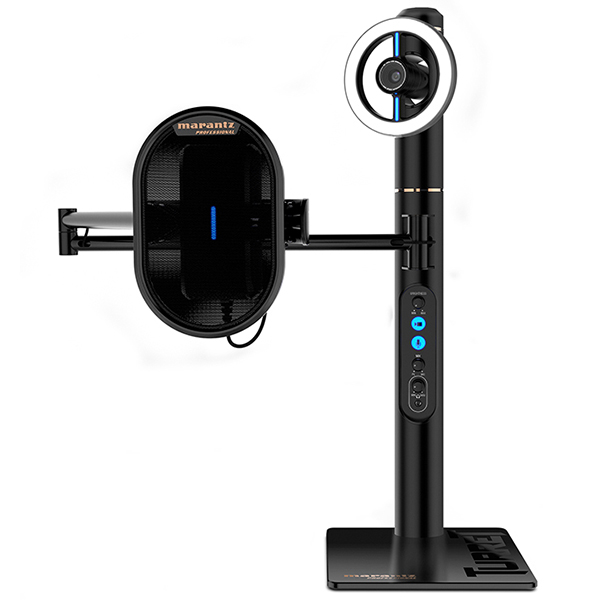

Marantz Professional Turret Broadcast Video Mic Streaming System with Build in Full HD Camera, Microphone and Light

Marantz Professional Turret Broadcast Video Mic Streaming System with Build in Full HD Camera, Microphone and Light

The Turret delivers a unique, easy-to-use solution for users who need for a complete high-performance equipment system for streaming and podcasting. The Turret has a full HD webcam with built-in H.264 video compression, a high-quality 48kHz/16-bit USB condenser microphone with pop filter and an LED light ring, daylight-balanced, with both cool and warm filter accessories.

The Marantz Professional Turret is a unique, all-in-one broadcast tool that gives any podcaster, gamer or live internet streamer high-quality components with a multitude of configurations for creating a professional presentation. It’s compact and simple, perfect on a desktop and portable enough to take on location.

To make the system truly self-contained and capable of handling any streaming/podcast/gaming task without the need for additional equipment, Turret has a high-speed USB-C computer output for low latency and an internal USB hub. There is even an onboard headphone amplifier so audio monitoring is a snap. Everything the demanding streaming/broadcasting enthusiast needs is right here, in one convenient, high-performance package.

The camera is an auto-focus design, with Full HD 1080p video (up to 1920 x 1080 pixels) compatible with the latest version of Skype. It supports full HD video recording (up to 1920 x 1080 pixels). It has automatic low-light correction and is compatible with Windows® 7, Windows 8, Windows 10 or later as well as Mac OS 10.6 or later (HD 720p on FaceTime for Mac or other supported video-calling clients; Full HD 1080p video recording with QuickTime Player)

The microphone is also an extremely high performance unit. It’s a condenser design, with a 14mm diameter back electret condenser, sensitivity of -34dB ± 2dB (0dB = 1V/Pa @ 1kHz), max SPL of 132dB (THD: 0.5% 1kHz) and a wide-range frequency response of 150 - 15kHz. For the utmost in user convenience, the preamp is integrated with the microphone gain control on the tower. Users can directly monitor the microphone signal while recording/streaming, without the delay of monitoring through the computer’s headphone output. The headphone output – with level control - is located on the tower.

Camera
Multi-step auto focus
Diagonal field of view: 78°
Optical resolution: 2MP native
Full HD 1080p video (up to 1920 x 1080 pixels) recording
Frame rate: 30 fps/1080p, 30 fps/720p
H.264 video compression, M-JPEG compatible
ON/OFF switch
Automatic low-light correction
Compatible with Windows® 7, 8, 10 & Mac OS 10.6 or later
Operates in USB Video Device Class (UVC) mode
USB 2.0 – Class 2 Compliant Driver

USB Microphone
Electret condenser capsule: 14mm diameter
Sensitivity: -34dB ± 2dB (0db = 1V/Pa @ 1KHZ)
Output impedance: 100 Ω ± 30% (@ 1kHz)
Polar pattern: Cardioid
Pad Switch: 0 dB / -10 dB
Sample rate: 32 kHz / 44.1 kHz / 48 kHz @16-bit
USB 2.0 Class Compliant
Frequency response: 150 Hz - 15 kHz
Equivalent noise level: < 12 dbA (A-weighted)
Self noise: < 12dBA
ON/OFF switch

Headphone Amplifier
Frequency Response: 20 Hz – 20 kHz
Output power: 130mW
Level control
3.5mm stereo output
Mix control to mix microphone audio with USB audio input

LED Light Ring
4" dimmable LED light ring
(30) wide-angle white LEDs @ 5600K
(3) accessory filters
Diffused daylight
Cool
Warm

USB
USB 1 & 2: (2) Type A USB 3.0, 0.75A total available current between two ports for powering devices
To PC: (1) USB-C connector / USB 3.0 connection
USB Audio In: Class 2 compliant speaker device for audio to be monitored in headphone output – set by user in the compute

Microphone Auxiliary Output
Fixed line-level output on 3.5mm TRS jack

Dimensions
With Arm fully in: 16.7" (424mm) Width including base (max)
With Arm fully out: 33.9" (860mm) Width including base (max)
Base Dimensions (width x length): 6.85" x 8.04" (174mm x 204mm)
Height with Extension: 19.6" (498mm)
Height without Extension: 17.7" (449mm)
Weight: 7.7 lbs (3.5 kg)

Power
AC-DC Power Supply
100 ~ 240 VAC compatible
12 VDC @ 1 Amp output
