Marantz Professional AVS Audio Video Streamer Broadcasting Live System Camera Mic with Build in Microphone, Camera and Light

Marantz Professional AVS Audio Video Streamer Broadcasting Live System Camera Mic with Build in Microphone, Camera and Light

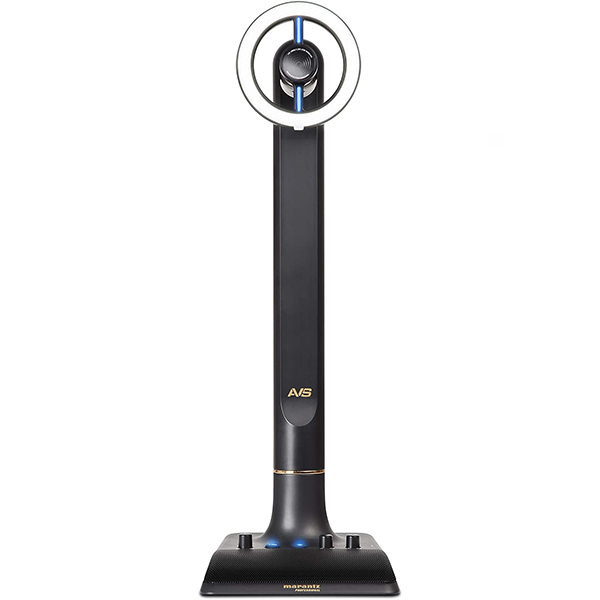

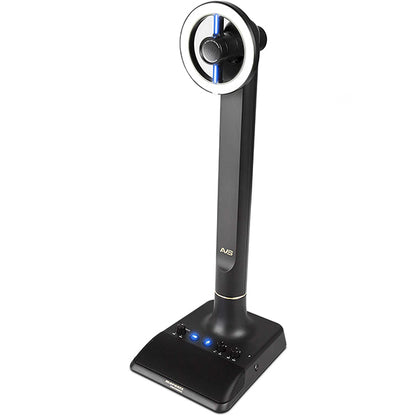

The Marantz AVS is an all-in-one broadcast system that offers the live streamer professional components in a compact, free-standing array.

The AVS features a full HD webcam compatible with H.264 video compression, a high-quality 48kHz/16-bit USB condenser boundary microphone conveniently integrated into the base of the unit, and an LED light ring, daylight-balanced, with both cool and warm filter accessories for the look of a studio production. The Marantz AVS is a unique, all-in-one broadcast tool that is designed for live-streaming, video calling and gaming applications. It is compact and simple, perfect on a desktop, and the lightweight design makes it portable enough to take on location.

Camera
Fixed-focus
CMOS Sensor
Diagonal field of view: 70 °
Optical resolution: 2MP native
Full HD 1080p video (up to 1920 x 1080 pixels) recording
Frame rate: 30 fps/1080p, 30 fps/720p
H.264 video compression
ON/OFF switch
Automatic low-light and white balance correction
Compatible with Windows® XP, 7, 8, 10, Mac OS X, LINUX, Android
Operates in USB Video Device Class (UVC) mode
USB 2.0 – Class 2 Compliant Driver

Boundary Microphone
Element: Back electret condenser
Polar pattern: Half-cardioid (cardioid in hemisphere above mounting surface)
Open Circuit Sensitivity: -44dB ± 3dB (0db = 1V/Pa @ 1KHZ)
Output impedance: 2.2 kΩ ± 30% (@ 1kHz)
Sample rate: 32 kHz / 44.1 kHz / 48 kHz @16-bit
Frequency response: 150 Hz - 10 kHz
Signal-to-Noise Ratio: >60 dB (1kHz @ 1% THD)
Max SPL: 100 dB
ON/OFF switch

Headphone Amplifier
Frequency Response: 20 Hz – 20 kHz
Output power: 130mW
Level control
3.5mm stereo output
Mix control to mix microphone audio with USB audio input

LED Light Ring
4" dimmable LED light ring
(30) wide-angle white LEDs @ 5600K
(3) accessory filters
Diffused daylight
Cool
Warm

USB
USB 1 & 2: (2) Type A USB 3.0, 0.75A total available current between two ports for powering devices
To PC: (1) USB-C connector / USB 3.0 connection
USB Audio In: Class 2 compliant speaker device for audio to be monitored in headphone output – set by user in the computer

Microphone Auxiliary Output
Fixed line-level output on 3.5mm TRS jack

Dimensions
Height: 19.1" (485mm)
Width: 7.39" (188mm)
Depth: 6.26" (159mm)Weight: 2.29 lbs (1.04kg)

Power
AC-DC power supply
100 ~ 240 VAC compatible
12 VDC @ 1 amp output
