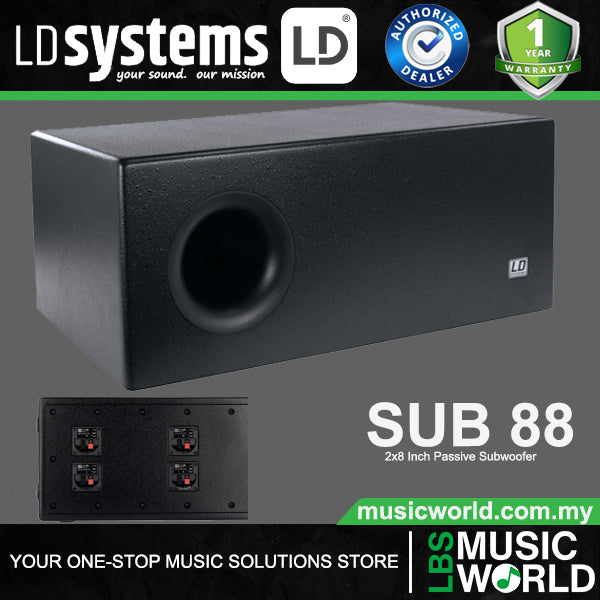

LD Systems SUB 88 180 Watt 2x8 Inch Installation Passive Subwoofer (SUB88 SUB-88)

LD Systems SUB 88 180 Watt 2x8 Inch Installation Passive Subwoofer (SUB88 SUB-88)

The LD Systems SUB 88 is a compact yet powerful dual 8-inch passive subwoofer designed to extend low-frequency performance in professional sound systems. Engineered for versatility, clarity, and controlled bass reproduction, it is an ideal solution for installations and portable PA setups that require tight, musical low-end reinforcement without the bulk of larger subwoofer systems.

With its dual 8-inch driver configuration, the SUB 88 delivers a well-balanced combination of punch and precision. It is specifically designed to enhance the low-frequency foundation of full-range loudspeakers, making it suitable for music playback, speech reinforcement, and general sound reinforcement applications. Whether used in fixed installations or mobile setups, the SUB 88 provides consistent and reliable bass performance in a compact enclosure.

The subwoofer offers a power handling capacity of 2 × 100 watts RMS and 2 × 180 watts peak, ensuring stable performance under continuous operation while still providing enough headroom for dynamic audio content. This dual-channel design allows each driver to operate efficiently, contributing to improved overall output and reduced distortion at higher volume levels. The result is clean, controlled bass reproduction that enhances the listening experience without overpowering the mid and high frequencies.

Covering a frequency range from 40 Hz to 120 Hz, the LD Systems SUB 88 is optimized for low-end reinforcement in a wide variety of audio environments. The lower frequency extension down to 40 Hz ensures that deep bass elements in music are clearly felt, while the upper limit of 120 Hz allows for smooth integration with full-range speakers. This makes the SUB 88 an excellent companion for satellite speakers in distributed sound systems, providing a seamless transition between frequency ranges and improving overall system balance.

With a peak sound pressure level of 114 dB, the SUB 88 is capable of delivering impactful bass performance even in medium-sized venues. Despite its compact size, it produces sufficient output to enhance live music, background audio systems, and presentation environments. The controlled SPL performance ensures that bass remains tight and accurate, avoiding excessive boominess while maintaining clarity and definition.

The subwoofer features an impedance of 2 × 8 ohms, providing flexible wiring and configuration options for system designers and installers. This dual impedance structure allows the drivers to be used independently or combined depending on the amplifier setup, offering greater adaptability for different system requirements. It is particularly useful in multi-speaker installations where system balancing and load distribution are important considerations.

One of the key advantages of the SUB 88 is its compact and space-efficient design. With dimensions of 600 x 250 x 350 mm, the subwoofer is easy to integrate into environments where space is limited. Its slim and low-profile form factor allows it to be discreetly positioned under stages, along walls, or within installation furniture without compromising acoustic performance. This makes it especially suitable for restaurants, bars, lounges, retail stores, conference rooms, and small entertainment venues where visual impact must be minimized while maintaining high-quality sound.

Weighing only 11 kg, the SUB 88 is lightweight and highly portable compared to many traditional subwoofer systems. This makes transportation and installation significantly easier, particularly for mobile DJs, event organizers, and rental companies. The reduced weight also simplifies wall or ceiling-adjacent installations where structural load considerations are important.

The LD Systems SUB 88 is designed to integrate seamlessly into a wide range of professional audio systems. It works particularly well as a bass extension for compact full-range speakers, helping to enhance overall system performance by offloading low-frequency reproduction from smaller loudspeakers. This not only improves sound clarity but also allows the entire system to operate more efficiently and at higher volume levels without distortion.

In installation environments, the SUB 88 provides a discreet yet effective solution for improving low-end response. Its compact design allows it to be hidden or integrated into architectural spaces, ensuring that audio performance is enhanced without affecting the visual aesthetics of the venue. This is especially valuable in hospitality and retail environments where design and atmosphere are key priorities.

The subwoofer’s controlled bass response ensures that audio remains precise and musical, rather than overwhelming or exaggerated. This makes it suitable not only for music playback but also for speech-enhanced environments where clarity and balance are essential. By reinforcing the lower frequency range, the SUB 88 helps create a more immersive and complete listening experience.

Whether deployed in permanent installations or mobile sound systems, the LD Systems SUB 88 delivers dependable performance, compact convenience, and professional-grade sound quality. Its combination of dual 8-inch drivers, efficient power handling, wide frequency response, and lightweight construction makes it a versatile and practical solution for a wide range of audio applications.

Features :

• Power: 2x 100/ 180 W (RMS/peak)
• Frequency range: 40 - 120 Hz
• Peak SPL: 114 dB
• Impedance: 2x 8 Ohm
• Dimensions: 600 x 250 x 350 mm
• Weight: 11 kg
