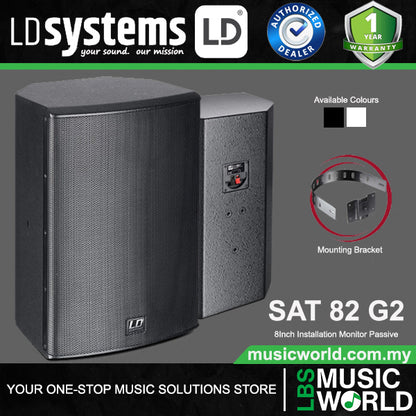

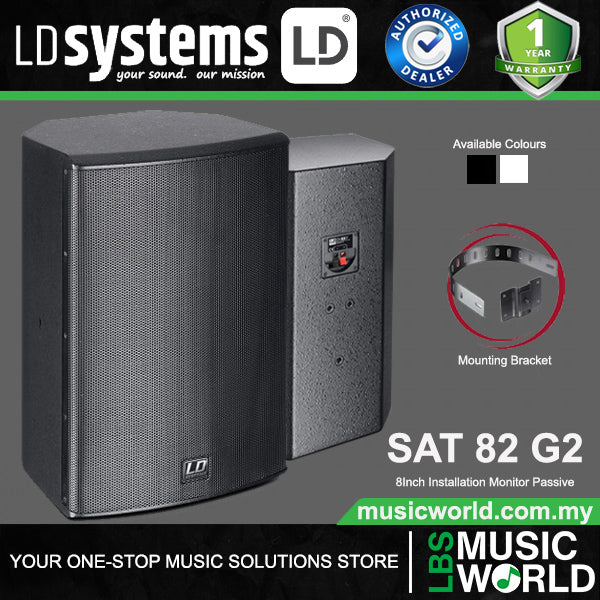

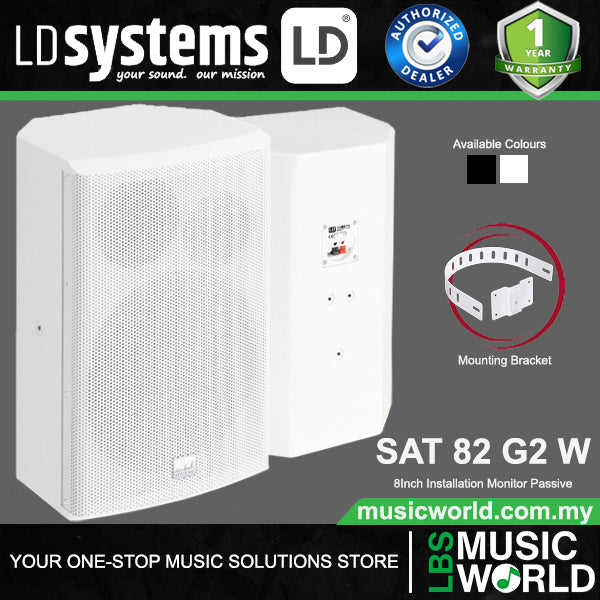

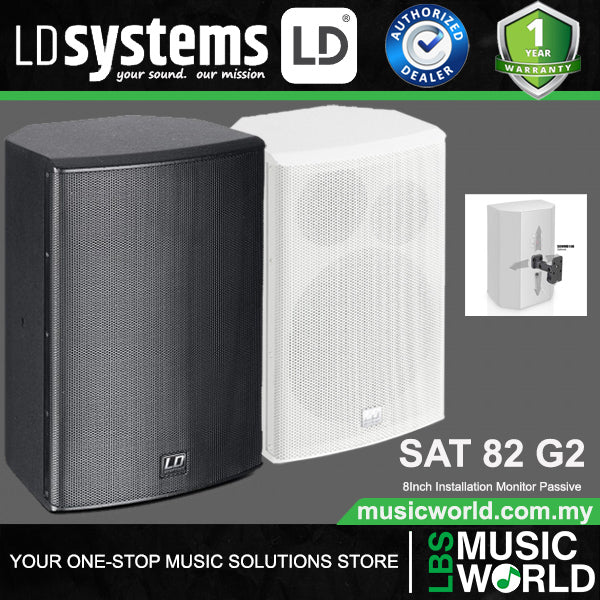

LD Systems SAT 82 G2 120 Watt 8 Inch Installation Monitor Passive with 2 Way Speaker (SAT82 G2 SAT82-G2)

LD Systems SAT 82 G2 120 Watt 8 Inch Installation Monitor Passive with 2 Way Speaker (SAT82 G2 SAT82-G2)

The LD Systems SAT 82 G2 is a high-performance installation loudspeaker designed for professional fixed audio systems where clarity, reliability, and consistent sound coverage are essential. Engineered as a wall-mounted loudspeaker, it combines robust construction with carefully tuned acoustic performance, making it an excellent choice for a wide range of commercial and public address applications.

Built around a powerful 8-inch low/mid driver (203 mm), the SAT 82 G2 delivers solid and well-defined midrange performance together with controlled low-frequency reproduction. The woofer features a ferrite magnet and is custom-made to ensure consistent output and long-term reliability under continuous operation. This makes the loudspeaker particularly suitable for environments where background music and speech clarity must be maintained throughout extended operating hours.

Complementing the woofer is a 1-inch (25 mm) high-frequency driver, also equipped with a ferrite magnet and custom-made design. This HF driver ensures detailed and articulate high-frequency reproduction, allowing vocals, announcements, and music to remain clear and intelligible even in acoustically challenging environments. The integration of both drivers results in a balanced full-range sound system capable of delivering professional audio quality in both speech and music applications.

The SAT 82 G2 is designed with a controlled dispersion pattern of 60° x 60°, ensuring focused and consistent sound coverage. This directional performance helps reduce unwanted reflections while improving intelligibility in targeted listening areas. It allows installers to precisely aim sound where it is needed most, making it ideal for installations in corridors, retail spaces, restaurants, conference rooms, and hospitality environments where controlled coverage is critical.

With a load rating of 120 watts RMS, the SAT 82 G2 offers strong and stable performance suitable for demanding installation environments. It is capable of delivering a maximum sound pressure level of 114 dB, ensuring that audio remains clear and present even in larger or noisier spaces. The sensitivity rating of 93 dB (1W/1m) contributes to efficient sound output, allowing the speaker to achieve high performance with relatively low amplifier power requirements.

The frequency response range of 50 Hz to 20 kHz provides full-range audio reproduction, ensuring that both deep tonal elements and high-frequency details are accurately represented. This wide frequency range makes the SAT 82 G2 suitable for both background music systems and voice reinforcement applications, delivering consistent performance across a variety of audio content types.

Designed for professional installation use, the speaker features an 8-ohm impedance, allowing flexible integration into standard low-impedance audio systems. This makes it compatible with a wide range of amplifiers and system configurations, providing installers with greater flexibility when designing multi-speaker setups.

The SAT 82 G2 includes a single loudspeaker input with clamp connector terminals, ensuring secure and reliable wiring during installation. The clamp connector system allows for quick and efficient connection while maintaining a stable electrical contact, reducing the risk of signal loss or disconnection over time. This simplifies installation while maintaining professional-grade reliability.

In larger distributed audio systems, the SAT 82 G2 is designed to support multiple speakers per amplifier channel when used with compatible DSP amplifiers such as the DSP44/45K series, allowing up to four speakers per channel. This capability makes it highly efficient for scalable installations, enabling system designers to cover larger areas without requiring excessive amplification hardware.

Protection and durability are also key aspects of the SAT 82 G2 design. The high-frequency driver includes built-in protection circuits to safeguard against overload conditions, helping to extend the lifespan of the speaker and ensure reliable long-term operation. This is particularly important in commercial environments where audio systems are expected to run continuously and consistently.

As a wall-mounted installation loudspeaker, the SAT 82 G2 is engineered for stability, ease of placement, and optimal acoustic positioning. Its design allows it to be securely mounted in fixed installations where consistent sound coverage is required. This makes it suitable for a wide variety of environments, including retail stores, restaurants, bars, lounges, hotels, office buildings, educational facilities, and public venues.

The combination of robust build quality, custom-engineered drivers, and carefully tuned acoustic performance ensures that the SAT 82 G2 delivers dependable sound reproduction in both speech and music applications. Whether used for background music distribution, paging systems, or general sound reinforcement, it provides consistent clarity and professional audio quality.

Overall, the LD Systems SAT 82 G2 stands out as a versatile and reliable installation loudspeaker designed for demanding commercial environments. Its combination of powerful 8-inch woofer, precise 1-inch HF driver, controlled dispersion pattern, and high RMS power handling makes it an excellent solution for integrators seeking dependable wall-mounted audio systems.

Features :

• Product type: Installation Loudspeakers
• Type: Wall-mounted Loudspeaker
• Low/mid driver dimensions: 8 “
• Woofer size: 203 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• HF driver dimensions: 1 “
• HF driver size: 25 mm
• HF driver magnet: Ferrite
• HF driver brand Custom-made
• Dispersion (H x V): 60 x 60 °
• Load rating (RMS): 120 W
• Frequency response: 50 – 20000 Hz
• SPL (1W/1m): 93 dB
• Max. SPL: 114 dB
• Impedance: 8 Ohm(s)
• Protection circuits: HF Driver
• Loudspeaker inputs: 1
• Speaker input connections: Clamp connector
• Speakers per amplifier channel (DSP44/45K): 4
