LD Systems MON 121 A G2 1000 Watt 12 Inch Speaker Active Stage Monitor (MON121AG2 LDMON121AG2)
SKU:LD Systems-LDMON121AG2
LD Systems MON 121 A G2 1000 Watt 12 Inch Speaker Active Stage Monitor (MON121AG2 LDMON121AG2)

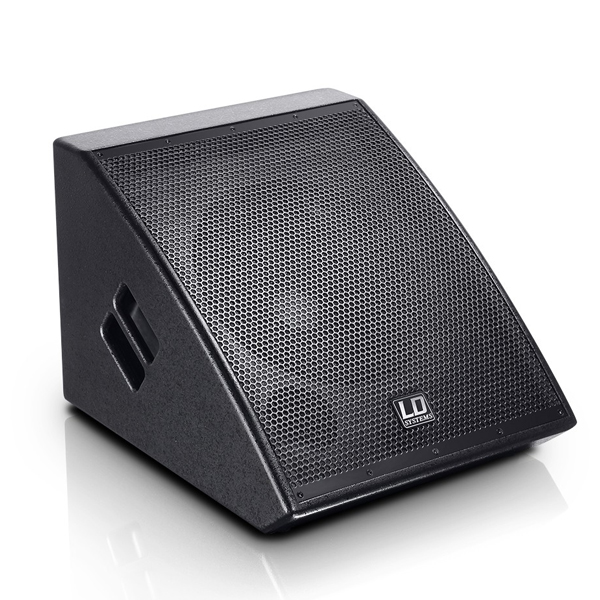

The LD Stinger MON121AG2 is a compact active stage monitor for all mobile applications.
The specially developed 12" coaxial speaker with an integral 1" HF driver and powerful ferrite magnets stands out because of a precisely symmetrical dispersion over 75° x 75° and attains a maximum sound-level pressure of 124dB with maximum resistance to feedback. It is driven by a Class AB power amplifier with a power output of 1000W Peak. The frequency response curve is 80Hz - 20kHz.
Dependable operation of the LD MON121AG2 is ensured by a limiter that prevents overloading of the speaker and a protection circuit that guards against short-circuiting.

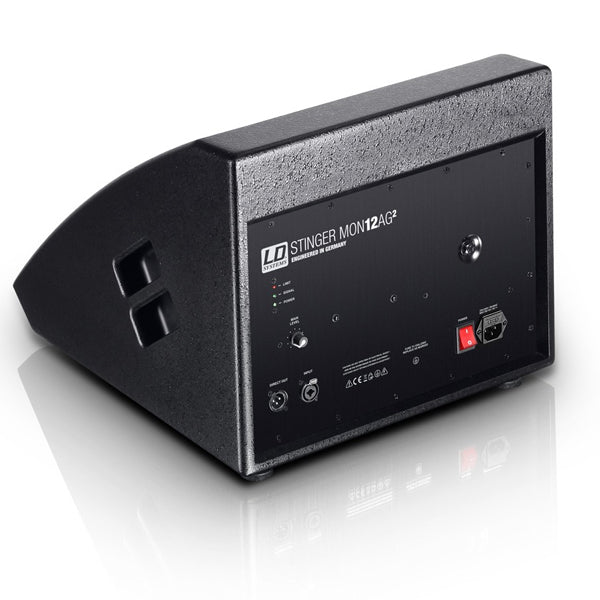

The input is a XLR-jack combo socket, an XLR output permits looping through of the signal. Other connector panel features include a volume control, IEC power socket, LED indicators of various colours for power, signal, and the limiter function.

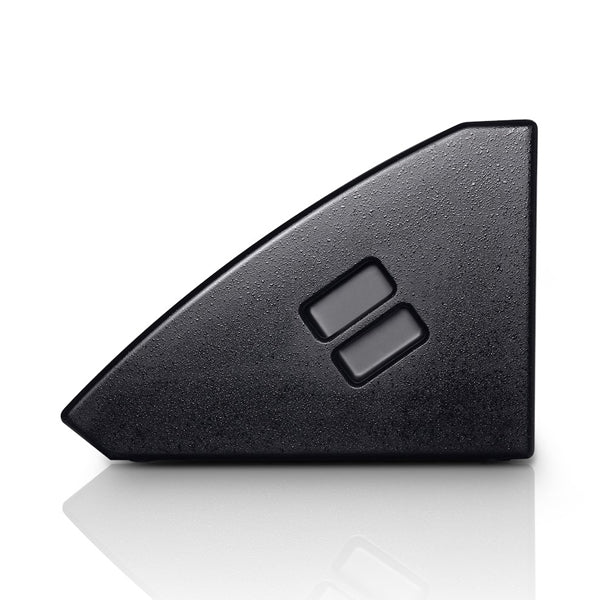

The elegant looking bass-reflex enclosure of the LD MON121AG2 is made of 15mm-thick multiplex finished with a durable coating. A sturdy metal grille guards against speaker damage, and ergonomically milled handles make transport easier. The monitor angle is 35°.
Specification :
- Low/mid Woofer dimensions : 12 "
- Woofer dimensions (mm) : 304 mm
- Woofer type : coaxial loudspeaker
- Woofer magnet : Ferrite
- Woofer brand : Custom-made
- Woofer voice coil : 2 "
- Woofer voice coil (mm) : 50.8 mm
- HF driver dimensions : 1 "
- HF driver dimention (mm) : 25.4 mm
- HF driver magnet : Ferrite
- HF driver brand : Custom-made
- HF driver voice coil : 1 "
- HF driver voice coil : 25.4 mm
- Amplifier : Class A/B
- Dispersion (H x V) : 75 x 75 °
- System Power (RMS) : 250 W
- Peak power : 1000 W
- Frequency response : 80 - 20000
- Crossover frequency : 2200 Hz
- SPL (1W/1m) : 100 dB
- Max. SPL (continuous) : 116 dB
- Max. SPL (Peak) : 124 dB
- Protection circuits : limiter, short circuit
- Controls : On / Off, volume
- Indicators : Limit, Power, Signal
- Line Inputs : 1
- Line input connectors : 6.3 mm jack, XLR
- Line Outputs : 1
- Line output connectors : XLR
- Operating voltage : transformer
- Operating voltage : 230 V AC / 50-60 Hz
- Cabinet material : 15 mm Plywood
- Cabinet construction : Bass Reflex
- Monitor angle : 35 °
- Dimension : 440 X 360 X 514 MM
- Weight : 17.8kg
