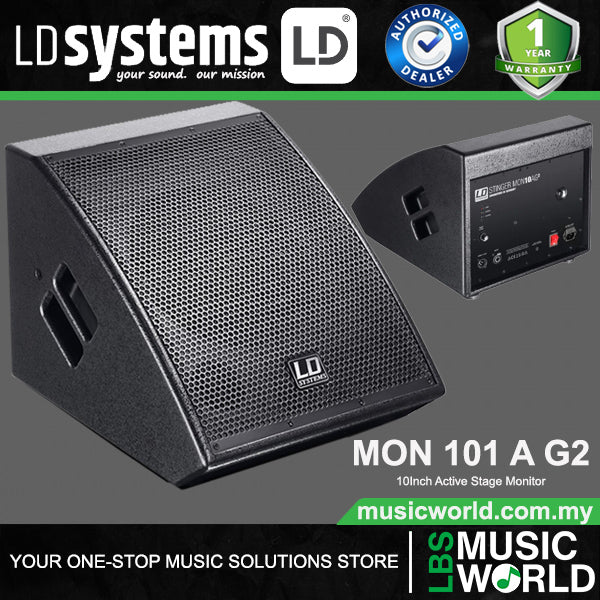

LD Systems MON 101 A G2 600 Watt 10 Inch Speaker Active Stage Monitor (MON101AG2 LDMON101AG2)

LD Systems MON 101 A G2 600 Watt 10 Inch Speaker Active Stage Monitor (MON101AG2 LDMON101AG2)

The LD Systems MON 101 A G2 is a professional active stage monitor designed to deliver clear, reliable, and powerful audio performance for live sound applications. Engineered for musicians, vocalists, presenters, DJs, and event professionals, this compact monitor combines high-quality components, robust construction, and efficient amplification to provide dependable monitoring in a wide variety of performance environments. Whether used on stage, in rehearsal rooms, houses of worship, conference venues, or educational facilities, the MON 101 A G2 offers the sound clarity and reliability needed for professional monitoring applications.

At the heart of the MON 101 A G2 is a high-performance 10-inch coaxial loudspeaker. The 254 mm low/mid-frequency woofer is equipped with a ferrite magnet and a 2-inch voice coil, providing strong and accurate reproduction of vocal and instrumental frequencies. The coaxial design positions the high-frequency driver within the same acoustic axis as the woofer, helping to achieve a more consistent and natural sound dispersion. This configuration improves phase coherence and ensures that performers receive a balanced audio signal across the monitor’s coverage area.

Complementing the woofer is a custom-made 1-inch high-frequency driver with a ferrite magnet and a 1-inch voice coil. This driver is responsible for delivering clear and detailed high frequencies, ensuring that vocals, acoustic instruments, and other critical elements remain intelligible even in demanding live environments. Together, the low-frequency and high-frequency components create a full-range monitoring solution capable of accurately reproducing a wide variety of audio content.

The monitor utilizes a Class A/B amplifier design, known for its reliable performance and high-quality sound reproduction. With a system power rating of 150 watts RMS and a peak power capability of 600 watts, the MON 101 A G2 delivers sufficient output for small to medium-sized stages and performance venues. The amplifier provides consistent power and dynamic response, helping performers hear themselves clearly during rehearsals and live performances.

A frequency response of 90 Hz to 20 kHz ensures balanced audio reproduction across a broad range of frequencies. This allows the monitor to handle vocals, keyboards, guitars, backing tracks, and speech applications with clarity and precision. The crossover frequency is set at 3300 Hz, enabling smooth integration between the woofer and high-frequency driver for a cohesive and natural sound.

The MON 101 A G2 features a dispersion pattern of 75° x 75°, providing wide and even sound coverage across the monitoring area. This coverage pattern allows performers to move freely on stage while maintaining consistent audio quality. Whether positioned directly in front of the monitor or slightly off-axis, users can benefit from reliable sound distribution that supports effective monitoring throughout a performance.

With a sensitivity rating of 99 dB, the monitor efficiently converts amplifier power into acoustic output. The unit is capable of achieving impressive sound pressure levels, with a maximum peak SPL of 121 dB. This output capability ensures that performers can hear critical audio information clearly, even in louder stage environments where competing sound sources may be present.

To ensure dependable operation, the MON 101 A G2 incorporates built-in protection circuits, including a limiter and short-circuit protection. These safety features help protect both the amplifier and speaker components from damage caused by excessive signal levels or electrical faults. The integrated limiter helps prevent distortion and overload conditions, contributing to reliable long-term performance and consistent audio quality.

User operation is straightforward thanks to simple front-panel controls and status indicators. The monitor features an on/off switch and a volume control, allowing quick adjustment of operating levels. LED indicators provide visual feedback for power, signal presence, and limiter activity, making it easy to monitor system status during use.

Connectivity options support a variety of professional audio applications. The monitor includes one line input with both XLR and 6.3 mm jack connectors, ensuring compatibility with mixers, audio interfaces, and other professional equipment. An XLR line output is also provided, allowing convenient signal linking to additional monitors or audio devices when required.

The cabinet is constructed from durable 15 mm plywood, providing excellent structural integrity while contributing to the monitor’s acoustic performance. The bass reflex cabinet design enhances low-frequency response and overall efficiency, helping deliver a fuller and more powerful sound. The monitor angle of 35° is optimized for stage use, directing audio toward performers for effective monitoring.

Measuring 380 x 335 x 466 mm and weighing 15.3 kg, the MON 101 A G2 strikes a practical balance between portability and durability. It is compact enough for convenient transport while remaining rugged enough to withstand regular professional use.

Combining a coaxial speaker design, Class A/B amplification, wide dispersion, durable plywood construction, and professional connectivity, the LD Systems MON 101 A G2 is a dependable active stage monitor that delivers clear, consistent, and powerful performance for a wide range of live sound applications.

Specification :

• Low/mid Woofer dimensions : 10 "
• Woofer dimensions (mm) : 254 mm
• Woofer type : coaxial loudspeaker
• Woofer magnet : Ferrite
• Woofer brand : Custom-made
• Woofer voice coil : 2 "
• Woofer voice coil (mm) : 50.8 mm
• HF driver dimensions : 1 "
• HF driver dimention (mm) : 25.4 mm
• HF driver magnet : Ferrite
• HF driver brand : Custom-made
• HF driver voice coil : 1 "
• HF driver voice coil : 25.4 mm
• Amplifier : Class A/B
• Dispersion (H x V) : 75 x 75 °
• System Power (RMS) : 150 W
• Peak power : 600 W
• Frequency response : 90 - 20000
• Crossover frequency : 3300 Hz
• SPL (1W/1m) : 99 dB
• Max. SPL (continuous) : 13 dB
• Max. SPL (Peak) : 121 dB
• Protection circuits : limiter, short circuit
• Controls : On / Off, volume
• Indicators : Limit, Power, Signal
• Line Inputs : 1
• Line input connectors : 6.3 mm jack, XLR
• Line Outputs : 1
• Line output connectors : XLR
• Operating voltage : transformer
• Operating voltage : 230 V AC / 50-60 Hz
• Cabinet material  : 15 mm Plywood
• Cabinet construction : Bass Reflex
• Monitor angle : 35 °
• Dimension : 380 X 335 X 466 MM
• Weight : 15.3 kg
