LD Systems IPA 412 T 120W Professional Amp 4-channel Installation Amplifier (LDIPA412T)

LD Systems IPA 412 T 120W Professional Amp 4-channel Installation Amplifier (LDIPA412T)

The LD Systems IPA 412 T is a professional 4-channel installation amplifier designed for fixed installation audio systems that require reliable performance, flexible configuration, and advanced control options. Built with modern Class-D amplification technology and intelligent system integration features, the IPA 412 T is ideal for commercial buildings, conference facilities, retail environments, hospitality venues, educational institutions, houses of worship, and multi-zone audio installations. Its combination of power efficiency, flexible output modes, and future-ready connectivity makes it a strong solution for professional integrators.

At its core, the IPA 412 T features a powerful Class-D amplifier design delivering 4 × 120 watts of output power. This configuration provides stable and efficient performance while minimizing heat generation and energy consumption. Class-D technology ensures high efficiency, making the amplifier suitable for installations where continuous operation is required over long periods. For applications requiring higher power, the series also includes the IPA 424 T variant with 4 × 240 watts, offering scalability depending on system requirements.

The amplifier supports both low-impedance and constant-voltage operation, making it highly versatile for different installation scenarios. It can operate at 4-ohm loads in transformer bypass mode or deliver audio through 70V or 100V distributed speaker systems using a high-quality toroidal core transformer. This flexibility allows installers to use the IPA 412 T in both small-scale setups with direct loudspeaker connections and larger distributed systems covering multiple zones or extended distances.

A key feature of the IPA 412 T is its stereo, parallel, and bridge mode selector switch available per channel pair. This allows users to configure each pair of channels according to the needs of the installation. Stereo mode provides independent channel operation for multi-zone audio systems, while parallel mode allows signals to be duplicated across channels. Bridge mode combines channel power for higher output applications where increased wattage is required for specific loudspeakers or zones. This flexibility ensures optimal system design and efficient power distribution.

The amplifier is equipped with four balanced line inputs and four speaker outputs, all utilizing terminal block connections for secure and reliable wiring. Balanced inputs help reduce noise and interference, ensuring clean signal transmission even over long cable runs. The terminal block design simplifies installation and provides stable connections suitable for permanent installations in professional environments.

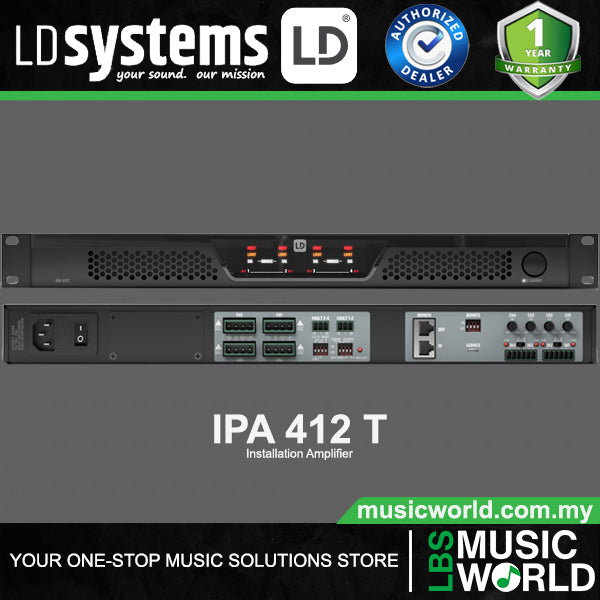

The front panel of the IPA 412 T is designed for clear and intuitive monitoring. It features a comprehensive LED status system for each channel, including signal, limit, protection, mute, and bridge mode indicators. Additionally, clipping LEDs are provided for input monitoring, allowing users to quickly identify signal issues and adjust levels accordingly. This user-friendly interface helps installers and operators maintain optimal system performance and ensure safe operation at all times.

To protect the amplifier and connected loudspeakers, the IPA 412 T includes a range of advanced protection circuits. These include DSP-based limiters, overcurrent protection, direct current (DC) protection, overheating protection, and short-circuit protection. These safety systems work together to ensure stable operation under demanding conditions, preventing damage to both the amplifier and connected equipment. A switchable auto-standby mode is also included, helping reduce energy consumption when the system is not in active use.

The amplifier also features integrated DSP presets with high-pass filter (HPF) and low-pass filter (LPF) functions, which can be activated via DIP switches. These DSP functions allow installers to optimize the frequency response of connected loudspeakers, improving system efficiency and protecting speakers from unwanted frequency ranges. This level of control ensures better sound quality and system reliability in a variety of installation environments.

One of the most advanced features of the IPA 412 T is its remote audio and control bus based on CAN (Controller Area Network) architecture. This system enables reliable communication between components and supports future expansion with LD Systems remote control panels and paging microphones. The CAN-based architecture ensures stable and scalable system control, making the amplifier suitable for complex installations requiring centralized management and paging functionality.

Future expandability is another major advantage of the IPA 412 T. The unit includes a slot for optional expansion cards, allowing users to add Ethernet or Ethernet with Dante connectivity in the future. This forward-thinking design ensures that the amplifier can be integrated into modern networked audio systems as technology evolves, protecting long-term investment and increasing system flexibility.

The amplifier is designed for installation in standard 19-inch racks and can be paired with optional L-bearing rails measuring 450 mm in length. These accessories provide secure mounting support and simplify integration into professional rack systems. The robust construction and modular design make the IPA 412 T suitable for permanent installations where reliability and serviceability are important.

Overall, the LD Systems IPA 412 T is a versatile and professional 4-channel installation amplifier that combines efficient Class-D power, flexible output configurations, advanced DSP protection, and future-ready connectivity. With 4 × 120 W output, support for 70V/100V systems, stereo/parallel/bridge modes, comprehensive protection circuits, CAN-based remote control architecture, and expansion options for Ethernet and Dante, it delivers a powerful and scalable solution for modern installed sound systems. Designed for reliability and long-term performance, the IPA 412 T is an ideal choice for professional audio installations requiring flexibility, efficiency, and advanced control capabilities.

Features:

• Professional 4-channel installation amplifier
• Powerful class-D power amplifier with 4 x 120 W (IPA 412 T) or 4 x 240 W (IPA 424 T) at 4 Ohm (transformer bypass) or 70V/100V outputs through toroidal core transformer
• Stereo/parallel/bridge mode selector switch per channel pair
• 4 balanced line inputs and 4 speaker outputs with terminal block connections
• User-friendly front panel with signal, limit, protection, mute and bridge mode LEDs per channel and clipping LEDs for the inputs
• Speaker protection circuits: DSP limiter, overcurrent, direct current, overheating, short circuit as well as switchable auto standby mode
• DSP presets with HPF and LPF which can be activated via DIP switches
• REMOTE audio and control bus based on CAN architecture (Controller Area Network)
• Equipped for future LD Systems remote control panels and paging microphones
• Slot for future optional expansion cards for Ethernet or Ethernet + Dante
• Optional accessories: 19" L-bearing rails, length 450 mm
