LD Systems DQOR 5 B 5 Inch 8 Ohm Two-way Passive Indoor Outdoor Installation Loudspeaker - Pair

LD Systems DQOR 5 B 5 Inch 8 Ohm Two-way Passive Indoor Outdoor Installation Loudspeaker - Pair

The LD Systems DQOR 5 is a versatile and elegantly designed installation loudspeaker engineered for both indoor and outdoor applications. Combining weather-resistant construction, high-quality audio performance, and modern architectural aesthetics, the DQOR 5 is an ideal solution for commercial environments, hospitality venues, retail spaces, educational facilities, public areas, and residential installations. Its balanced design philosophy ensures that it delivers excellent sound quality while seamlessly blending into a wide variety of architectural styles.

Built to withstand challenging environmental conditions, the DQOR 5 is certified to IP55 standards, making it suitable for outdoor use where protection against dust and water is required. This level of weather resistance ensures reliable operation in environments such as terraces, outdoor dining areas, gardens, recreational spaces, and building exteriors. At the same time, its refined design makes it equally suitable for indoor installations, offering consistent performance across diverse applications.

Durability is further enhanced through the use of a corrosion-resistant aluminum front grille. This robust grille protects the internal components from environmental exposure while maintaining excellent acoustic transparency. The corrosion-resistant properties of the grille make the DQOR 5 particularly well suited for outdoor installations where humidity, rain, and temperature variations could otherwise impact long-term performance. Despite its rugged construction, the grille maintains a clean and professional appearance that complements modern architectural designs.

One of the defining characteristics of the DQOR 5 is its elegant and dynamic design. Unlike traditional installation loudspeakers that often prioritize functionality over aesthetics, the DQOR 5 has been carefully engineered to integrate harmoniously into any environment. Its sleek and contemporary appearance allows it to blend discreetly into both modern and classic architectural spaces. This makes it an excellent choice for venues where visual design is just as important as sound performance.

To accommodate different design requirements, the DQOR 5 is available in both black and white finishes. This flexibility allows installers and designers to select the version that best matches the surrounding décor. Whether used as a subtle background element or as part of a visible design feature, the speaker’s color options ensure seamless integration into any environment.

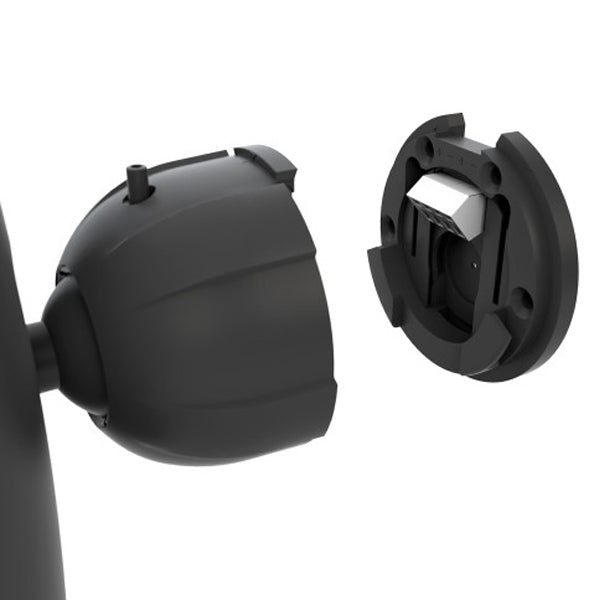

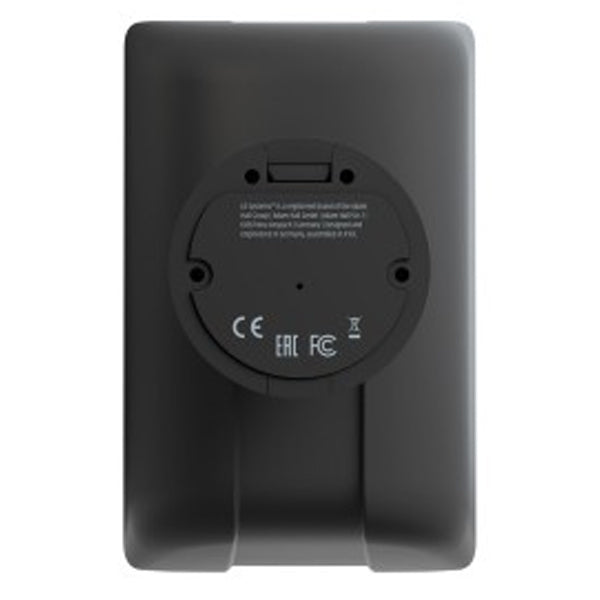

Installation is simplified through an innovative slide-and-lock wall mounting system. This mechanism allows the speaker to be securely mounted with ease while maintaining a clean and professional appearance. The slide-and-lock design ensures stable positioning and reduces installation time, making it ideal for professional installers working on large-scale projects or tight schedules.

A key advantage of the mounting system is the inclusion of concealed integrated connections. By hiding cables and connection points within the mounting structure, the DQOR 5 maintains a clean and uncluttered appearance once installed. This design feature is especially valuable in premium environments such as hotels, restaurants, corporate offices, and residential interiors where aesthetics play an important role in the overall experience.

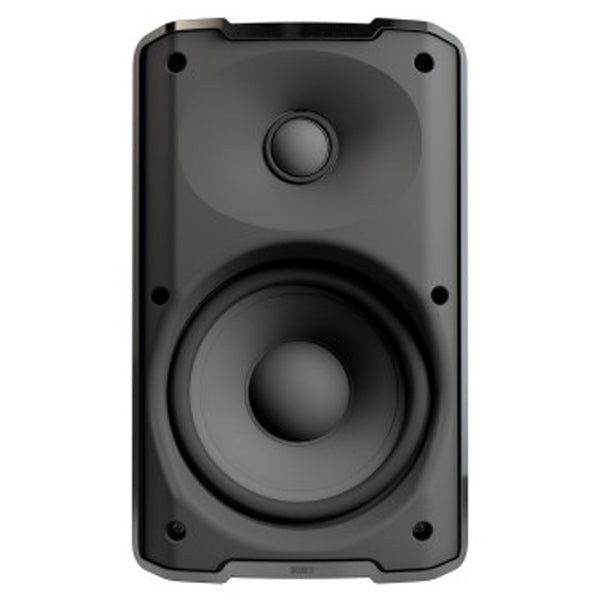

At the heart of the DQOR 5 is a high-quality 2-way speaker system that delivers superb and balanced sound reproduction. This configuration ensures that both low and high frequencies are accurately represented, resulting in clear and natural audio performance. The speaker is well suited for both background music and speech applications, providing consistent clarity across a wide range of listening scenarios.

The low-frequency section features a weather-treated paper cone woofer designed to deliver warm and natural bass response. The treatment applied to the cone ensures resistance to environmental influences while preserving acoustic performance. This allows the woofer to maintain consistent sound quality even in outdoor or humid conditions, making it a reliable choice for long-term installations.

For high-frequency reproduction, the DQOR 5 uses a FerroFluid™-cooled titanium tweeter. This advanced cooling technology improves thermal stability and enhances durability, allowing the driver to perform reliably over extended periods. The titanium diaphragm ensures crisp and detailed high-frequency reproduction, delivering clear vocals and precise musical detail. The combination of these drivers results in a well-balanced and natural sound signature.

The speaker provides a wide coverage angle of 120 degrees horizontally and 80 degrees vertically. This broad dispersion pattern ensures even sound distribution across large listening areas, reducing the need for multiple speakers in smaller installations. Wide coverage also helps maintain consistent sound quality for listeners regardless of their position within the space.

To further enhance acoustic performance, the DQOR 5 incorporates a BEM-optimized waveguide. This advanced waveguide design improves sound directivity and ensures balanced frequency response throughout the coverage area. By controlling sound dispersion more precisely, the waveguide helps reduce unwanted reflections and enhances overall clarity, particularly in acoustically challenging environments.

The DQOR 5 is available in multiple sizes within the series, including 3-inch, 5-inch, and 8-inch variants. This allows system designers to select the most appropriate model based on room size, coverage requirements, and desired sound output. The 5-inch version strikes an ideal balance between compact design and strong audio performance, making it one of the most versatile options in the range.

Flexibility is further enhanced through multiple connection and impedance options. The DQOR 5 is available in a low-impedance 8-ohm version for standard audio systems, as well as a 70/100-volt version with multiple power taps for distributed audio applications. Additionally, the speaker can operate in low-impedance mode at 16 ohms, providing further installation flexibility for complex system designs.

Overall, the LD Systems DQOR 5 is a high-performance installation loudspeaker that combines elegant design, weather-resistant construction, flexible connectivity, and excellent sound quality. With its IP55 certification, corrosion-resistant aluminum grille, 2-way driver system, wide coverage pattern, BEM-optimized waveguide, and versatile mounting system, it delivers reliable and professional audio performance for a wide range of indoor and outdoor applications. Whether used in commercial, hospitality, or residential environments, the DQOR 5 offers the perfect balance of durability, aesthetics, and acoustic excellence.

Features:

• For indoor and outdoor use, IP65 (DQOR 3) and IP55 (DQOR 5 & 8) certified
• Corrosion-resistant aluminum front grille
• Elegant, dynamic design to suit any environment
• Available in black or white
• Slide-and-lock wall mount with concealed integrated connections
• Superb, balanced sound thanks to a 2-way system
• Weather treated paper cone woofer and FerroFluid™-cooled titanium high frequency driver
• Wide coverage angle (120° horizontal, 80° vertical)
• BEM-optimized waveguide for balanced sound
• 3", 5" and 8" variants available
• Available in two connection variants: low impedance (8 Ohm) or as a 70/100V version with multiple power taps, and can be operated under low impedance (16 Ohm)
