HH Electronics TNA-2120SA 1200 Watt 2 x12 Inch Active Subwoofer (TNA2120SA TNA 2120SA)

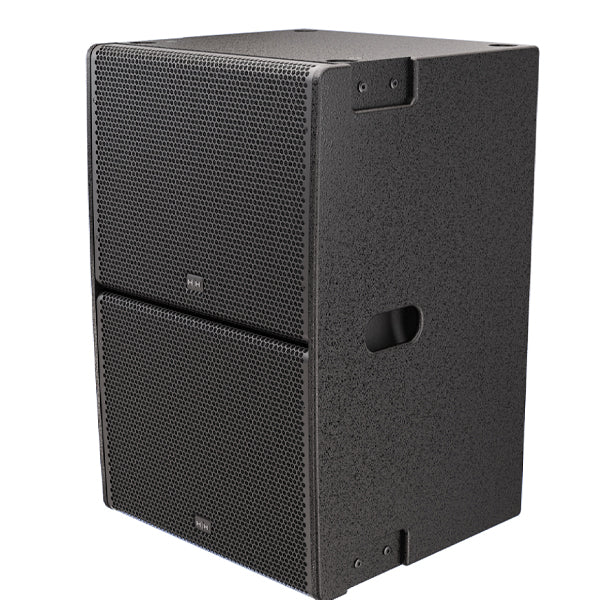

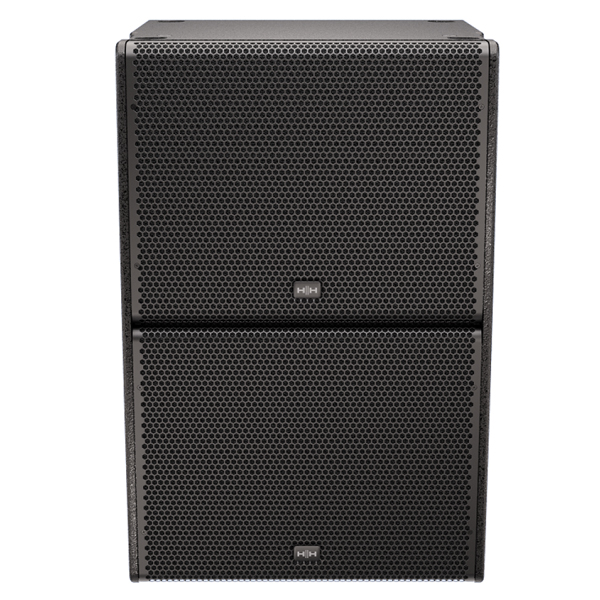

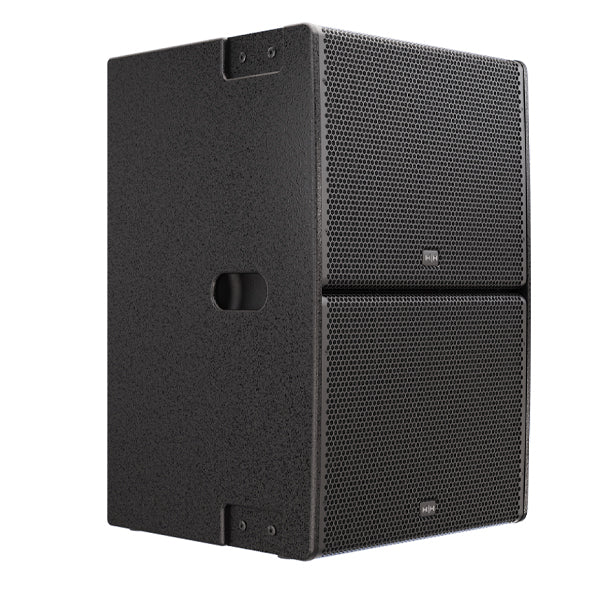

The TNA-2120SA is a multi-channel active subwoofer for powering a complete TNA line array system. The TNA-2120SA features two high power 12-inch low frequency woofers with exceptionally high output. The TNA-2120SA active subwoofer houses three channels of high performance amplification and cutting edge built in DSP presets. As a modular system, the TNA-2120SA is capable of powering up to 6 x TNA-2051 line array satellite cabinets. With Integrated rigging hardware, and optional suspension bracket and dolly board, the TNA-2120SA can be installed quickly and easily. The TNA-2120SA offers a max SPL of 137dB and offers a frequency response as low as 35Hz. When combined upto six TNA-2051's, the TNA-2120SA offers an ideal venue installation or point source solution without the extra expense of rack amplifiers and processors. Ideal for venues, schools, sports, gyms, hotels and more.
Specification :
- System Type : 2 x12-inch Active Subwoofer, Bass Reflex, with Three channel internal amplifier (Two HF Amplifier Channels for external satellites)
- Frequency Response (-10) : 52Hz - 200Hz
- Frequency Response (-3) : 52Hz - 150Hz * Tuned with internal DSP Presets

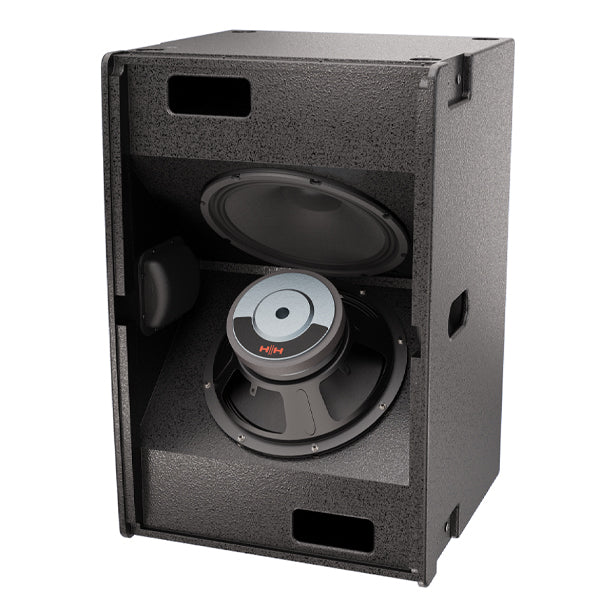

- LF Driver : 2 x 12-inch HH designed high performance driver
- Max SPL : 134dB continuous, 137dB Peak
- Power : System Amplifier Power Rating: 4800W Peak, 2400W Continuous, 1200W RMS
- Subwoofer Amplifier Power Rating: 2400W Peak, 1200W Continuous, 600W RMS, Satellite Amplifier Power Rating: Two Channels of 1200W Peak, 600W Continuous, 300W RMS
- Inputs : Balanced XLR Connector

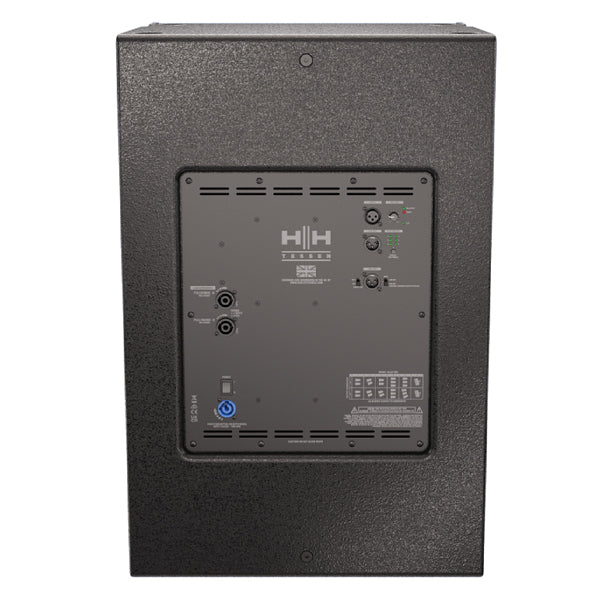

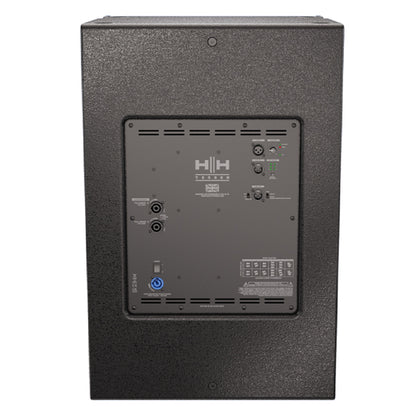

- Outputs : 1 x Balanced XLR Link Out, 1 x Balanced XLR Sub out with 2 way/3 way mode switch and Ground Lift Switch. 2 x locking speakon connectors for external TNA-2051 cabinets
- Indicators : Power, Mute/Protect, Clip Indicator, Preset Mode
- DSP : 56bit DSP controlling Crossover, EQ, phase and time optimisation for array cabinets. Six built in DSP presets for typical use cases
- Protection : Comprehensive protection and clip free limiting + clip indicator
- Controls : Master Volume, DPS Preset Switch
