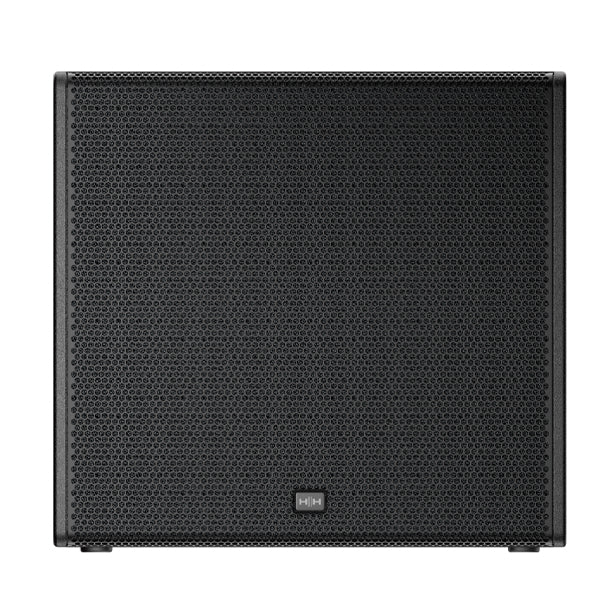

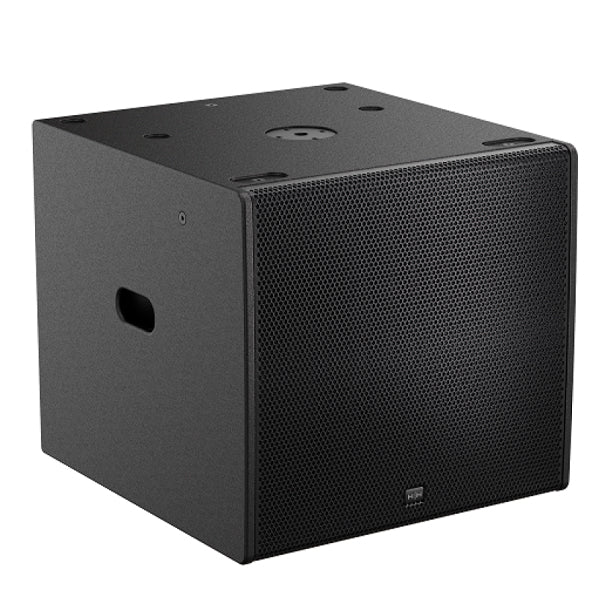

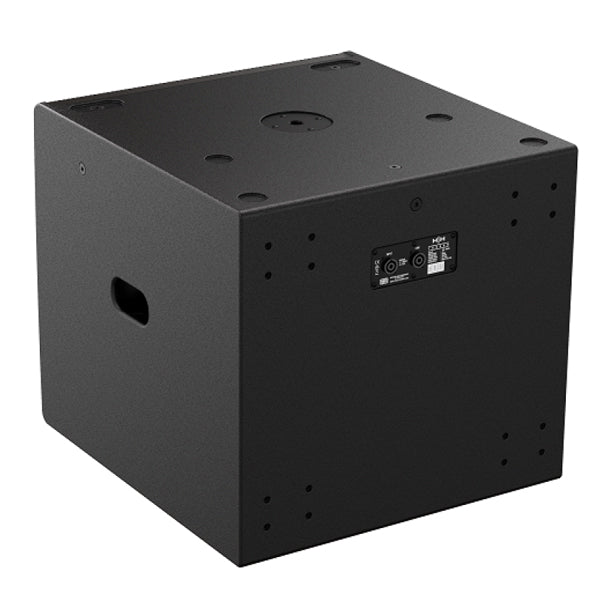

HH Electronics TNA-1800S 2000 Watt 18 Inch Passive Line Array Subwoofer Cabinet (TNA1800S TNA 1800S)

HH Electronics TNA-1800S 2000 Watt 18 Inch Passive Line Array Subwoofer Cabinet (TNA1800S TNA 1800S)

The TNA-1800S passive line array subwoofer features a high power 18" low frequency woofer with exceptional high output. Equipped with integrated rigging hardware, the TNA-1800S can be installed quickly and easily. The TNA-1800S offers a max SPL of 127 dB and offers a frequency response as low as 32Hz. When combined with the TNA-2051 and TNA-1200S, the TNA-1800S offers an ideal venue installation or point source solution. Ideal for venues, schools, sports, gyms, hotels and more.

Specificaion :

• Frequency Response (-10) : 30Hz - 1kHz
• Frequency Response (-3) : 40Hz - 500Hz
• Power : 500W AES, 2000W Peak
• Sensitivity (1W/1M) : 102 dB
• Max SPL (1M) (Peak) : 135 dB
• Nominal System Impedance : 4 Ohm
• Input Connector  : NL4 ±1 Twist Lock Connector
• Link Connector : NL4 ±1 Twist Lock Connector
• LF Driver : 1 x 18 Inch High sensitivity HH designed driver
• Cabinet  : 15mm Plywood
• Finish : Painted Black (White finish optional, subject to MOQ)
• Mounting Points : 6x M10 Penn Elcom tie down/flying points & M20 Threaded Pole Mount
• Grille : 1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined
• Unit Dimensions (Hwd) : 556 x 600 x 641mm, 21.9" x 23.6" x 25.2"
• Unit Weight : 34.38Kg, 75.8 lbs
