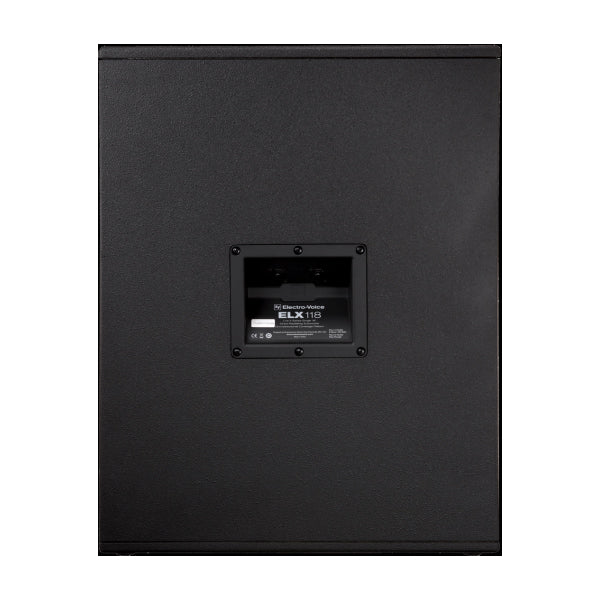

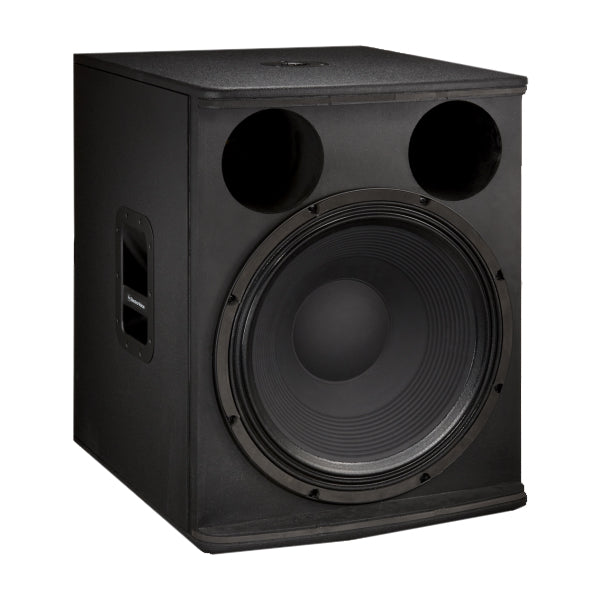

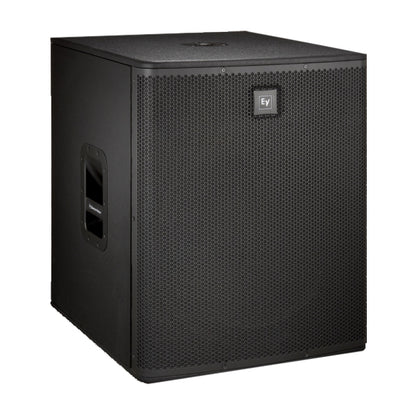

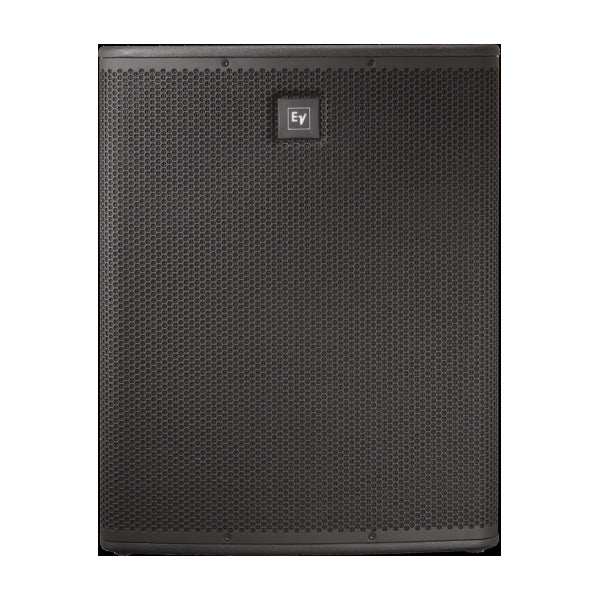

EV Electro-Voice ELX118 1600W 18" Passive Subwoofer (ELX 118)

EV Electro-Voice ELX118 1600W 18" Passive Subwoofer (ELX 118)

Part of Electro-Voice's Live X series of portable powered and passive loudspeakers, the ELX118 can be used with a wide range of amplifiers, due to its exceptionally efficient design and power handling capability. Designed with the latest Electro-Voice-engineered woofer and 1.5" titanium compression driver, the ELX118 18" passive subwoofer provides exceptional audio quality with 400W power handling (1600W peak), exceptional SPL output, and a 50Hz-100Hz frequency response. The ELX118 is constructed of 9-ply, 15mm plywood, and is internally braced, making it sturdy yet completely portable.

Features:

• Supplemental bass for ELX112 or ELX115
• EVS-18K woofer for extended LF
• 35 Hz – 200 Hz frequency range
• 134 dB max SPL
• Power handling: 400 W continuous, 1600 W peak
• Braced 15mm plywood enclosure
• Stack or pole-mount full-range boxes
• Black textured finish

Specifications:

• Freq. Response (-3 dB)： 50 Hz - 100 Hz²
• Freq. Range (-10 dB)： 35 Hz - 200 Hz²
• Axial Sensitivity： 96 dB
• Max. Measured SPL： 134 dB
• Coverage (Horiz. x Vert.)： Omnidirectional
• Power Handling： 400W Continuous, 1600W Peak
• Nominal Impedance： 8 Ohms
• Minimum Impedance： 6.7 Ohms
