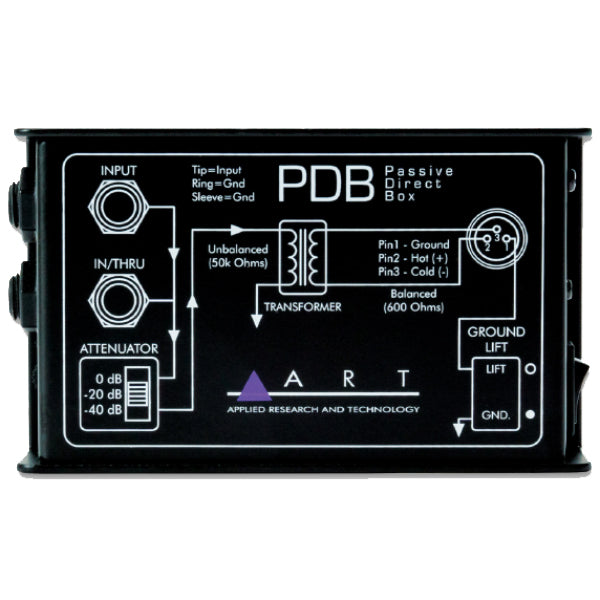

ART Pro Audio PDB Switchable Passive Direct Box DI

ART Pro Audio PDB Switchable Passive Direct Box DI

The PDB is a passive direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs.

The input signal is sent to a transformer-isolated XLR output and a parallel Thru jack, so it can simultaneously be connected to an amplifier on stage.

A switchable ground lift helps to eliminate hum, and switchable attenuation offers up to 40 dB of gain reduction.

As a fully passive design, the PDB doesn’t require an external power source. Passive DIs are often a great match for powered sources such as synthesizers or guitars and basses with active preamps.

Packed into a stage-proof steel enclosure, the PDB provides a high-fidelity connection to a mixer, PA system, or audio interface.

Features :

• 1/4" TS Input and Thru Connectors
• Balanced XLR Output
• Switchable Attenuation (-20 dB, -40 dB) and Ground Lift
• Passive Design - No Power Required
• Rugged Steel Case
• Active or Passive : Passive
• Inputs : 1x 1/4" TS
• Outputs : 1x XLR
• 1x 1/4" : TS Thru
• Input Impedance : 50 kΩ
• Output Impedance : 600Ω
• Controls : Attenuator (0 dB, -20 dB, -40 dB) Ground Lift
• Frequency Response : 10 Hz - 50 kHz +/- 0.5 dB @ +4 dBu
