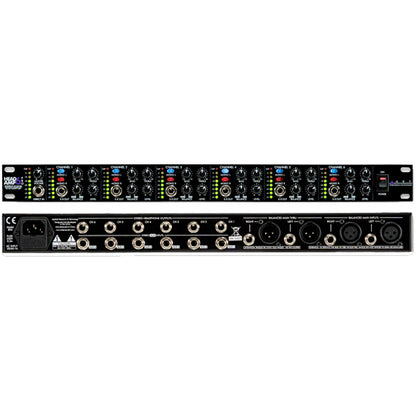

ART Pro Audio HeadAmp6 Pro 6 Channel Pro Headphone Amplifier with EQ (Head Amp 6 Pro)

ART Pro Audio HeadAmp6 Pro 6 Channel Pro Headphone Amplifier with EQ (Head Amp 6 Pro)

The ART HeadAmp6PRO is a six-channel stereo headphone amplifier that includes a six-channel auxiliary input section that can be used to provide the popular “More-Me” function on each headphone mix. Each output channel also features a dual function BALANCE control which will pan between LEFT & RIGHT sides of the main signal bus, or vary the MIX between the main signal bus and the AUXILIARY input for that respective channel.

Bass and treble controls are included on each output channel for fine-tuning the tone. Outputs include both front and rear panel stereo 1/4-inch TRS jacks for ease of installation and quick patching capability. Two MONO select buttons on each channel select between four operating modes; 1) Stereo, 2) Mono Left, 3) Mono Right, 4) Mono Both (Left & Right) for versatile monitoring solutions.

The main outputs for each channel of the headphone amplifier are rear mounted stereo TRS jacks and are wired in parallel with the corresponding output jacks on the front panel. Front panel, rear panel, or both front and rear panel outputs can be used simultaneously to drive headphones or be used as feeds to additional headphone amplifiers in a distributed audio network.

Features:

• Six Channels with Separate Bass & Treble Controls
• Front & Rear Panel Output Jacks
• XLR & 1/4-inch TRS Balanced Inputs
• Operates in Stereo, Mono (Source Left), Mono (Source Right) or Summed Mono (Source Left & Right)
• Auxiliary Front Mounted Separate Source Input
• 8-Sement LED Level Indicators on all Channels & Bus
