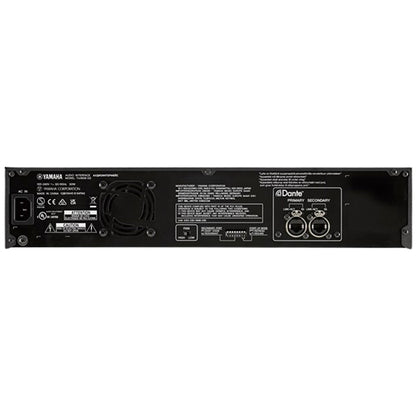

Yamaha Tio1608-D2 Digital Stage Box 16 Microphone Preamplifiers and 8 Line Outputs (Tio1608-D2)

Yamaha Tio1608-D2 Digital Stage Box 16 Microphone Preamplifiers and 8 Line Outputs (Tio1608-D2)

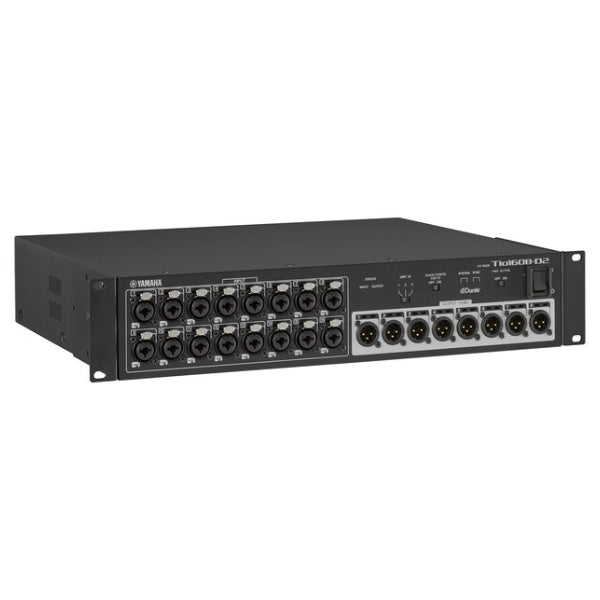

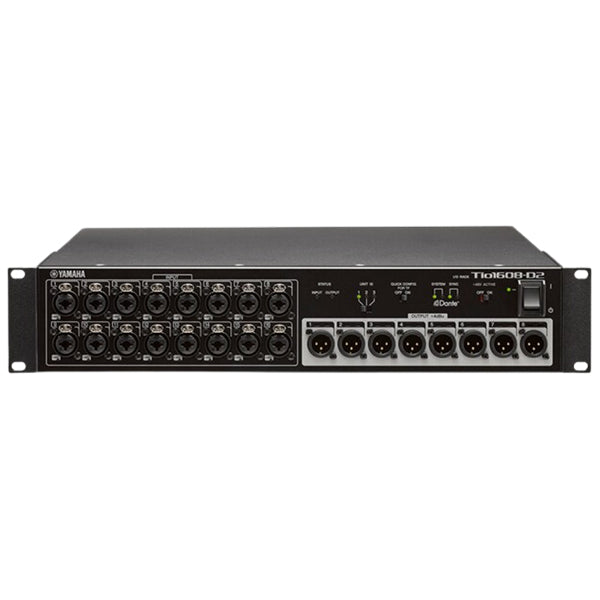

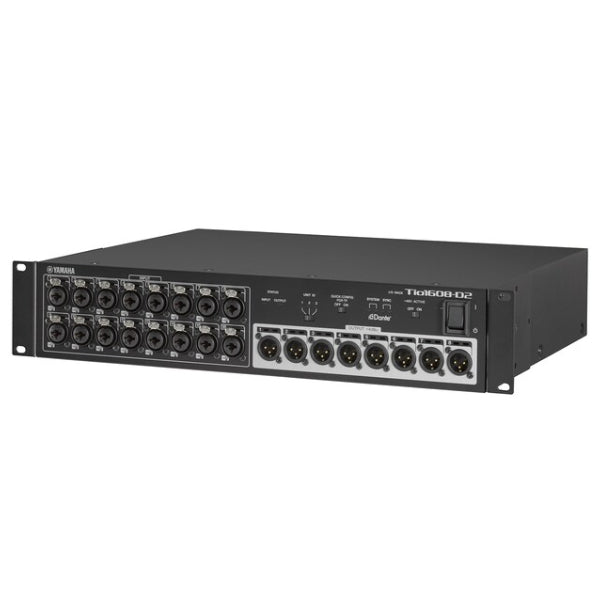

The Tio1608-D2 is a Dante-equipped I/O rack with 16 microphone/line inputs and 8 line outputs. Equipped with Yamaha's natural-sounding, recallable D-PRE preamplifiers, it delivers high-definition audio and supports up to 96kHz sampling rates. Designed for seamless integration with Yamaha digital consoles like the DM3 and TF series (via Dante networking and simple CAT5e cable connections), it provides flexible, low-latency system expansion for live sound and professional installations.

Specifications :

• Inputs : 16 Mic/Line inputs (XLR/TRS combo, balanced)
• Outputs : 8 Line outputs (XLR balanced)
• Preamps : Recallable D-PRE microphone preamplifiers
• Sampling Rate : Up to 96kHz

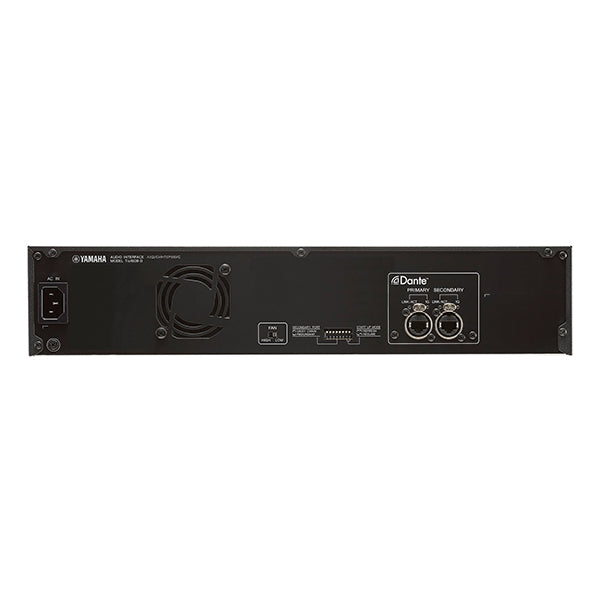

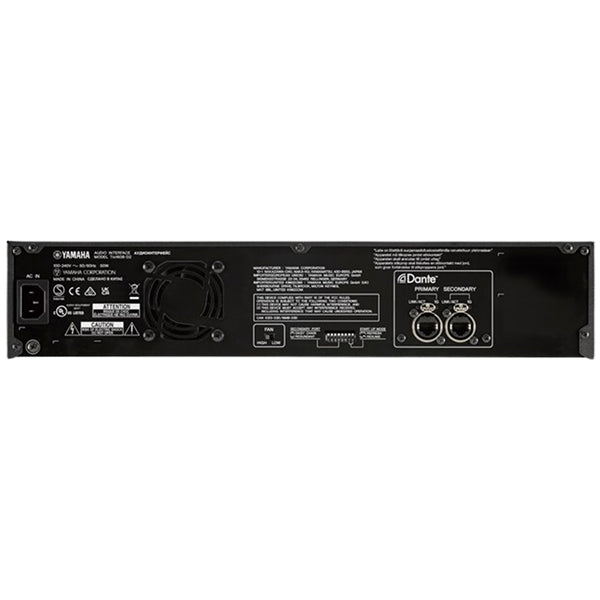

• Network : Dante audio network via EtherCon CAT5e (Primary/Secondary)
• Frequency Response: +0.5, -1.5 dB (20Hz - 20kHz)
• Dynamic Range: 108 dB (Input to Output)
• THD: Less than 0.05% (+4 dBu, 20Hz - 20kHz)
• Power Requirements: AC 100V-240V, 50/60Hz (50W)
• Dimensions (W x H x D): 480 mm × 88 mm × 364 mm (2U rackmount)
• Weight: 5.7 kg
• Phantom Power: +48V DC switchable per channel
• Direct connection with Yamaha DM3 series
• Compatible with Yamaha TF series (via NY64-D card) and larger systems (RIVAGE PM, DME7)

Features :

• Simple, versatile, high-definition Dante Stagebox
• The versatility and scalability of Dante
• A stagebox that enhances the convenience of your console
• Dante High Reliability Network Audio Protocol
• Fast, easy configuration
• Simple and Flexible Input Selection
• Recallable D-PRE preamplifiers
• System example with DM3
