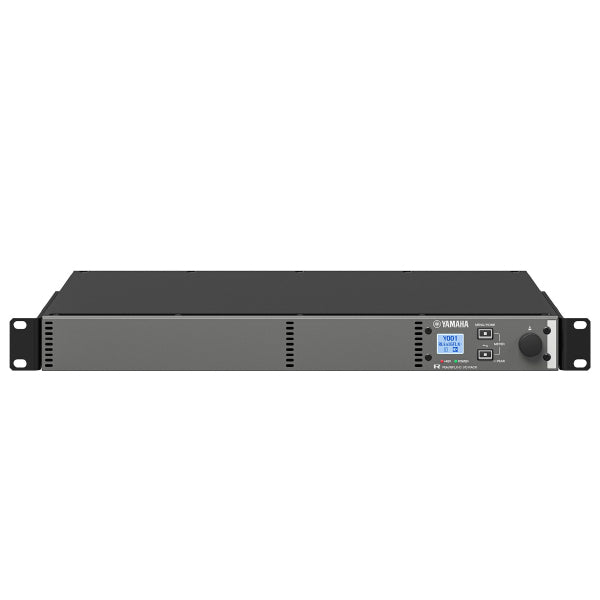

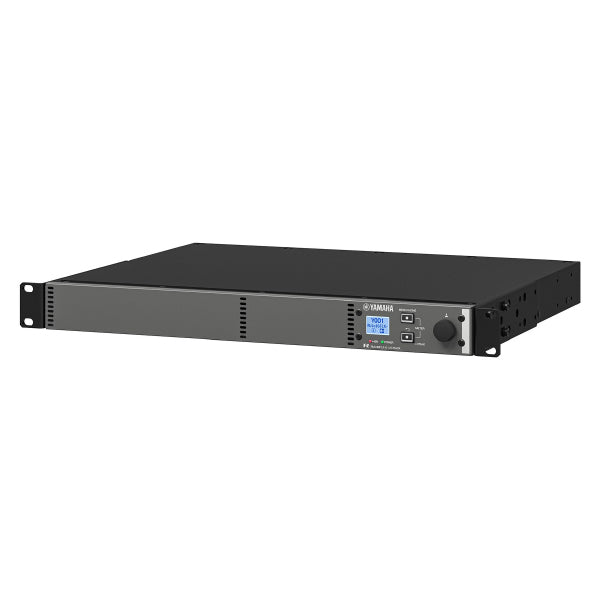

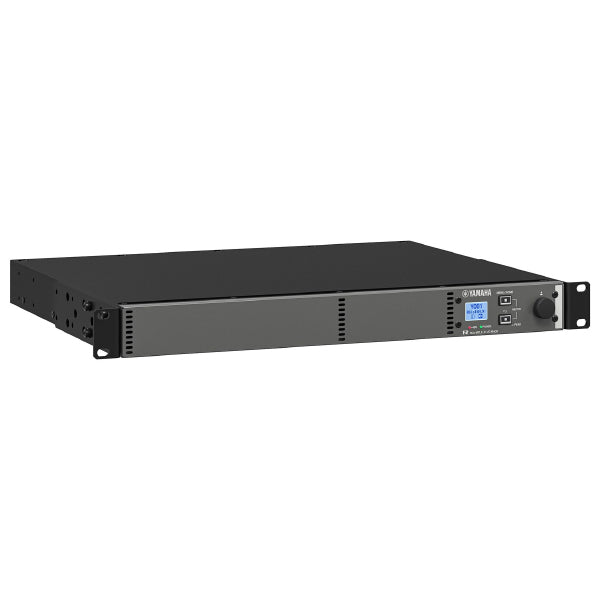

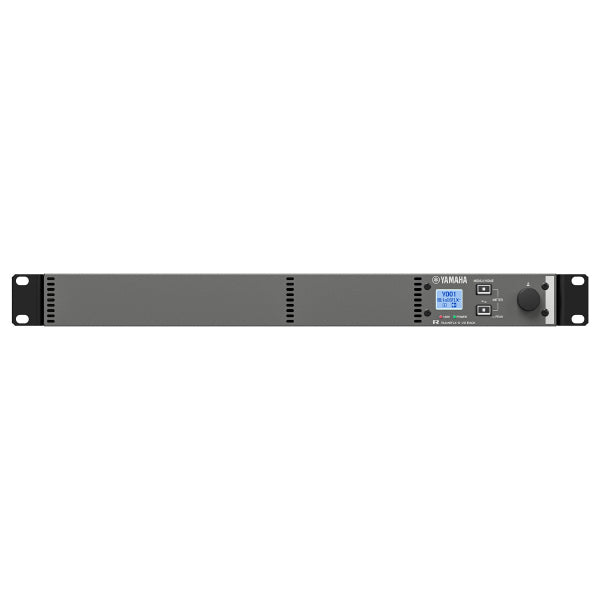

Yamaha RUio16FLX-D 16 Channel Flexible Dante I/O Audio Interface Rackmount (RUio16FLXD)

The Dante-compatible RUio16FLX-D provides 16 channels of either analog input, analog output, or AES/EBU output so you can easily configure systems for use with Yamaha digital mixers and processors. Source channels can be selected in groups of two, and flexible support is provided for I/O expansion.

Specifications :

• Type : Dante I/O Rack
• Channels : 16

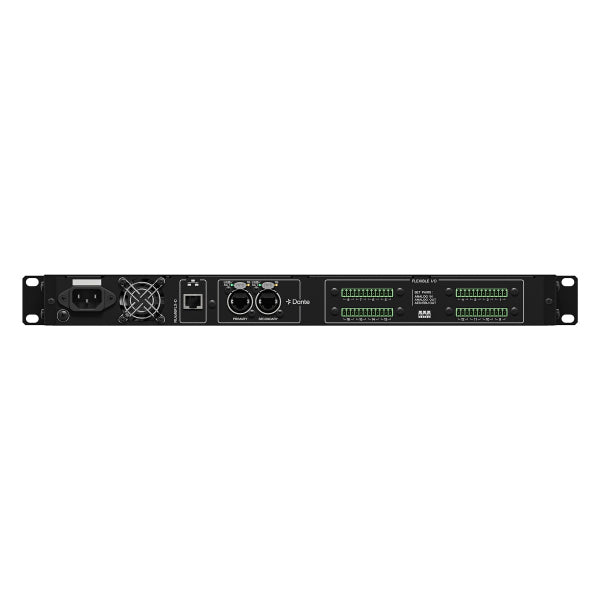

• Inputs - Other : 2 x 12-pin Euroblock (analog or AES/EBU)
• Outputs - Direct : 2 x 12-pin Euroblock (analog or AES/EBU)
• Inputs - Digital : 2 x EtherCon (Dante)
• Data I/O : 1 x Ethernet (network)
• Rackmountable : Yes
• Power Source  : Standard IEC AC Cable
• Manufacturer Part Number : RUio16FLX-D

Features :

• I/O: 16 channels of flexible I/O with Euroblock connectors (analog input, analog output, or AES/EBU output)
• Dante: 16 receive channels, 16 transmit channels
• Local display and control of gain and phantom power settings
• Power consumption: 45 W
• Dimensions (W x H x D): 480 × 44 × 369 mm (18.9” x 1.7” x 14.5”)
• Net weight: 4.0 kg (8.8 lb)
