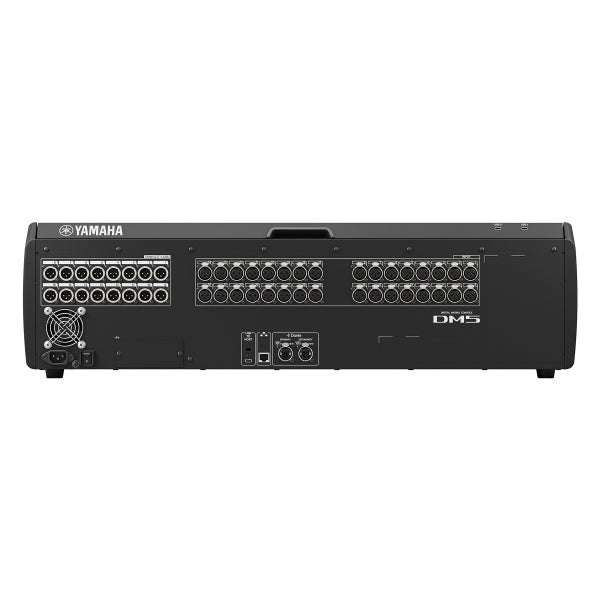

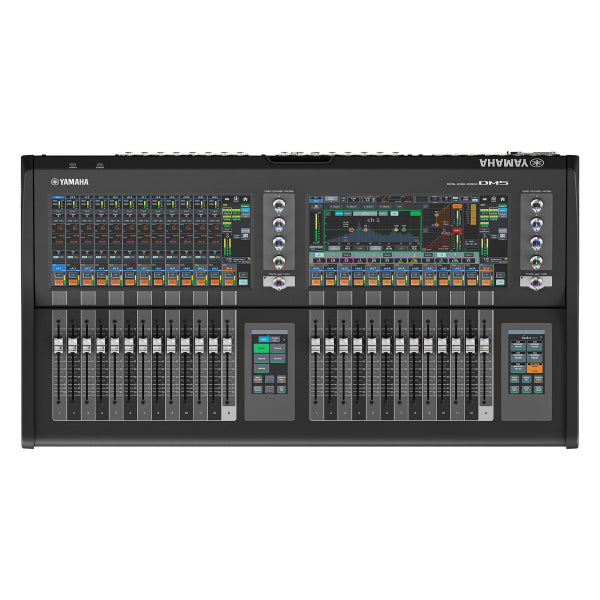

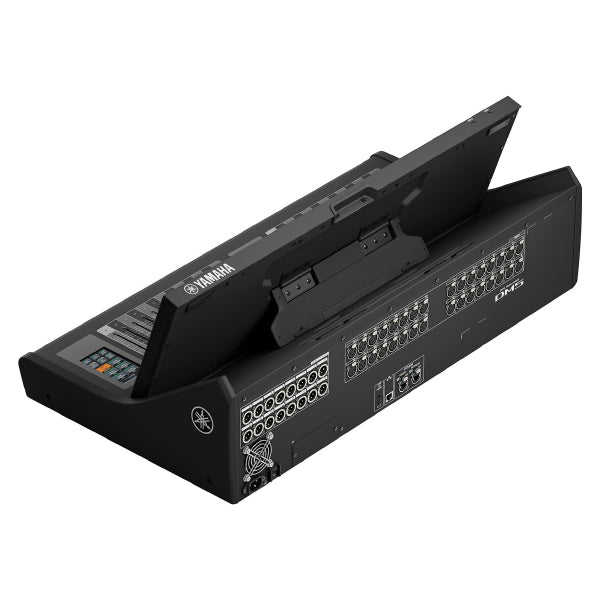

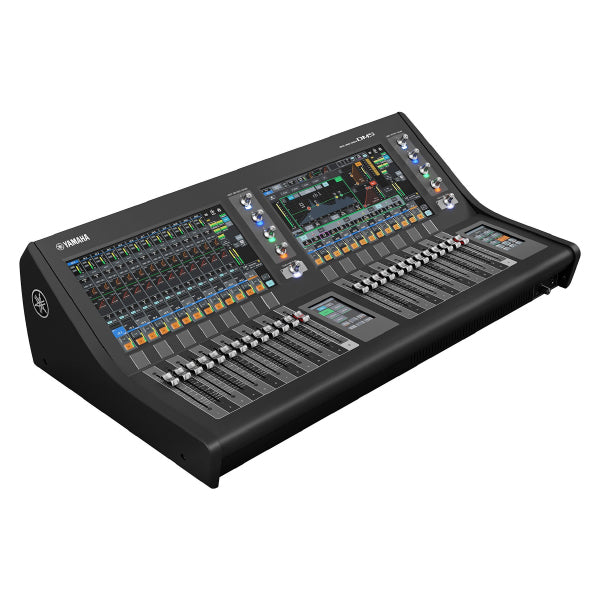

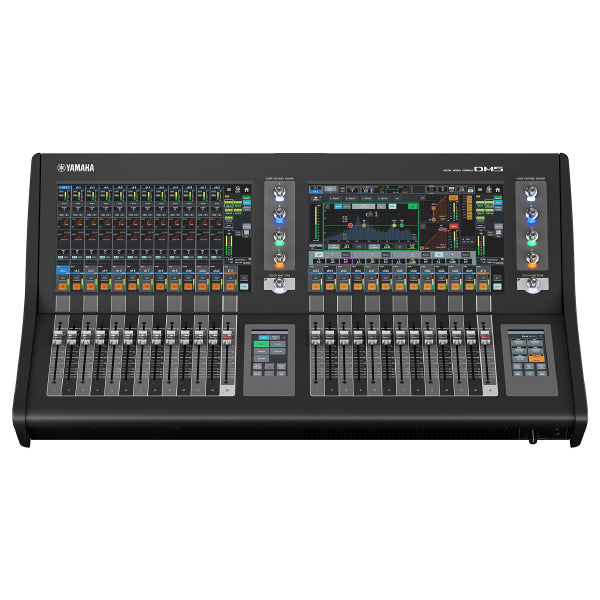

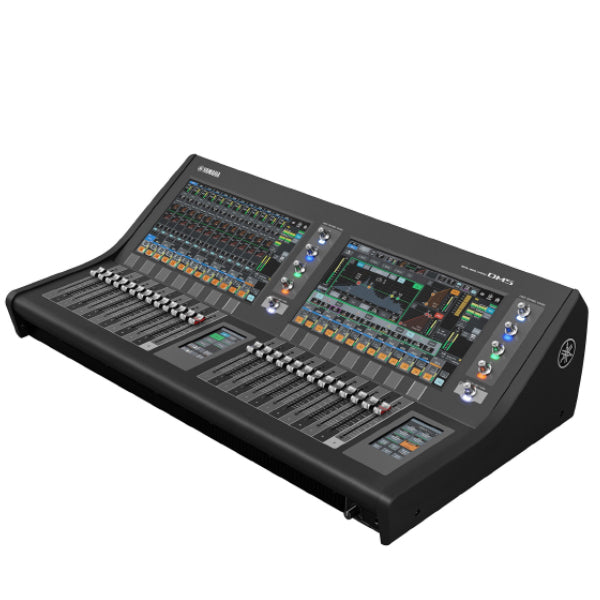

Yamaha DM5 60 Channel Professional Digital Mixing Console with Touchscreen and Bluetooth

The DM5 is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM5 is configured with 26 faders and a 2 x 13.3” + 2 x 4.3” multi-touch screen with glass keys.

Specifications :

• Type :  Digital Mixer
• Channels : 60
• Inputs - Mic Preamps : 32 x XLR
• Outputs - Main : 16 x XLR
• Inputs - Digital : 2 x EtherCon (Dante)
• Busses/Groups : 24 x mix, 1 x stereo, 12 x matrix, 12 x DCA
• Data I/O : 1 x Ethernet (network)
• Headphones : 1 x 1/4"
• USB : 3 x USB-C
• Computer Connectivity : USB (18x18), Ethernet
• I/O Expansion Slots : 1 x Slots Available
• Faders : 26 Motorized
• A/D Resolution : 96kHz
• Transport Controls : Yes
• DAW Control : Yes
• Screen : 2 x 13.3, 2 x 4.3" Touchscreens
• Power Source : Standard IEC AC Cable
• Manufacturer Part Number : DM5

Features :

• Input mixing channels: 60 mono
• Buses: 24 Mix + 12 Matrix + 2 Stereo
• Display: 13.3" multi-touch screen x 2, 4.3" multi-touch screen x 2
• Faders: 26 (12 + 1 + 12 +1)
• Analog I/O: 32 inputs / 16 outputs
• Dante: 64 in / 64 out
• Slot: PY Slot x 1
• USB Audio Interface: 18 in / 18 out
• Power consumption: 130 W
• Dimensions (W x H x D): 826 mm x 235 mm x 441 mm (32.5” x 9.3” x 17.4”)
• Net Weight: 21.5 kg (47.4 lb)
