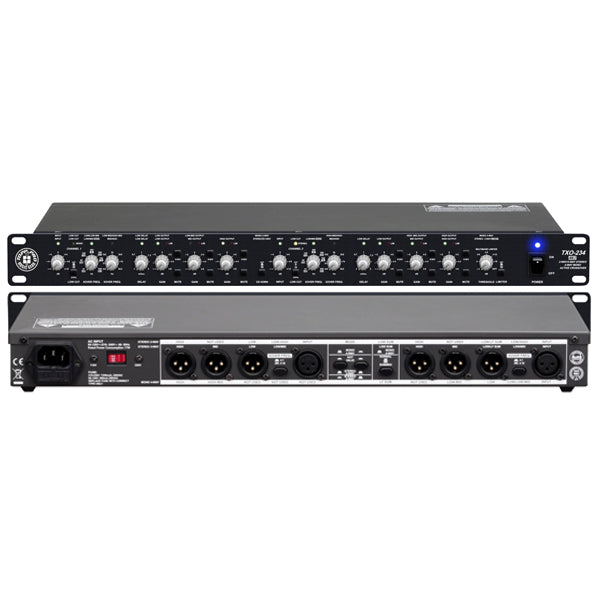

Topp Pro TXO-234 MKII 2 And 3 Ways Stereo 4 Way Mono Active Analog Crossover (TXO234)

Topp Pro TXO-234 MKII 2 And 3 Ways Stereo 4 Way Mono Active Analog Crossover (TXO234)

TXO-234 MKII is the 2nd generation of Topp Pro’s active analog crossover. This model is highly configurable for widest type of applications as it can be deployed in stereo 2-way, stereo 3-way and mono 4-way.  This crossover feature a world-class performance 24db per octave Linkwitz-Riley filters which provide high precision and absolute flat summed amplitude response with zero phase difference. To ensure best possible sound reproduction, the TXO-234 MKII come with advance feature Constant Directivity (CD) Horn correction to ensure the loudspeaker full capability being unleashed.

Features :

• High precision stereo 2-way / 3-way / 4-way mono crossover with limiters
• World-class performance 24 dB per octave Linkwitz-Riley filters
• Absolutely flat summed amplitude response, zero phase difference
• Individual output level controls for all bands
• Individual limiter on each output for optimal loudspeaker protection
• Individual output mutes for easy band adjustment
• Individual phase reverse switches for instant phase correction
• Switchable 25 Hz subsonic filter on each input for low frequency driver protection
• “Low Sum” function provides low-level mono output for subwoofer operation
• Adjustable time delay for phase alignment between drivers
• Constant Directivity (CD) Horn equalization for compensation
• Servo-balanced, gold-plated XLR connectors for all inputs and outputs
• Ultra-high precision Alps potentiometer for ultimate accuracy and durability
• Shielded toroidal mains transformer for minimal noise interference

Tech Specs :

• Channels: Stereo
• Modes: 2-way stereo, 3-way stereo, 4-way mono
• Filter Types: Linkwitz-Riley
• Filters: 24 dB/Octave
• Crossover Frequencies: Variable ; 44Hz-930Hz, 440Hz-9.3kHz
• Inputs: 2 x XLR
• Outputs: 3 x XLR (CH 1), 3 x XLR (CH 2)
• Rack Spaces:1U
