Topp Pro MXi.2422CFX 24 Channel Analog Mixer Built In DSP Effect with 100 Presets (MXi2422CFX)

Topp Pro MXi.2422CFX 24 Channel Analog Mixer Built In DSP Effect with 100 Presets (MXi2422CFX)

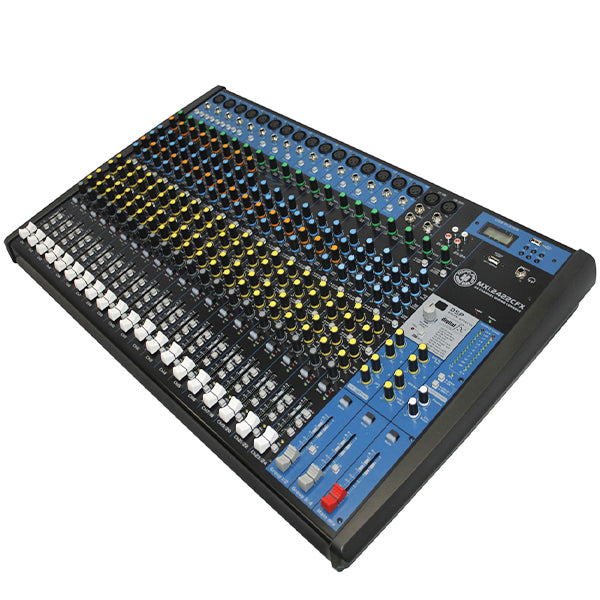

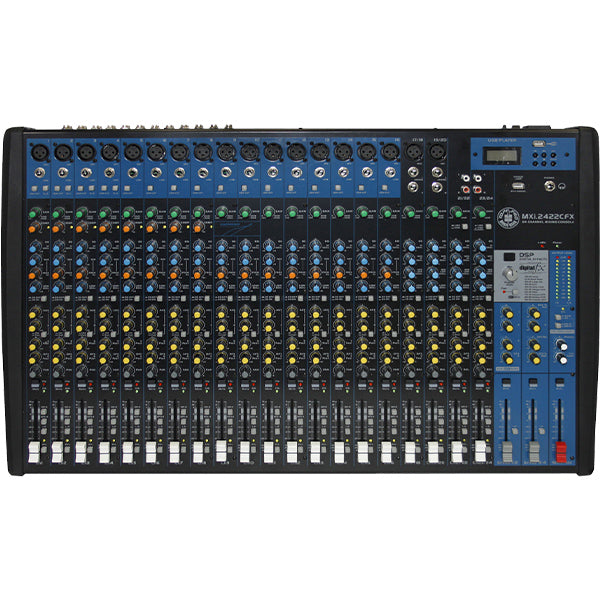

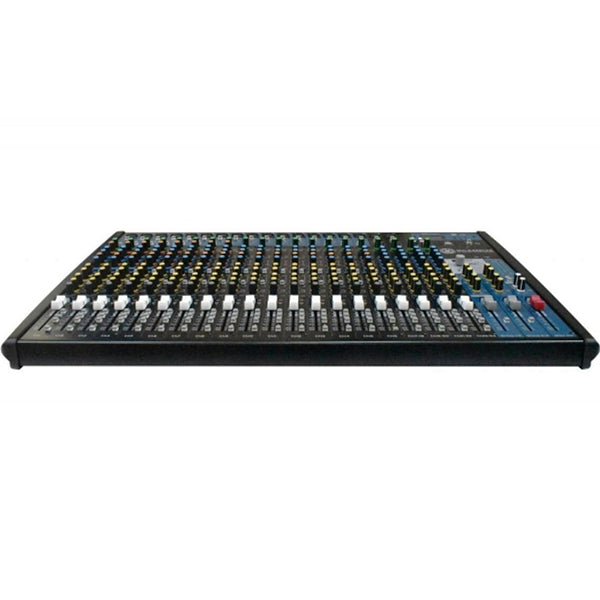

Topp Pro MXi.2422CFX is a high-performance analog mixing console designed for medium to large-scale live sound environments and professional studio recording. It provides a significant channel count with eighteen low-noise microphone preamplifiers that deliver high headroom and ultra-low distortion, each equipped with individual +48V phantom power switches. The heavy-duty steel construction and reinforced side panels ensure the unit remains durable during rigorous transport and intensive touring schedules.

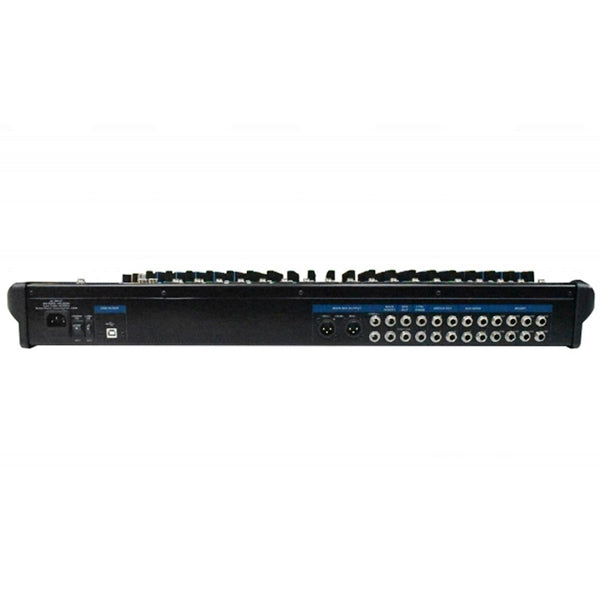

The master output section features a dual nine-band stereo graphic equalizer for precise room tuning and acoustic correction. A versatile output array includes balanced XLR and TRS main outputs, a dedicated mono output with a low-pass filter for subwoofers, and independent control room monitoring. The built-in USB audio interface enables high-fidelity stereo recording directly to a workstation and allows for seamless digital playback during intermissions. Internal power management components are engineered to provide stable, noise-free operation across a wide range of international voltage standards.

Specifications:

• Microphone input  :  XLR balanced
• Frequency response  :  10Hz to 55KHz,+/-3dB
• Distortion (THD+N)  :  <0.03% at +0dB ,22Hz~22KHz A-weighted
• Gain range  :  0dB to 50dB
• Max. Input  :  +21 dB
• LOW CUT  :  75Hz
• SNR  :  <-100dBr A-weighted
• Phantom power  :  +48V with switch control
• Line input  :  1/4” TRS with balanced
• Frequency response  :  10Hz to 55KHz,+/-3dB
• Distortion (THD+N)  :  <0.03% at +0dB ,22Hz~22KHz A-weighted
• Sensitivity range  :  +20dB~ -30dB
• Compressor  :  GAIN: 0~9dB / THRESHOLD: 20dB--->5dB
• Mic input  :  XLR with balanced
• Line input  :  1/4' TRS with balanced
• Frequency response  :  10Hz to 55KHz, +/-3dB
• Distortion (THD+N)  :  <0.03% at +0dB ,22Hz~22KHz A-weighted
• Sensitivity range  :  +20dBu~ -30dBu
• SNR  :  <-100dBr A-weighted
• RCA input  :  RCA with un-balanced
• Frequency response  :  10Hz to 55KHz,+/-3dB
• Distortion (THD+N)  :  <0.03% at +0dB ,22Hz~22KHz A-weighted
• Sensitivity range  :  +20dBu~ -30dBu
• SNR :   <-100dBr A-weighted
• Channel  :  Mono / Stereo
• High  :  +/-15dB @12KHz / +/-15dB @12KHz
• Mid  :  +/-15dB @100KHz -8KHz / +/-15dB @3KHz or +/-15dB @500Hz
• Low  :  +/-15dB @80Hz / +/-15dB @80Hz
• Microphone input  :  1.8K Ω
• All other input  :  10K Ω or greater
• Tape out  :  1K Ω
• All other out  :  120 Ω
• A/D and D/A converters  :  24bit
• Type of effects  :  Vocal, Small Room, Large Hall, Echo, Echo+Verb, Flange+Verb, Plate, Chorus+GTR, Rotary+GTR, Tremolo+GTR
• Controls  :  100 position preset selector(10 preseter * 10 variation), Mute switch & Foot-switching with LED indicator
• FOOT-SW  :  TIP: FX - SLEEVE: GND
• Max. MAIN MIX output  :  +26dBu XLR balanced (+20dBu un-balanced)
• AUX range  :  OFF to +10dB
• Fader range  :  OFF to +10dB
• PHONES/CONTROL-ROOM range  :  OFF to +10dB
• Hum & Noise  :  <-80dB @ 20Hz~22KHz A-weighted, 1 channel & MAIN level:0dB, the other: Minimum
• Crosstalk  :  <-80dB @ 0dB 20Hz~22KHz A-weighted, MAIN level:0dB, the other :minimum
• Main voltage  :  100-240V~ 50/60Hz
• Fuse  :  T1.25A AC250V
• Rated power consumption  :  30W
