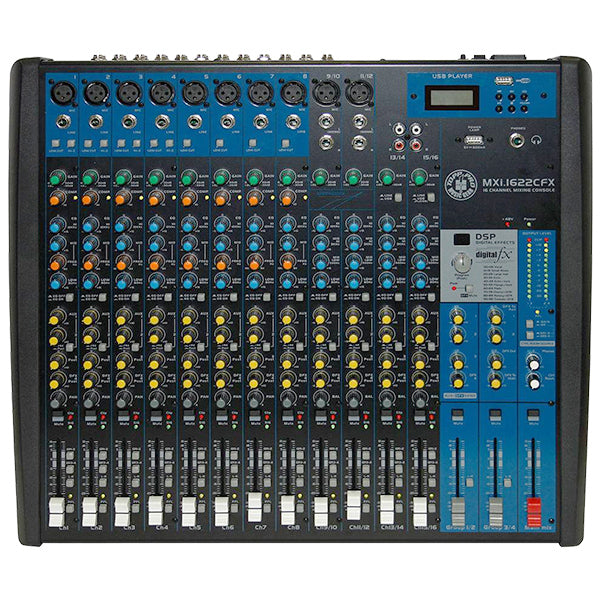

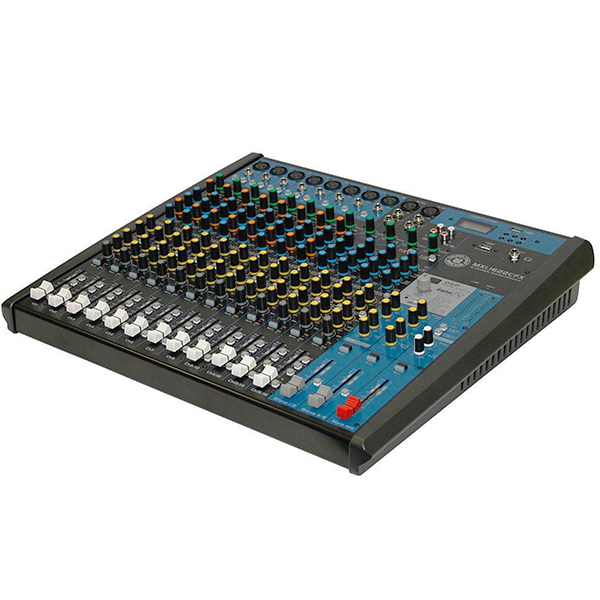

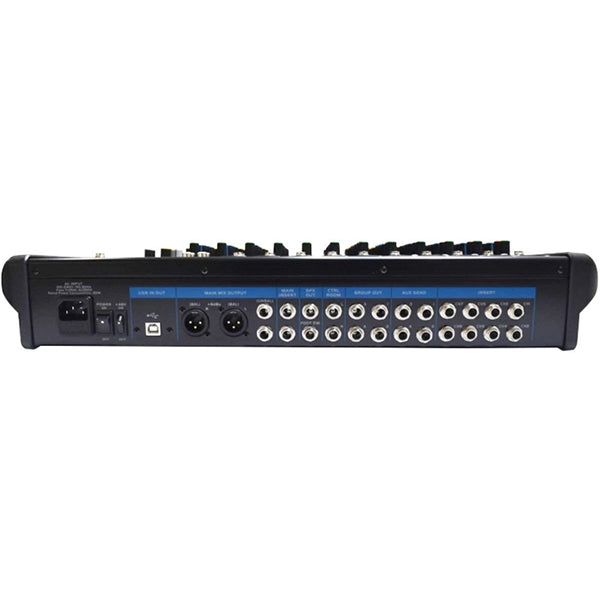

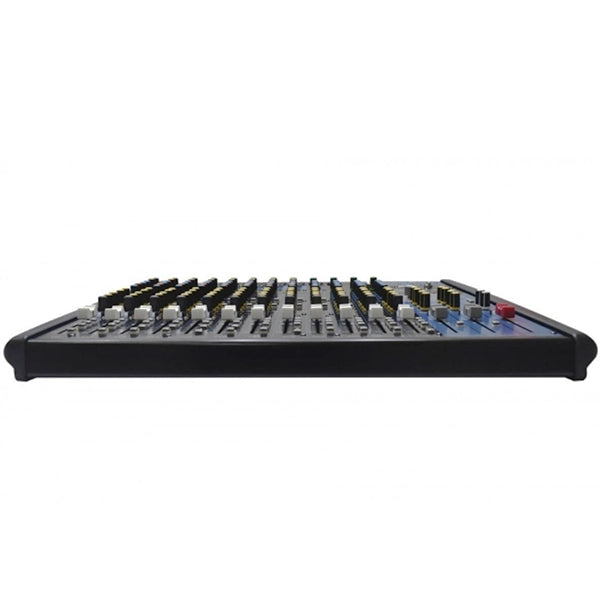

Topp Pro MXi.1622CFX 16 Channel Analog Mixer Built In DSP Effect with 100 Presets (MXi1622CFX)

Topp Pro MXi.1622CFX 16 Channel Analog Mixer Built In DSP Effect with 100 Presets (MXi1622CFX)

The Topp Pro MXi.1622CFX is a professional-grade analog mixing console designed for both live sound reinforcement and studio recording applications. It features a high-headroom design with twelve low-noise microphone preamplifiers that provide transparent audio reproduction and 48V phantom power for condenser microphones. The console is built with a rugged chassis to withstand the rigors of touring while maintaining a layout that is intuitive for sound engineers.

A standout feature of the MXi.1622CFX is the integrated 24-bit digital multi-effects processor, which offers 100 presets including reverbs, delays, and modulation effects to enhance the mix without requiring external gear. To further manage dynamics, the first several mono channels include dedicated one-knob compressors that simplify the process of leveling out vocals or instruments.

Specifications:

• Microphone input  :  XLR with balanced
• Frequency response   : 10Hz to 55KHz,+/-3dB
• Distortion (THD+N)  :  <0.03% at +0dB ,22Hz~22KHz A-weighted
• Gain range  :  0dB to 50dB
• Max. Input  :  +21 dB
• LOW CUT  :  75Hz
• SNR :   <-100dBr A-weighted
• Phantom power  :  +48V with switch control
• Line input  :  1/4” TRS with balanced
• Frequency response  :  10Hz to 55KHz,+/-3dB
• Distortion (THD+N)   : <0.03% at +0dB ,22Hz~22KHz A-weighted
• Sensitivity range  :  +20dB~ -30dB
• Compressor  :  GAIN: 0~9dB / THRESHOLD: 20dB--->5dB
• Mic input  :  XLR with balanced
• Line input  :  1/4' TRS with balanced
• Frequency response  :  10Hz to 55KHz, +/-3dB
• Distortion (THD+N)   : <0.03% at +0dB ,22Hz~22KHz A-weighted
• Sensitivity range  :  +20dBu~ -30dBu
• SNR  :  <-100dBr A-weighted
• RCA input  :  RCA with un-balanced
• Frequency response  : 10Hz to 55KHz,+/-3dB
• Distortion (THD+N)  :  <0.03% at +0dB ,22Hz~22KHz A-weighted
• Sensitivity range  :  +20dBu~ -30dBu
• SNR  :  <-100dBr A-weighted
• Channel  :  Mono / Stereo
• High  :  +/-15dB @12KHz / +/-15dB @12KHz
• Mid   : +/-15dB @100KHz -8KHz / +/-15dB @3KHz or +/-15dB @500Hz
• Low  :  +/-15dB @80Hz / +/-15dB @80Hz
• Microphone input  :  1.8K Ω
• All other input  :  10K Ω or greater
• Tape out  :  1K Ω
• All other out  :  120 Ω
• DSP section (options)
• A/D and D/A converters  :  24bit
• Type of effects  :  Vocal, Small Room, Large Hall, Echo, Echo+Verb, Flange+Verb, Plate, Chorus+GTR, Rotary+GTR, Tremolo+GTR
• Controls   : 100 position preset selector(10 preseter * 10 variation), Mute switch & Foot-switching with LED indicator
• FOOT-SW  :  TIP: FX - SLEEVE: GND
• Max. MAIN MIX output  :  +26dBu XLR balanced (+20dBu un-balanced)
• AUX range  :  OFF to +10dB
• Fader range  :  OFF to +10dB
• PHONES/CONTROL-ROOM range  :  OFF to +10dB
• Hum & Noise  :  <-80dB @ 20Hz~22KHz A-weighted, 1 channel & MAIN level:0dB, the other: Minimum
• Crosstalk   : <-80dB @ 0dB 20Hz~22KHz A-weighted, MAIN level:0dB, the other :minimum
• Main voltage  :  100-240V~ 50/60Hz
• Fuse  :  T1.25A AC250V
• Rated power consumption  :  30W
