Topp Pro MXi.1422CFX 14 Channel Analog Mixer Built in with DSP Effect and 100 Presets (MXi1422CFX)

Topp Pro MXi.1422CFX 14 Channel Analog Mixer Built in with DSP Effect and 100 Presets (MXi1422CFX)

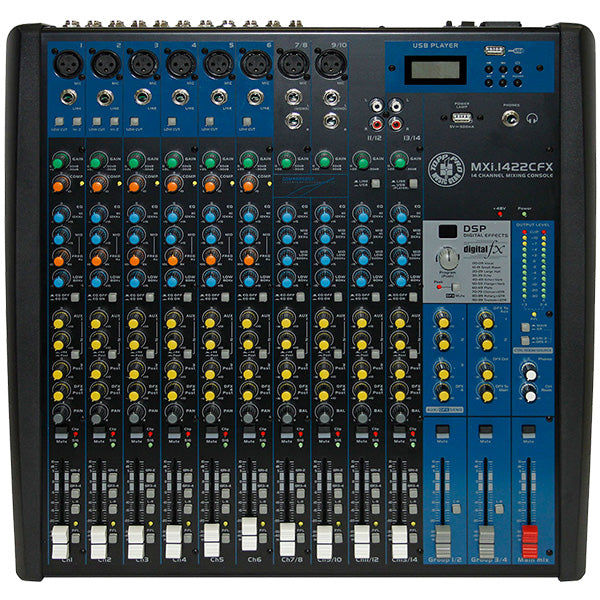

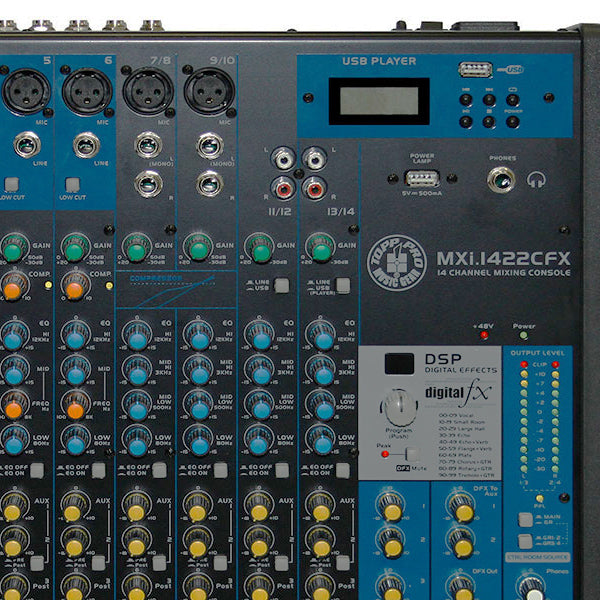

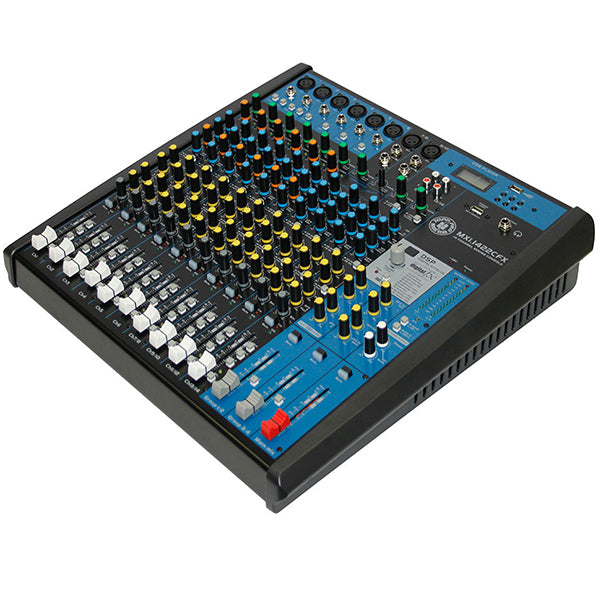

Topp Pro MXi.1422CFX is a high-performance 14-channel analog mixing console designed to provide expansive routing and professional audio control for live sound and studio recording. This mixer features six mono input channels equipped with high-headroom microphone preamplifiers and four dedicated one-knob compressors for instant dynamic control over vocals and instruments. Along with these mono inputs, the unit includes four stereo channels to accommodate a wide array of line-level sources.

For precise tonal adjustment, the mono channels are built with a three-band equalizer featuring a sweepable midrange, while the stereo channels utilize a fixed four-band equalization system. The console is integrated with a 24-bit digital effects processor offering 100 studio-quality presets and a built-in USB audio interface that supports two-track recording and playback via a computer. Furthermore, the unit features an on-board MP3 player via a USB-A port and comprehensive routing options including four auxiliary sends, four subgroup buses, and balanced XLR main outputs, all contained within a durable, road-ready metal chassis.

Specifications:

• Microphone input  :  XLR with balanced
• Frequency response  :  10Hz to 55KHz,+/-3dB
• Distortion (THD+N)  :  <0.03% at +0dB ,22Hz~22KHz A-weighted
• Gain range  :  0dB to 50dB
• Max. Input  :  +21 dB
• LOW CUT  :  75Hz
• SNR   : <-100dBr A-weighted
• Phantom power  :  +48V with switch control
• Line input  :  1/4” TRS with balanced
• Frequency response  :  10Hz to 55KHz,+/-3dB
• Distortion (THD+N)  :  <0.03% at +0dB ,22Hz~22KHz A-weighted
• Sensitivity range  :  +20dB~ -30dB
• Compressor  :  GAIN: 0~9dB / THRESHOLD: 20dB--->5dB
• Stereo input channels
• Mic input  :  XLR with balanced
• Line input  :  1/4' TRS with balanced
• Frequency response   : 10Hz to 55KHz, +/-3dB
• Distortion (THD+N)  :  <0.03% at +0dB ,22Hz~22KHz A-weighted
• Sensitivity range  :  +20dBu~ -30dBu
• SNR  :  <-100dBr A-weighted
• RCA input  :  RCA with un-balanced
• Frequency response  :  10Hz to 55KHz,+/-3dB
• Distortion (THD+N) :   <0.03% at +0dB ,22Hz~22KHz A-weighted
• Sensitivity range  :  +20dBu~ -30dBu
• SNR :   <-100dBr A-weighted
• Channel  :  Mono / Stereo
• High :   +/-15dB @12KHz / +/-15dB @12KHz
• Mid  :  +/-15dB @100KHz -8KHz / +/-15dB @3KHz or +/-15dB @500Hz
• Low  :  +/-15dB @80Hz / +/-15dB @80Hz
• Microphone input  :  1.8K Ω
• All other input  :  10K Ω or greater
• Tape out   : 1K Ω
• All other out :   120 Ω
• A/D and D/A converters  :  24bit
• Type of effects :   Vocal, Small Room, Large Hall, Echo, Echo+Verb, Flange+Verb, Plate, Chorus+GTR, Rotary+GTR, Tremolo+GTR
• Controls  :  100 position preset selector(10 preseter * 10 variation), Mute switch & Foot-switching with LED indicator
• FOOT-SW  :  TIP: FX - SLEEVE: GND
• Max. MAIN MIX output  :  +26dBu XLR balanced (+20dBu un-balanced)
• AUX range  :  OFF to +10dB
• Fader range  :  OFF to +10dB
• PHONES/CONTROL-ROOM range   : OFF to +10dB
• Hum & Noise   : <-80dB @ 20Hz~22KHz A-weighted, 1 channel & MAIN level:0dB, the other: Minimum
• Crosstalk  :  <-80dB @ 0dB 20Hz~22KHz A-weighted, MAIN level:0dB, the other :minimum
• Main voltage  :  100-240V~ 50/60Hz
• Fuse  :  T1.25A AC250V
• Rated power consumption : 30W
