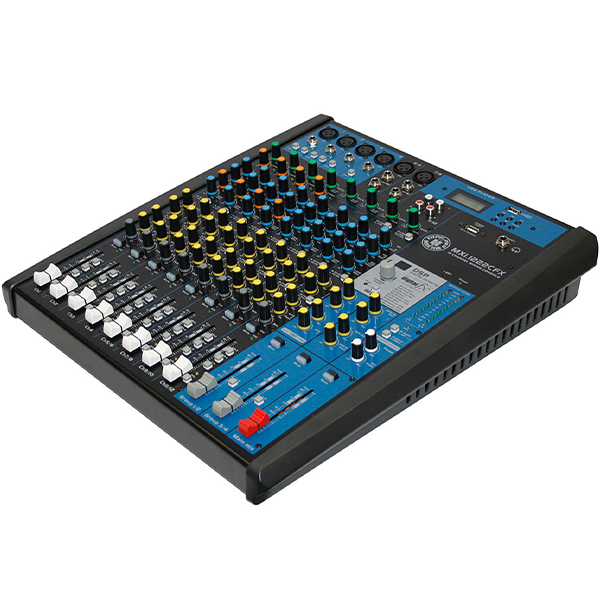

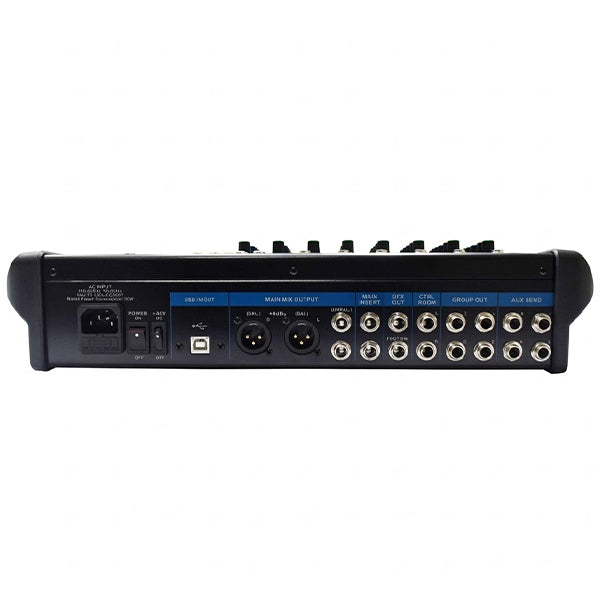

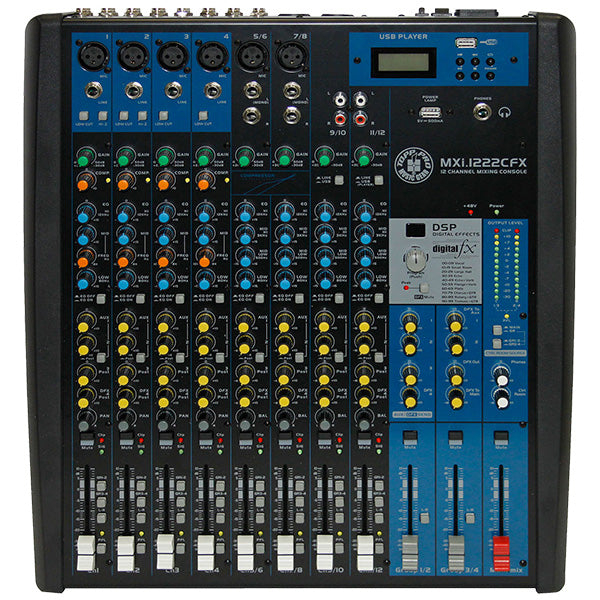

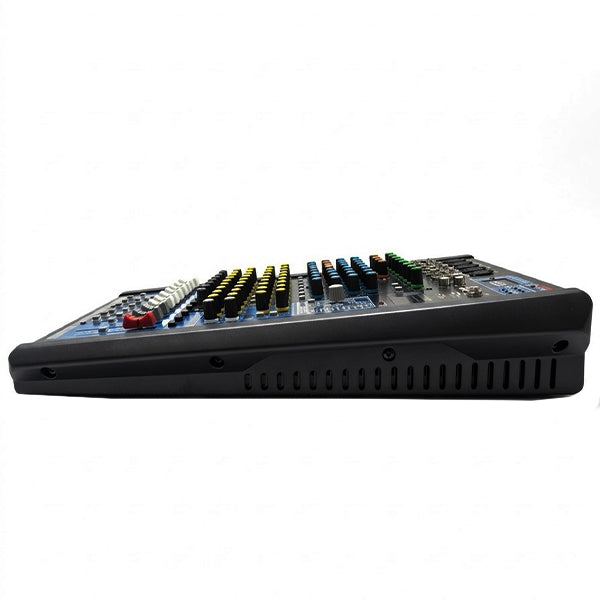

Topp Pro MXi.1222CFX 12 Channel Analog Mixer Built in DSP Effect with 100 Presets (MXi1222CFX)

Topp Pro MXi.1222CFX 12 Channel Analog Mixer Built in DSP Effect with 100 Presets (MXi1222CFX)

Topp Pro MXi.1222CFX is a professional 12-channel mixing console designed for high-performance live sound and studio applications. This mixer features four mono inputs equipped with low-noise microphone preamps and balanced line connectors, along with four stereo input channels to accommodate a variety of audio sources. A standout technical feature is the integrated 24-bit digital effects processor which offers 100 studio-grade presets including reverbs, delays, and choruses for creative sound enhancement.

For precise frequency management, the mono channels utilize a 3-band equalizer with a sweepable midrange, while the stereo channels provide fixed 4-band equalization. The console includes a built-in USB audio interface for two-track recording and playback via computer, and a dedicated USB-A port for playing MP3 files directly from a flash drive. To ensure versatile signal routing, the unit is built with two auxiliary sends, two group buses, and balanced XLR main outputs, all housed in a rugged chassis suitable for demanding tour environments.

Specifications:

• Total Channels: 12 Inputs.
• Microphone input :  XLR with balanced
• Frequency response  :  10Hz to 55KHz,+/-3dB
• Distortion (THD+N)  :  <0.03% at +0dB ,22Hz~22KHz A-weighted
• Gain range  :  0dB to 50dB
• Max. Input  :  +21 dB
• LOW CUT  :  75Hz
• SNR  :  <-100dBr A-weighted
• Phantom power  :  +48V with switch control
• Line input  :  1/4” TRS with balanced
• Frequency response  :  10Hz to 55KHz,+/-3dB
• Distortion (THD+N)  :  <0.03% at +0dB ,22Hz~22KHz A-weighted
• Sensitivity range  :  +20dB~ -30dB
• Compressor  :  GAIN: 0~9dB / THRESHOLD: 20dB--->5dB
• Mic input  :  XLR with balanced
• Line input  :  1/4' TRS with balanced
• Frequency response  :  10Hz to 55KHz, +/-3dB
• Distortion (THD+N)  :  <0.03% at +0dB ,22Hz~22KHz A-weighted
• Sensitivity range  :  +20dBu~ -30dBu
• SNR  :  <-100dBr A-weighted
• RCA input  :  RCA with un-balanced
• Frequency response  :  10Hz to 55KHz,+/-3dB
• Distortion (THD+N)  : <0.03% at +0dB ,22Hz~22KHz A-weighted
• Sensitivity range :   +20dBu~ -30dBu
• SNR  :  <-100dBr A-weighted
• Channel  :  Mono / Stereo
• High  :  +/-15dB @12KHz / +/-15dB @12KHz
• Mid  :  +/-15dB @100KHz -8KHz / +/-15dB @3KHz or +/-15dB @500Hz
• Low :   +/-15dB @80Hz / +/-15dB @80Hz
• Microphone input  :  1.8K Ω
• All other input  :  10K Ω or greater
• Tape out  :  1K Ω
• All other out   : 120 Ω
• A/D and D/A converters  :  24bit
• Type of effects  :  Vocal, Small Room, Large Hall, Echo, Echo+Verb, Flange+Verb, Plate, Chorus+GTR, Rotary+GTR, Tremolo+GTR
• Controls  :  100 position preset selector(10 preseter * 10 variation), Mute switch & Foot-switching with LED indicator
• FOOT-SW  :  TIP: FX - SLEEVE: GND
• Max. MAIN MIX output  :  +26dBu XLR balanced (+20dBu un-balanced)
• AUX range  :  OFF to +10dB
• Fader range  :  OFF to +10dB
• PHONES/CONTROL-ROOM range  :  OFF to +10dB
• Hum & Noise  :  <-80dB @ 20Hz~22KHz A-weighted, 1 channel & MAIN level:0dB, the other: Minimum
• Crosstalk  :  <-80dB @ 0dB 20Hz~22KHz A-weighted, MAIN level:0dB, the other :minimum
• Main voltage  :  100-240V~ 50/60Hz
• Fuse   : T1.25A AC250V
• Rated power consumption  :  30W
