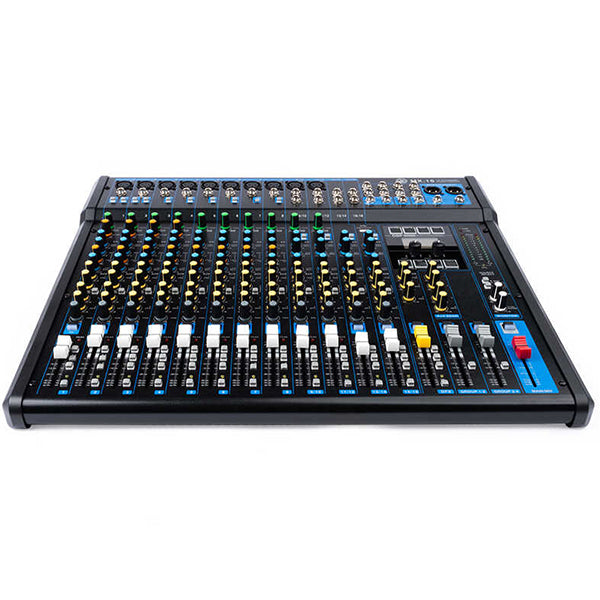

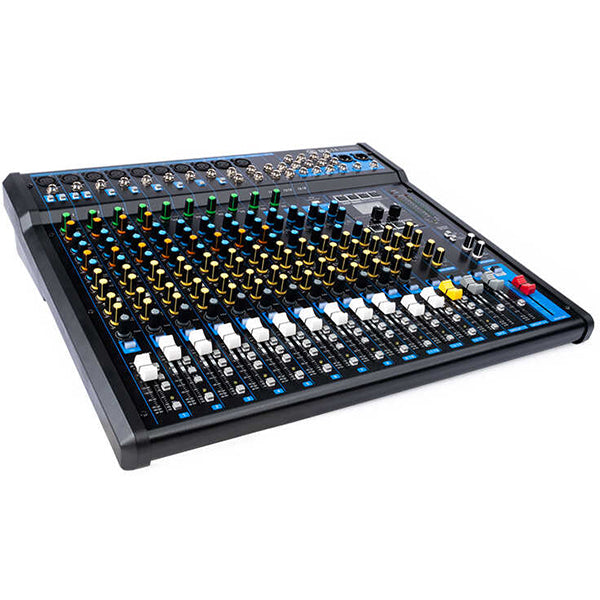

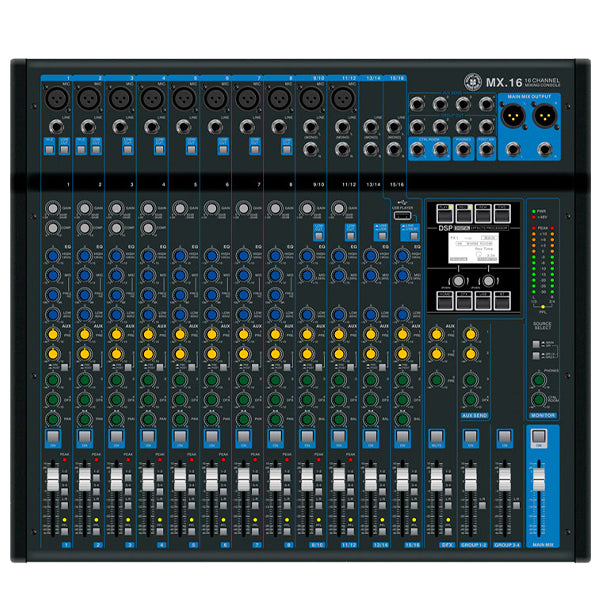

Topp Pro MX.16 16 Channel Analog Mixer Console with USB and Bluetooth (MX16)

Topp Pro MX.16 16 Channel Analog Mixer Console with USB and Bluetooth (MX16)

The Topp Pro MX.16 is a versatile 16-channel analog mixing console designed to provide professional-grade audio control for both live performances and studio recording environments. It features high-quality microphone preamps and ultra-low noise circuitry to ensure clean signal reproduction. The mixer is equipped with a comprehensive 24-bit digital effects processor that offers 100 presets, allowing users to add depth and texture to their mix with various reverbs, delays, and modulations. For precise tonal shaping, each channel includes a 3-band equalizer, with sweepable midrange control on the mono channels to help target specific frequencies.

Connectivity is a key strength of the unit, as it includes a USB interface for direct audio recording and playback via a computer. Additionally, the console provides flexible routing options through multiple auxiliary sends and dedicated group buses, making it an ideal hub for managing complex audio setups while maintaining a compact and durable form factor.

Specifications:

• Mixing capability  :  On-board processors: 24 programs, PARAMETER control: 2, FOOT SW: 1
• I/O  :  Phantom Power +48V / Digital: USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
• Input Channels  :  Mono [MIC/LINE]: 8, Mono/Stereo [MIC/LINE]: 4, Stereo [LINE]: 4
• Output Channels  :  STEREO OUT: 2, MONITOR OUT: 1, PHONES: 1, AUX SEND: 4, GROUP OUT: 4
• Bus :   Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
• Input Channel Function :   HPF: 120 Hz, 12 dB/oct (Mono/Stereo: MIC only) / COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec / EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 12 kHz shelving / EQ MID: Gain: +12 dB/-12 dB, Frequency: Mono 100 Hz – 8 kHz peaking, Stereo 2.5 kHz peaking / EQ LOW: Gain: +15 dB/-15 dB, Frequency: 80 Hz shelving / PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping / Level Meter 2x
• Total harmonic distortion  :  0.03 % @ +0dBu (20 Hz to 20kHz), GAIN knob: Min.
• Frequency response  :  +0.5 dB/-1.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min.
• Hum & noise level :   Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) / Residual output noise: -100
• Crosstalk  :  -85 dB
• Power requirements  :  AC 100 – 240 V, 50 / 60 Hz
• Power consumption  :  23 W
• Dimensions :   W: 510.4mm / H: 111.4mm / D: 439.5mm
