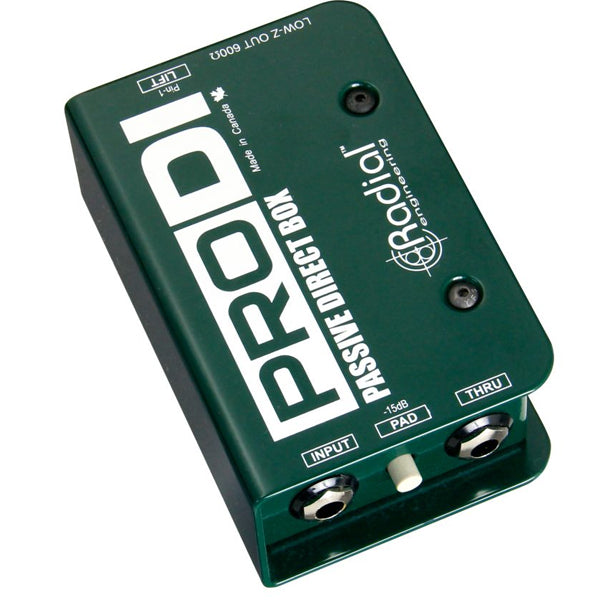

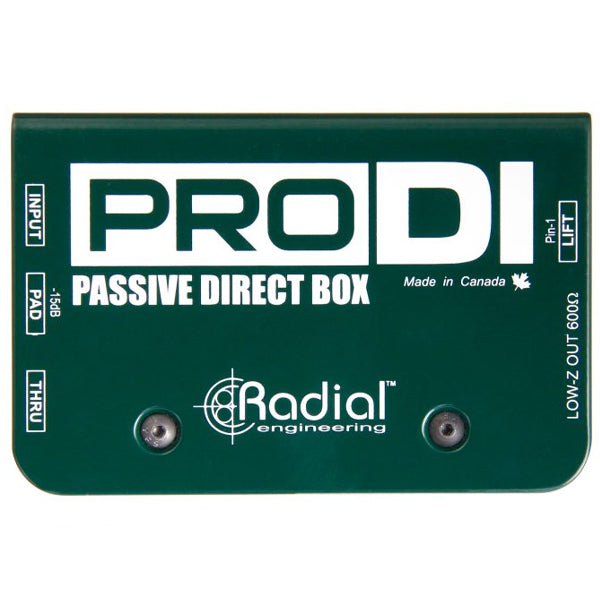

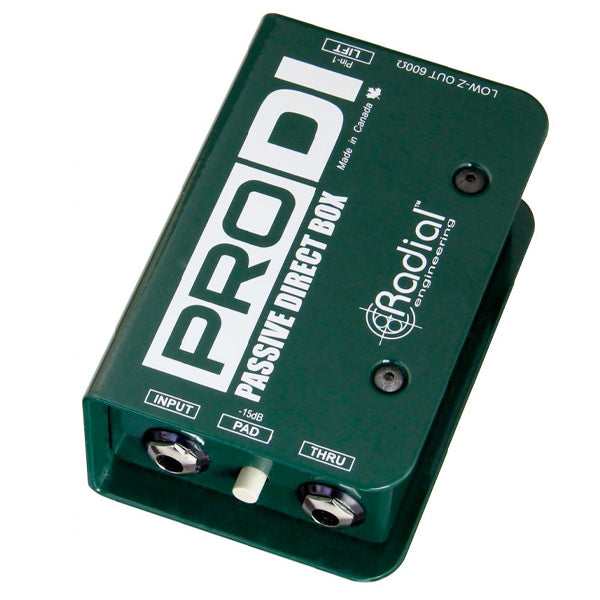

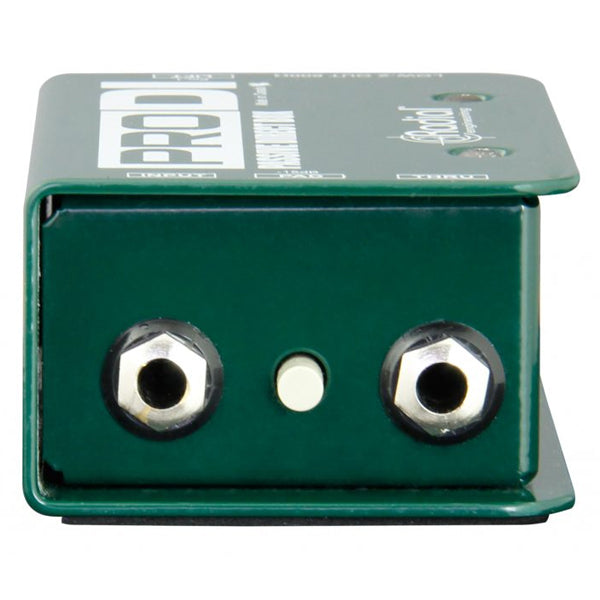

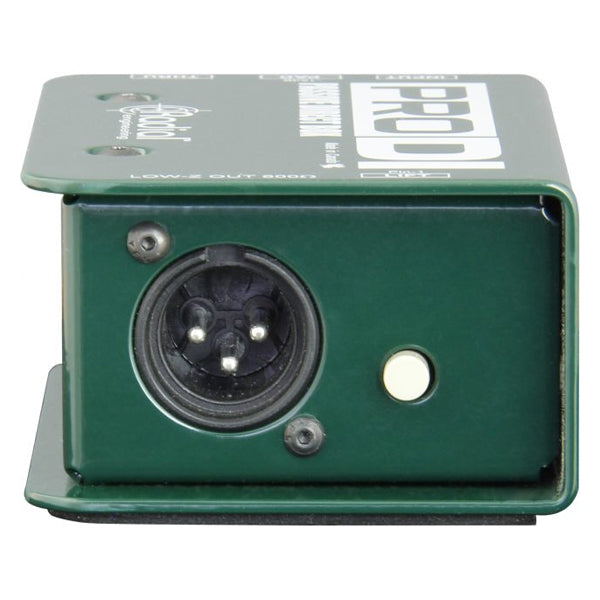

Radial Engineering ProDI Plug and Play Single Channel Passive Direct Box

Radial Engineering ProDI Plug and Play Single Channel Passive Direct Box

The ProDI is a passive direct box designed for use on stage or in home recording studios, with the ability to handle high output instruments without distortion, and a transformer-isolated output to eliminate noise from ground loops.

World class DI
The heart of the ProDI is a custom wound Radial transformer. It features an exceptionally high 140kΩ input impedance to reduce loading while enabling the ProDI to handle extreme signal levels at all frequencies without distortion. This is further improved upon with an internal MuMETAL® shield to protect against electromagnetic fields that can cause unshielded transformers to distort.

Features:

• Audio circuit type : Passive, transformer based
• Transformer : Eclipse ET-DB2, 12:1 ratio
• Number of channels : Single channel (mono)
• Frequency response : 20Hz ~ 18.5KHz (± 0.2dB)
• Dynamic range : 128dB
• Total harmonic distortion : 0.01% from 20Hz~20kHz @-10dB
• Phase Deviation : 1° @ 100Hz; 8° @ 20Hz
• Input Impedance : 140k Ohms, unbalanced
• Output Impedance : 150 Ohms, balanced
• Maximum Input : +18dB @ 20Hz
