Midiplus TITAN Series Multi Function USB Audio Interface with OTG Port (Q3 Q6)

Midiplus TITAN Series Multi Function USB Audio Interface with OTG Port (Q3 Q6)

TITAN Q3
TITAN Q3 is a 4-in/4-out audio interface equipped with input/output signal and clipping indicators, 48V and Instrument mode status indicators, an OTG port, which all delicate to provide a high-quality audio experience.

Otg-Imax
TITAN Q3's OTG-IMAX technology provides up to 140dB of dynamic range, allowing users to apply recording-grade sound quality to live broadcasts through the OTG port, delivering a more realistic and clearer listening experience.

Combo input
TITAN Q3 features an XLR/TRS combo input, which allows for the connection of microphones, instruments, and line-level devices. This feature makes the device suitable for both recording and performing, whether in a professional studio setting or for live streaming on a mobile device.

Titan Artist Control
The TITAN Q3 includes the Titan Artist Control driver control panel. It features bidirectional synchronization of the user control interface between software and hardware.This allows users to quickly switch between recording, live streaming, gaming, and audio-visual scenarios with a single click.

32-bit/192kHz
The TITAN Q3 utilizes innovative technologies to provide high-precision and high-fidelity sound resolution.

Two Headphone Outputs
Features both 3.5mm and 6.35mm headphone outputs, with a dynamic range of up to 126db

Real Time Observation
With signal and clipping indicators for real time observation of input and output signals

Features :

• 4-in/4-out (Analog 2-in/2-out, OTG 2-in/2-out)
• 32-bit/192kHz audio resolution
• XLR/TRS combo input with 48V control and gain control
• TRS input jack, suitable for instrument or line level device
• With signal and clipping indicators for real-time observation of input and output signals
• The OTG port can charges mobile devices when connected to DC power
• Software/hardware bi-directional synchronized user control interface

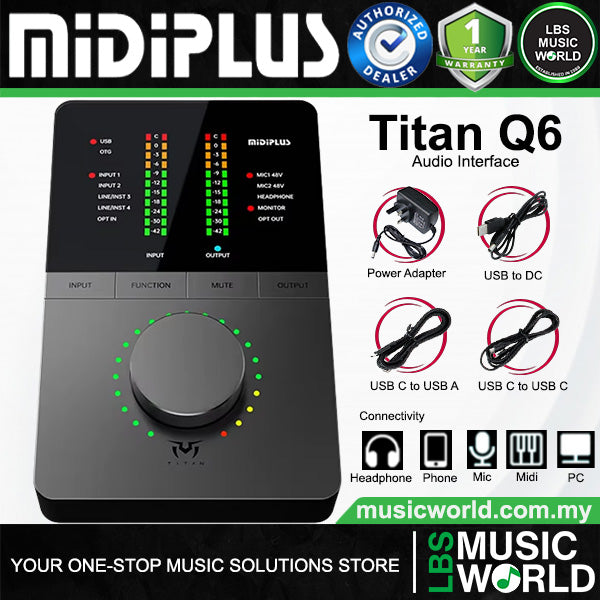

TITAN Q6
Sound of TITAN
TITAN Q6 is a high-end audio interface that utilizes MIDIplus newly designed analog and digital circuitry to achieve the highest precision and fidelity.

Powerful Performance
TITAN Q6 offers powerful performance and advanced technology, enabling users to record or perform at their best.This applies whether they are recording songs in a professional studio or capturing live streaming on their mobile phones.

Maximum support
24bit / 192kHz audio resolution

TITAN Q6 is a USB audio interface with 14 inputs and 16 outputs. It features 4 channel level meters, a built-in quick select button, a multi-function control knob, a USB-A and USB-C hub, an OTG port, and a 3.5mm phone jack, which all delicate to provide a high-quality audio experience.

USB HUB
TITAN Q6 features both USB-A and USB-C ports, allowing you to connect your MIDI keyboard and other USB devices.

Optical input/output
Support ADAT IN/OUT or S/PDIF IN/OUT

Combo input
2 Mic/Line/Hi-Z combo inputs with a gain range of up to 65dB, ensuring optimal performance from a wide range of microphones. This makes it suitable for recording or performing, whether in a professional studio or live streaming on a mobile device.

Newly designed Titan Artist Control
TITAN is equipped with the newly designed Titan Artist Control control panel.It features bidirectional synchronization of the user control interface in software and hardware. This allows you to quickly switch between recording, live streaming, gaming, and audio-visual scenarios with a single click.

TITAN Q6 utilizes variable impedance technology, enabling it to be compatible with 99% of headphones available in the market. TITAN Q6 includes both a 6.35mm and a 3.5mm stereo headphone output. The headphone output can be set toeither high or low impedance to improve sound quality.

Innovative digital OTG-iMAX. Provide extreme high dynamic range of 140dB.
TITAN Q6 offers exceptional studio sound quality and performance for professional recording. Its frequency response distribution is balanced, flat, and true to the original audio content. With the OTG Port, users can apply the recording level sound quality to live broadcasts on their computer or cell phone, providing the audience with a clearer and more realistic listening experience.

Features :

• 14 in 16 out (4 analog inputs and 6 analog outputs, 10 digital inputs and 10 digital outputs)
• 24-bit/192kHz audio interface (S/PDIF&ADAT can support up to 24bit/96kHz)
• Two channels of XLR/TRS mixed input with independent control of 48V phantom power and gain adjustment
• Main output can be set as balanced or unbalanced
• Headphone can be set as impedance or low-impedance
• High power/low power mode for different usage scenarios
• Independent input/output LED level meters for real-time observation
• OTG interface with power supply for charging mobile devices
• Dual USB-A and USB-C ports on the USB Hub for connecting external MIDI keyboards and other devices
• Bidirectional synchronization of user control interface in software and hardware
• USB Type-C interface
• Aluminum alloy body
