HH Electronics TNA-DF1 Portable Line Array System Roller Wheeled Dolly Trolley Frame for TNS-1200S

HH Electronics TNA-DF1 Portable Line Array System Roller Wheeled Dolly Trolley Frame for TNS-1200S

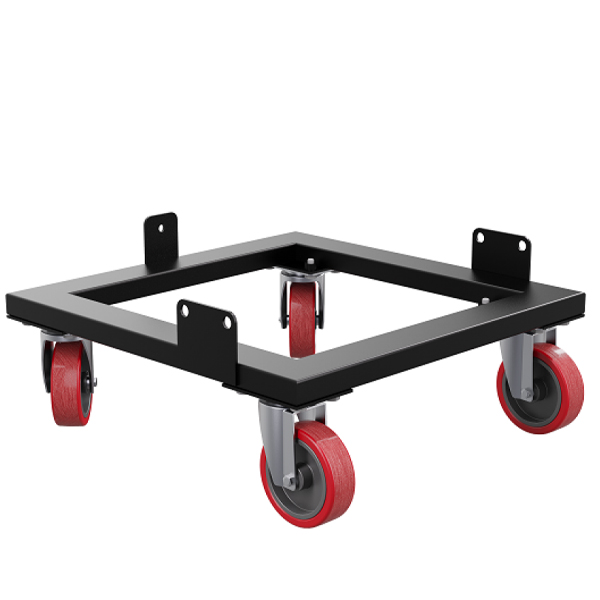

The TNA-DF1 solid steel dolly frame attaches securely to the TNS-1200s passive sub woofer to transform the TNA system into a fully portable line array.

The TNA-1200S is secured to theTNA-DF1 using M8 x 20 hex bolts included.

Brakes are to be engaged on the rear wheels once the system has been suitably positioned.

See TNA-1200S/TNA-2051 user manual for more information.

For added safety, it is strongly recommended that the audio connections and mechanical fixing are checked periodically.

Specifications :

• Model :TNA-DF1
• Mounting Type :Five M8mounting points hold the frame securely to the cabinet
• Castors :100mm heavy duty PUcastor. Two fixed, two omni-directional with brakes
• Unit dimensions (HWD) : 206 x 457 x 453mm, 8.1" x 18" x 17.8"
• Unit weight : 10.8Kg, 23.8 lbs
