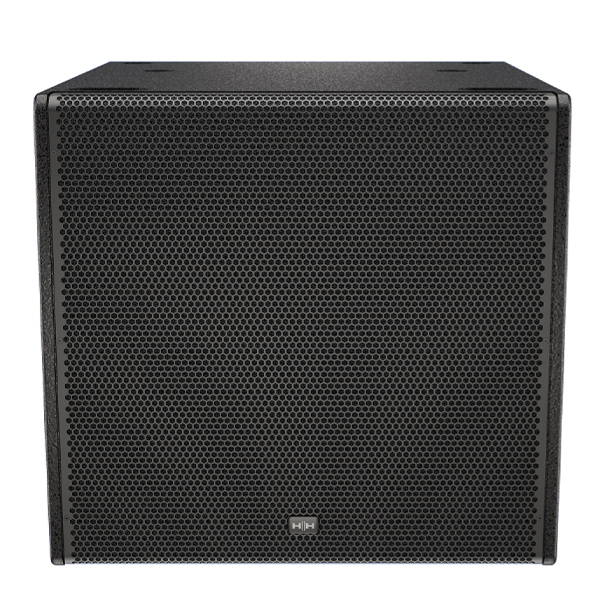

HH Electronics TNA-1800SA 4000 Watt 18 Inch Active Powered Subwoofer (TNA1800SA TNA 1800SA)

HH Electronics TNA-1800SA 4000 Watt 18 Inch Active Powered Subwoofer (TNA1800SA TNA 1800SA)

The TNA-1800SA Active subwoofer features a HH designed 18-inch low frequency woofer with exceptional high output. Equipped with integrated rigging hardware, the TNA-1800SA can be installed quickly and easily. The TNA-1800SA offers a max SPL of 138 dB and offers a frequency response as low as 32Hz. The TNA-1800SA offers an ideal venue installation or point source solution. Ideal for venues, schools, sports, gyms, hotels and more.

Specification :

• System Type : 18-inch Active Subwoofer, Direct Radiating, Bass Reflex
• Frequency Response (-10) : 32Hz - 100Hz
• Frequency Response (-3) : 37Hz - 100Hz
• LF Driver : 1 x 18-inch High sensitivity HH designed driver. 4-inch Voice Coil
• Max SPL  : 138 dB
• Crossover Frequency  : Active - 70Hz to full range
• Power : 4000W Peak, 2000W  Continuous, 1000W RMS
• Input Sensitivity : 0dBu to +10dBu Adjustable
• Input Connector : Balanced Female XLR
• Output Connector : Balanced Male XLR (Switchable Full Range/Xover)
• Controls : Input sensitivity, Crossover frequency, Phase Switch, Variable Delay (0>9.9mS)
• Cabinet : Acoustically optimised 18mm plywood cabinet with extensive internal bracing
• Finish : Painted Black (White finish optional, subject to MOQ)
• Mounting Points : 8x M10 Penn Elcom tie down/flying points for optional TNA-BRK3 frame.16x M8 inserts for optional transport wheels
• Grille : 1.5mm Thickness Steel, Hexagonal mesh, acoustic foam lined
• Unit Dimensions (Hwd) : 562 x 600 x 640mm, 22.1" x 23.6" x 25.2"
• Unit Weight : 43.5Kg, 95.9 lbs
