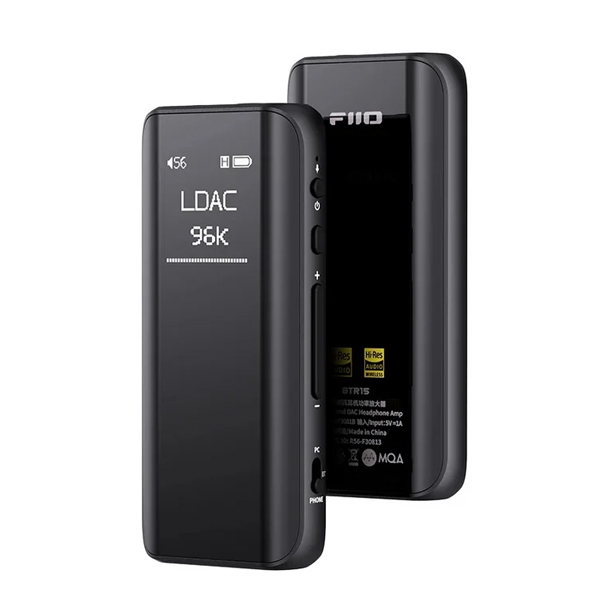

Fiio BTR15 340mW Bluetooth DAC and Headphone Amplifier Phone PC

Fiio BTR15 340mW Bluetooth DAC and Headphone Amplifier Phone PC

Change modes with just one button - Due to the BTR15's ability to work as a Bluetooth receiver and as a USB DAC, we have implemented a PC/BT/PHONE mode button on it. With just a click of a button, you can quickly switch between the three different modes to match your current scenario for listening to high-quality music.

Global parametric EQ Be the master of your music - Through FIIO's self-developed PEQ algorithm and user interface, in any mode you can choose the exact frequencies to be adjusted along with their gain levels and bandwidth. Enabling or disabling the PEQ, USB will restart and disconnect.

Two modes of high-res audio - The BTR15 employs the high-performance combination of the Qualcomm QCC5125 Bluetooth chip = XMOS 16-core XU316 that supports stable high-res audio playback in any mode.

MQA Full Decoder for master-quality sound - MOA 04-10 00-22 The BTR15 supports MQA Full Decoder*, which means the MQA decoding can be achieved in any music app. This allows for high-resolution, master- level sound quality in reasonably sized files well- suited for your mobile device.

Dual upgrades to look and grip - With the BTR15, FIIO uses hot-bent curved glass for the first time - embedding it on both the front and the rear of the device. Together with the aluminum alloy middle frame, they make the BTR15 a comfortable device to handle you won't be able to put it down once you pick it up.

0.96-inch OLED display - This display not only allows displaying more information at once, it also allows for larger display fonts. Moreover, it is the rarely seen device that supports bilingual languages, Chinese and English, among similar products.

Dual outputs - In addition to the standard 3.5mm single-ended headphone output, the BTR15 also comes with the widely-used 4.4mm balanced headphone output featuring greater contact reliability and durability compared to the 2.5mm balanced out.

Independent power supply for amp - Feiao engineers have carefully designed an independent power supply system for DAC ES9219MQ built- in earmuffs, so that earmuffs no longer share the power supply with DAC and the power supply is purer. In addition, the uniquely designed external power supply has the characteristics of low noise and high current, which increases the balanced output power of BTR15 by 40% to 340mW, and can easily meet the needs of portable use.

Parallel output, more power - Output power (m/w) 200 You don't have to use the 4.4mm balanced output to enjoy the benefits of increased output power.

Comprehensive battery protection - In order to alleviate concerns about battery health, FIIO engineers have implemented a number of software and hardware measures to comprehensively protect the BTR15's battery.

Features:

• Bluetooth chip: QCC5125 (CPU+DSP dual-core architecture)
• Bluetooth version: 5.1
• USB DAC: Asynchronous 384kHz-32bit, DSD256
• USB DAC driver-free mode: Supported
• Display: 0.96-inch 96×96 resolution OLED
• Headphone outs: Single-ended 3.5mm + Balanced 4.4mm
• Dimensions: About 32.0mm×72.2mm×12.5mm
• Weight: About 37.3g
• Charging time: <2h
• Battery: 550mAh high-temperature resistant lithium-ion
• Battery life: About 8 hours
