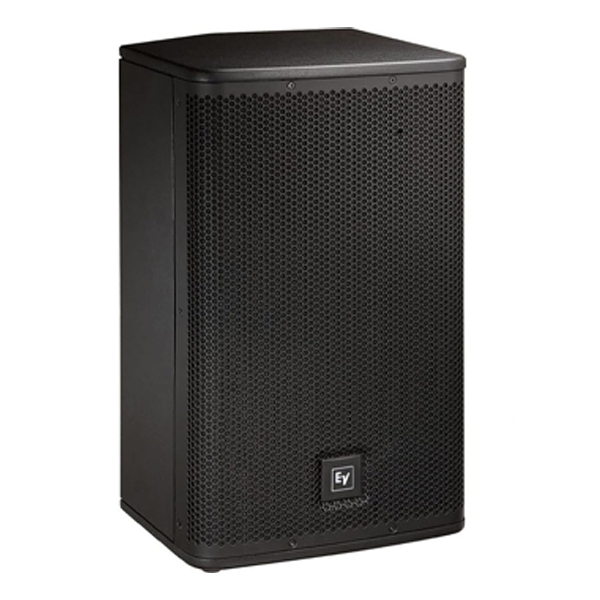

EV Electro-Voice ELX112 1000W 12" Passive Speaker with Stand (ELX 112)

EV Electro-Voice ELX112 1000W 12" Passive Speaker with Stand (ELX 112)

Part of Electro-Voice's Live X series of portable powered and passive loudspeakers, the ELX112 can be used with a wide range of amplifiers or powered mixers due to its exceptionally efficient design and power handling capability. Designed with the latest Electro-Voice-engineered woofer and 1.5" titanium compression driver, the ELX112 12" passive loudspeaker provides exceptional audio quality with 250W power handling (1000W peak), exceptional SPL output, and a 82Hz-18kHz frequency response. The ELX112 is constructed of 9-ply, 15mm plywood, and is internally braced, making it sturdy yet completely portable.

Features:

• Compact power for sound reinforcement and stage monitoring
• EVS-12K woofer
• 1.5-inch DH-1K titanium HF compression driver
• 55 Hz – 20 kHz frequency range
• 90° x 50° coverage-pattern waveguide
• 60° Monitor Angle
• 94 dB SPL sensitivity; 132 dB max SPL
• Power handling: 250 W continuous, 1000 W peak
• Braced 15mm plywood enclosure
• Pole mount or stack with Live X Subwoofers
• Black textured finish

Specfications:

• Freq. Response (-3 dB): 82 Hz - 18 kHz¹
• Freq. Range (-10 dB): 55 Hz - 20 kHz¹
• Axial Sensitivity: 94 dB
• Max. Measured SPL: 132 dB
• Coverage (Horiz. x Vert.): 90° x 50°
• Power Handling: 250W Continuous, 1000W Peak
• Nominal Impedance: 8 Ohms
• Minimum Impedance: 7.0 Ohms
