Allen & Heath GX4816 Plug and Play Audio Expander 48 Input 16 Output with DX Ports

Allen & Heath GX4816 Portable Audio Expander 48 Input 16 Output with DX Ports

GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for Qu*, SQ, Avantis and dLive mixing systems, and for AHM audio matrix processors. *96kHz Qu models only

Massively Expand Your System I/O
Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion.

Put It Where You Need It
The GX4816 can be placed up to 100m away from the mixer for maximum flexibility of positioning and features integrated rack-ears for mounting in a 5U 19″ space.

Features:

• 48 Mic Preamps : +60dB of gain, Phantom Power indicators and -20dB pad for line level sources.

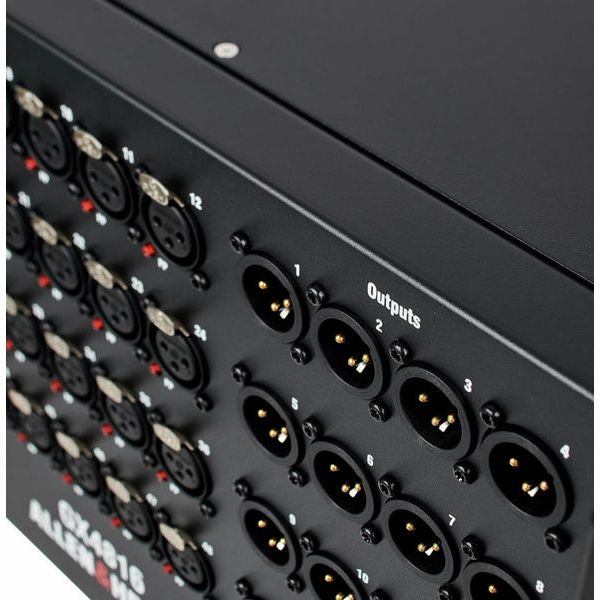

• 16 Line Outs : Balanced, relay protected line outputs on XLR.
• DX Ports : A pair of DX ports enable connection of additional DX expanders or the ME Personal Monitoring System (not on dLive or AHM)
• Plug-and-Play : No configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.
• Compatible with : dLive, Avantis, SQ, Qu and AHM
