How to Install Keyboard Stand | BSL Q2X
How to Install Keyboard Stand | BSL Q2X
Learn how to assemble a keyboard stand correctly with our step-by-step guide, installation photo, and video tutorial. Suitable for musicians, students, home users, studios, schools, churches, and live performance setups in Malaysia, including Penang, Kuala Lumpur, Selangor, Johor, Sabah, and Sarawak.
Setting up a keyboard stand properly is important for both safety and playing comfort. Whether you have just bought a new keyboard stand for your digital piano, portable keyboard, arranger keyboard, or stage keyboard, this guide will help you install it quickly and correctly.
At Music World Malaysia, we support musicians and keyboard players across the country with reliable music gear, accessories, and practical setup guides. Follow the video and image below to install your keyboard stand step by step.
Keyboard Stand Installation Video
Keyboard Stand Installation Diagram
Step-by-Step: How to Assemble the Keyboard Stand

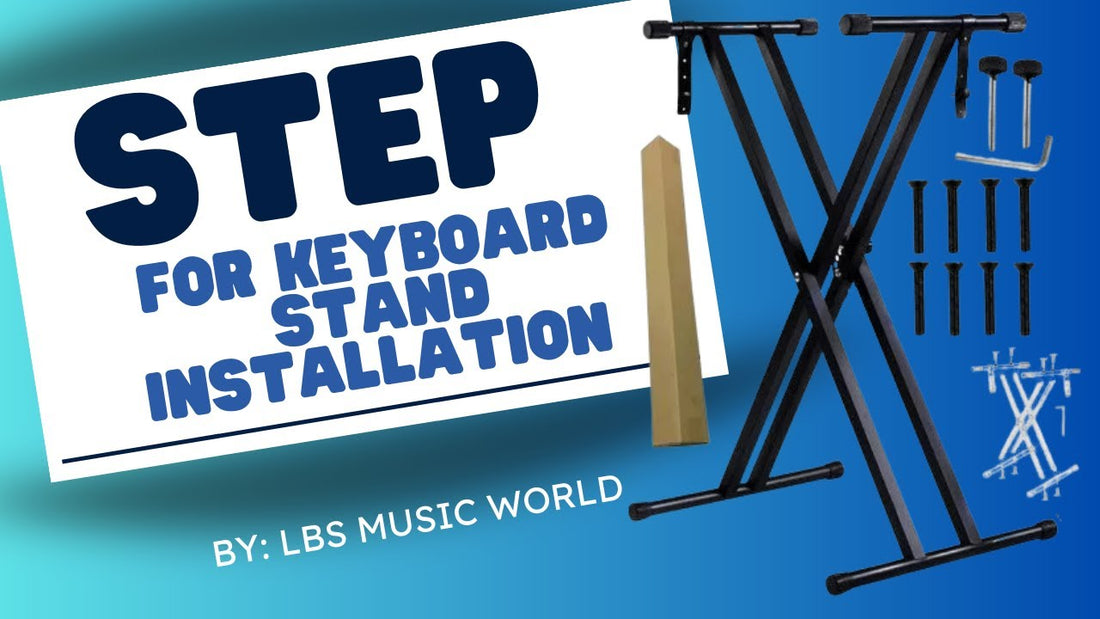

Step 1: Identify the Parts
Before starting, lay out all the parts clearly. You should see:
- Two square tubes
- Two narrow-hole round tube
- Two wide-hole round tubes
- Screws and small hardware
- Keyboard fixing straps
The wide-hole round tubes are installed on the outside of the two square tubes, while the narrow-hole tube is installed on the inside of the two square tubes.
Step 2: Open the Square Tubes into an X Shape
Take the two square tubes and open them into an X-frame shape. This creates the main body of the keyboard stand. Make sure both sides are aligned evenly so the stand remains stable.
Step 3: Install the Narrow-Hole Tube on the Inner Side
Attach the narrow-hole round tube to the inner side of the two square tubes. This tube connects the upper inner section of the stand and helps support the frame.
Step 4: Install the Wide-Hole Round Tubes on the Outer Side
Next, install the wide-hole round tubes on the outer side of the two square tubes. These outer tubes help form the support points where the keyboard will rest.
Step 5: Attach the Keyboard Fixing Straps
Remove the end caps, install the keyboard fixing straps, then put the caps back in place. These straps help secure the keyboard and reduce movement during use.
Step 6: Check Stability Before Use
Once installation is complete, place the stand on a flat surface and check that all parts are tightened properly. Make sure the X-frame opens evenly and the stand does not wobble before placing your keyboard on it.
How to Install a Two-Tier Keyboard Stand
A simple guide to help you set up the second layer of your keyboard stand for an extra keyboard, synth, MIDI controller, or music workstation.
Prepare All Parts
Lay out the second-tier accessories before installation. Check that the arms, connecting bar, knobs, and mounting parts are all ready.
Mount the Side Arms
Place the left and right support arms onto the main stand frame. Position them evenly on both sides before tightening.
Fit One Side of the Bar
Slide one end of the connecting bar into the first support arm. Secure it gently so it stays in place while you adjust the other side.
Adjust the Width
Loosen the centre adjustment knob and extend or shorten the bar until it fits the opposite support arm properly.
Lock Everything in Place
Once the second tier is aligned, tighten all knobs firmly. The arms and bar should feel steady with no loose movement.
Ready to Use
Your two-tier stand is now ready. Place your second keyboard carefully and check the balance before playing.
Before You Place Your Keyboard
- Make sure the main stand is fully stable before adding the second tier.
- Place heavier keyboards on the lower tier whenever possible.
- Check that all knobs are tightened before use.
- Do not overload the stand beyond its recommended weight capacity.
- After placing your keyboard, gently test the stability before playing.
Helpful Keyboard Stand Setup Tips
- Always install the stand on a flat and stable floor.
- Double-check all screws before placing your keyboard on top.
- Use the fixing straps if your stand includes them.
- Do not force parts into the wrong position.
- Refer to the video guide if you are unsure about tube placement.
Buy Keyboard Stands in Malaysia
Looking for a keyboard stand in Malaysia? Music World offers a range of keyboard stands and music accessories for beginners, students, home players, teachers, churches, event companies, and professional musicians. We serve customers nationwide including Penang, Kuala Lumpur, Selangor, Johor, Sabah, and Sarawak.
Whether you need a keyboard stand for a digital piano, arranger keyboard, portable keyboard, or stage performance, we are here to help with the right solution and after-sales support.
Frequently Asked Questions
How do I know which tube goes where?
The narrow-hole tube is installed on the inside of the two square tubes, while the wide-hole round tubes are installed on the outside.
Can I install a keyboard stand by myself?
Yes. Most keyboard stands are simple to assemble with the provided parts and a clear guide like the one above.
Why is my keyboard stand not stable?
Check that the tubes are installed in the correct position, all screws are tightened properly, and the stand is placed on a flat surface.
Where can I buy keyboard stands in Malaysia?
You can shop for keyboard stands and accessories at Music World Malaysia for delivery and support across Penang, Kuala Lumpur, Selangor, Johor, Sabah, and Sarawak.
