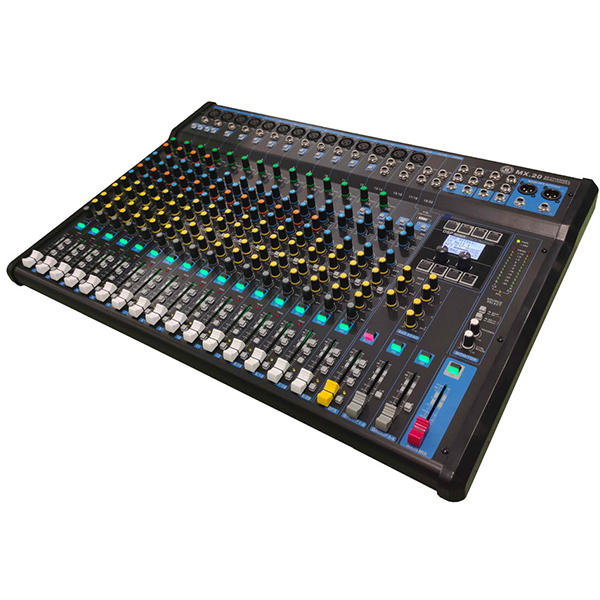

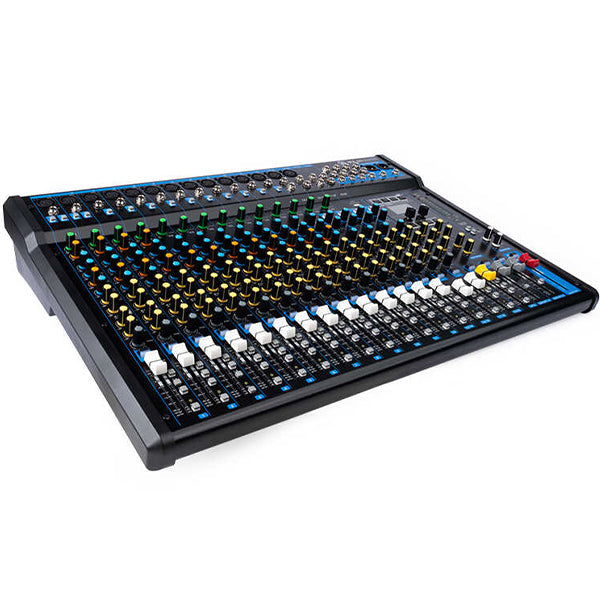

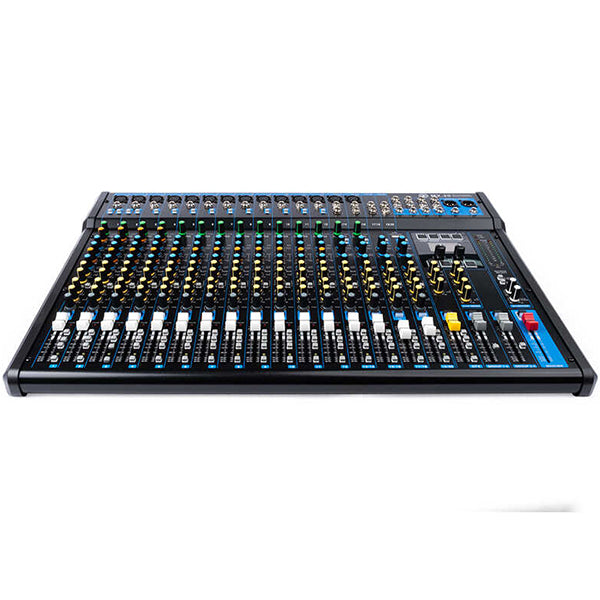

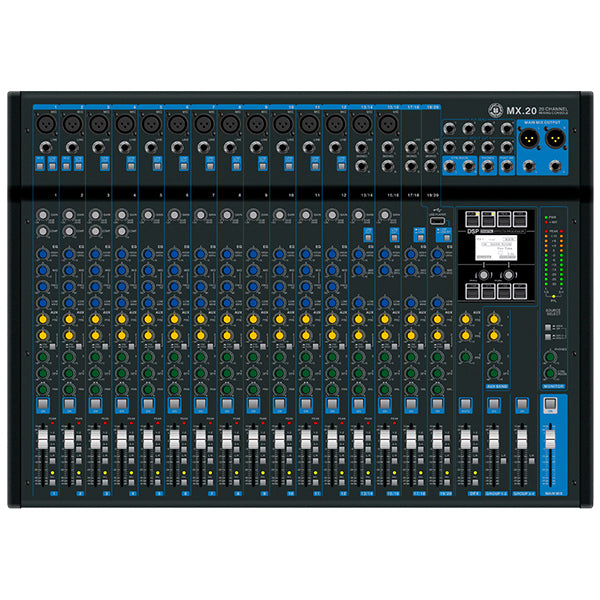

Topp Pro MX.20 20 Channel Analog Mixer Console with USB and Bluetooth (MX20)

Topp Pro MX.20 20 Channel Analog Mixer Console with USB and Bluetooth (MX20)

The Topp Pro MX.20 is a comprehensive 20-channel analog mixing console engineered to handle demanding live sound reinforcement and sophisticated studio sessions. This mixer integrates high-headroom microphone preamplifiers that deliver exceptional clarity and dynamic range while maintaining an impressively low noise floor. A central feature of the console is its dual 24-bit digital effects processors, which provide a vast library of 100 presets for high-quality spatial and modulation effects.

To ensure surgical precision during sound shaping, the mono channels are equipped with 4-band equalizers that include sweepable midrange controls, allowing engineers to isolate and enhance specific tonal characteristics. The MX.20 offers robust routing flexibility with multiple auxiliary sends, dedicated group buses, and balanced XLR and TRS outputs to accommodate various monitor and front-of-house configurations. It also includes an integrated USB audio interface for seamless digital recording and playback, all housed within a rugged, road-ready chassis designed for long-term reliability in professional environments.

Specifications:

• Mixing capability : On-board processors: 24 programs, PARAMETER control: 2, FOOT SW: 1
• I/O : Phantom Power +48V / Digital: USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
• Input Channels : Mono [MIC/LINE]: 12, Mono/Stereo [MIC/LINE]: 4, Stereo [LINE]: 4
• Output Channels : STEREO OUT: 2, MONITOR OUT: 1, PHONES: 1, AUX SEND: 4, GROUP OUT: 4
• Bus : Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
• Input Channel Function : HPF: 120 Hz, 12 dB/oct (Mono/Stereo: MIC only) / COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec / EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 12 kHz shelving / EQ MID: Gain: +12 dB/-12 dB, Frequency: Mono 100 Hz – 8 kHz peaking, Stereo 2.5 kHz peaking / EQ LOW: Gain: +15 dB/-15 dB, Frequency: 80 Hz shelving / PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping / Level Meter 2x
• Total harmonic distortion : 0.03 % @ +0dBu (20 Hz to 20kHz), GAIN knob: Min.
• Frequency response :  +0.5 dB/-1.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min.
• Hum & noise level :  Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) / Residual output noise: -100
• Crosstalk :  -85 dB
• Power requirements :  AC 100 – 240 V, 50 / 60 Hz
• Power consumption : 28 W
• Dimensions : W: 620.4mm / H: 111.4mm / D: 439.5mm
