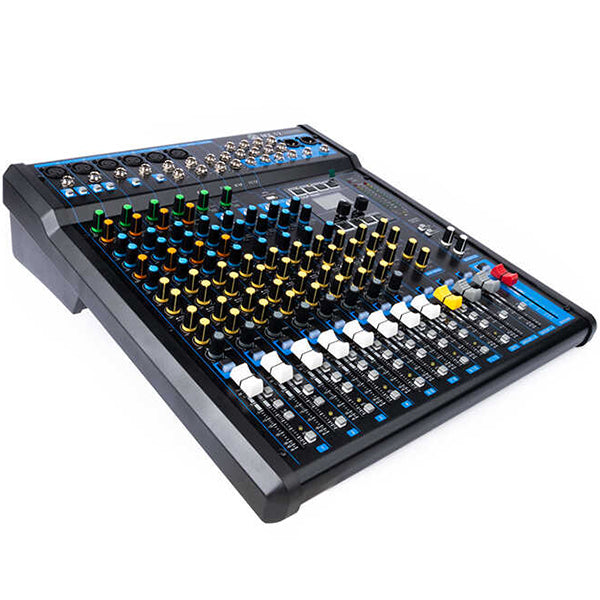

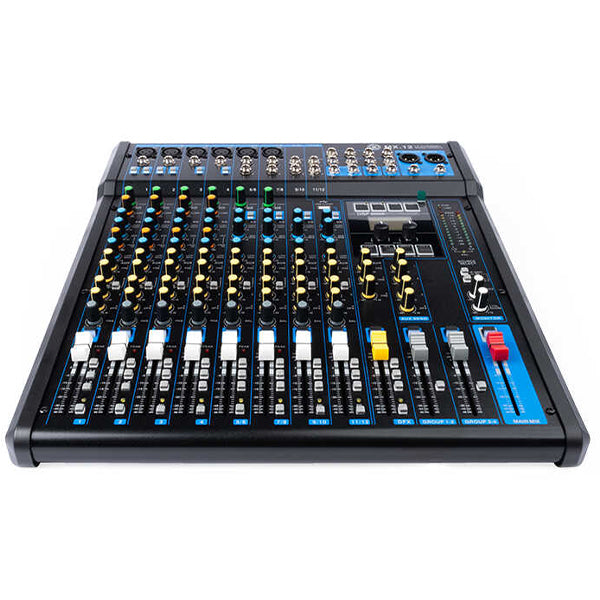

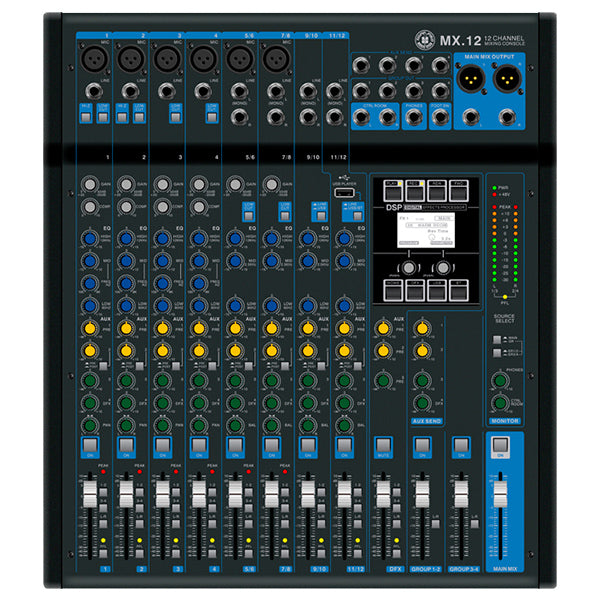

Topp Pro MX.12 12 Channel Compact Analog Mixer with USB and Bluetooth (MX12)

Topp Pro MX.12 12 Channel Compact Analog Mixer with USB and Bluetooth (MX12)

The Topp Pro MX.12 is a compact 12-input analog mixing console designed for small live performances, recording studios, and fixed installations. It features four mono MIC/Line channels equipped with high-quality preamps and three-band EQs with sweepable mids, alongside four stereo line inputs for versatile connectivity with instruments and media players.

The mixer includes a built-in 24-bit digital effects processor with 100 presets, integrated one-knob compressors for dynamic control, and +48V phantom power for condenser microphones. With its 60mm faders, multiple AUX sends, and balanced XLR/TRS outputs, the MX.12 provides a clean, professional-grade audio interface in a portable and user-friendly format.

Specifications:

• Mixing capability : On-board processors: 24 programs, PARAMETER control: 2, FOOT SW: 1
• I/O : Phantom Power +48V

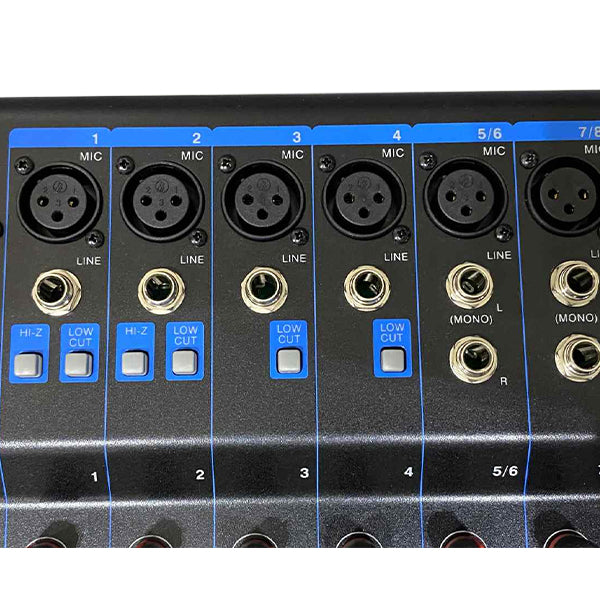

• Input Channels : Mono [MIC/LINE]: 4, Mono/Stereo [MIC/LINE]: 4, Stereo [LINE]: 4
• Output Channels : STEREO OUT: 2, MONITOR OUT: 1, PHONES: 1, AUX SEND: 4, GROUP OUT: 4
• Bus  :  Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
• Input Channel Function : HPF: 120 Hz, 12 dB/oct (Mono/Stereo: MIC only) / COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec / EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 12 kHz shelving / EQ MID: Gain: +12 dB/-12 dB, Frequency: Mono 100 Hz – 8 kHz peaking, Stereo 2.5 kHz peaking / EQ LOW: Gain: +15 dB/-15 dB, Frequency: 80 Hz shelving / PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping / Level Meter 2x
• Total harmonic distortion : 0.03 % @ +0dBu (20 Hz to 20kHz), GAIN knob: Min.
• Frequency response : +0.5 dB/-1.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min.
• Hum & noise level : Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) / Residual output noise: -100
• Crosstalk :  -85 dB

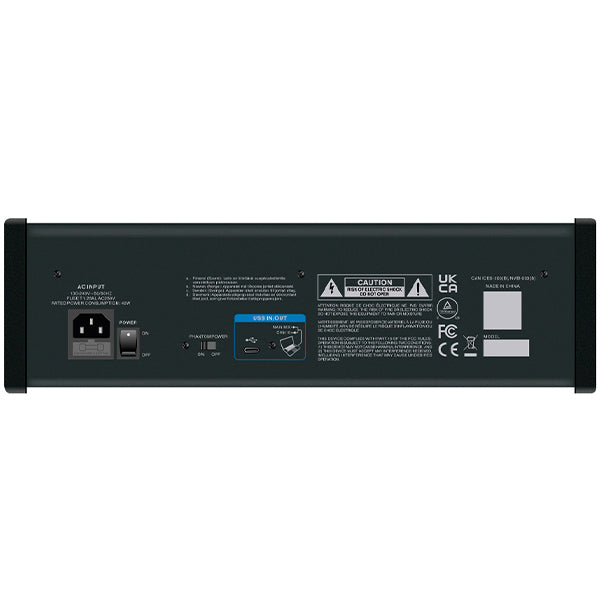

• Power requirements :  AC 100 – 240 V, 50 / 60 Hz
• Power consumption : 19 W
• Dimensions :  W: 396.4mm / H: 111.4mm / D: 439.5mm
