LD Systems SAT 82 G2 120 Watt 8 Inch Installation Monitor Passive with 2 Way Speaker (SAT82 G2 SAT82-G2)

LD Systems SAT 82 G2 120 Watt 8 Inch Installation Monitor Passive with 2 Way Speaker (SAT82 G2 SAT82-G2)

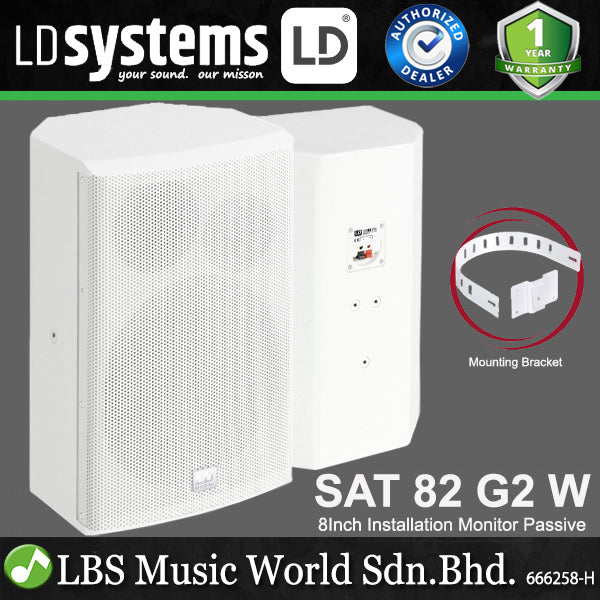

The LD Systems SAT82G2 is a compact, especially dependable 2-way speaker for demanding installation solutions. It blends unobtrusively into practically any surroundings and thus is also suitable for home systems.

The bass-reflex design is loaded with an 8" custom woofer and a 1“ silk dome tweeter with wave guide, which permit powerful and extremely dynamic reproduction within a range of 50 Hz - 20 kHz with a dispersion angle of 60° and attain a maximum sound- level pressure of 114 dB. The LD SAT82G2 is rated for a RMS power load of 120 W.

The sturdy cabinet is made of 12mm MDF with a durable textured finish and is available in black and white. M6 rigging points and an included mounting bracket provide numerous possibilities for mounting. Additionally, a universal joint mount is available as an accessory. The SAT82G2 has spring terminal connectors.

Features :

• Product type: Installation Loudspeakers
• Type: Wall-mounted Loudspeaker
• Low/mid driver dimensions: 8 “
• Woofer size: 203 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• HF driver dimensions: 1 “
• HF driver size: 25 mm
• HF driver magnet: Ferrite
• HF driver brand Custom-made
• Dispersion (H x V): 60 x 60 °
• Load rating (RMS): 120 W
• Frequency response: 50 – 20000 Hz
• SPL (1W/1m): 93 dB
• Max. SPL: 114 dB
• Impedance: 8 Ohm(s)
• Protection circuits: HF Driver
• Loudspeaker inputs: 1
• Speaker input connections: Clamp connector
• Speakers per amplifier channel (DSP44/45K): 4
