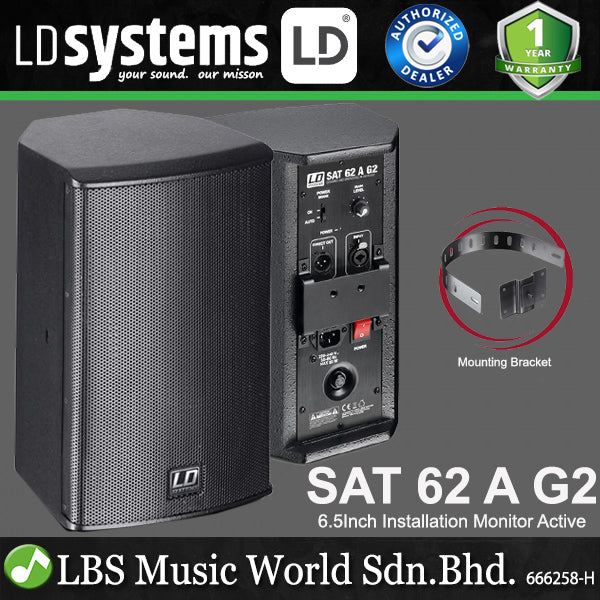

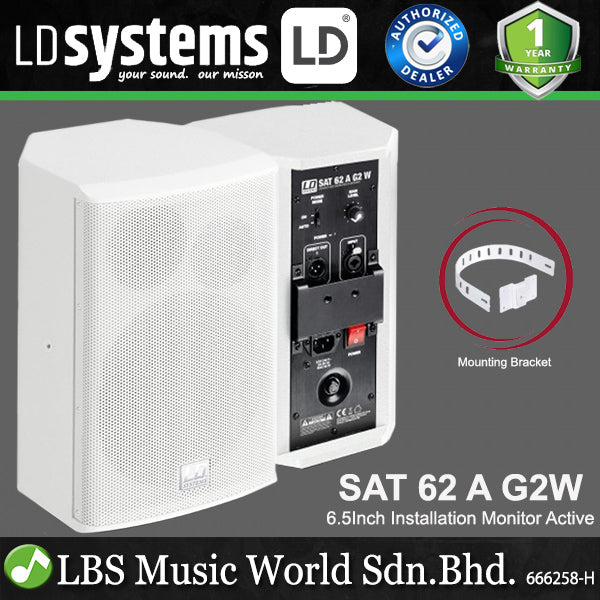

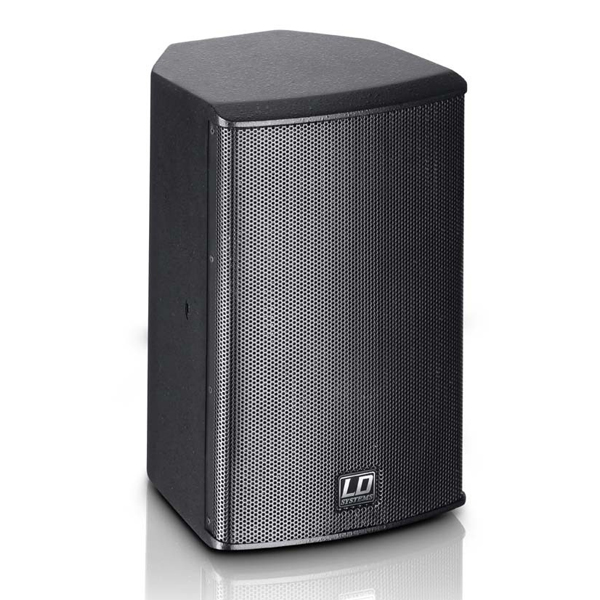

LD Systems SAT 62 A G2 50 Watt 6.5 Inch Installation Monito Active Wall Mounted Loudspeaker (SAT62 A G2)

LD Systems SAT 62 A G2 50 Watt 6.5 Inch Installation Monito Active Wall Mounted Loudspeaker (SAT62 A G2)

The LD Systems SAT62AG2 is the active version of the SAT62G2. The compact 2-way speaker is not only suitable for installation, but also as a home studio monitor and for other sound reinforcement tasks.

The bass-reflex design is loaded with a 6.5" custom woofer and a 1“ silk dome tweeter with wave guide, which are driven by a Class AB power amplifier with 50 W RMS power and overcurrent protection. The input is a XLR-jack combo socket, an XLR socket permits looping through of the signal. Reproduction is balanced and dynamic throughout the frequency range of 55 Hz - 20 kHz and attains a maximum sound-level pressure of 108 dB. The SAT62AG2 features a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.

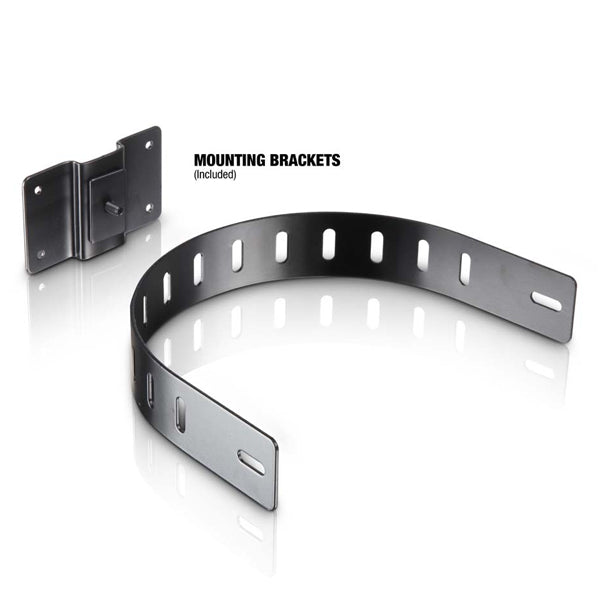

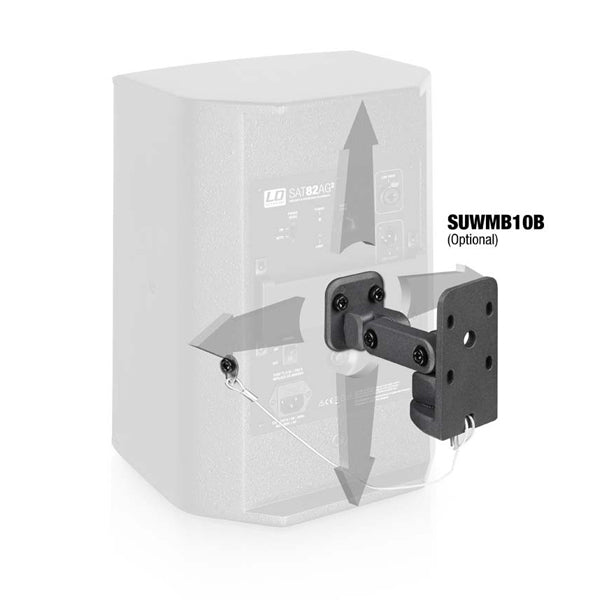

The 12 mm MDF cabinet with a durable textured coating is available in black and white and equipped with M6 rigging points. An included mounting bracket offers additional possibilities for mounting; a universal joint mount is available as an accessory.

Specification

• Type : Wall-mounted Loudspeaker
• Low/mid Woofer dimensions : 6.5 "
• Woofer dimensions (mm) : 165 mm
• Woofer magnet : Ferrite
• Woofer brand : Custom-made
• HF driver dimensions : 1 "
• HF driver dimention (mm) : 25 mm
• HF driver magnet : Ferrite
• HF driver brand : Custom-made
• Power amplifier (Class A) : Class A/B
• Dispersion (H x V) : 60 x 60 °
• System Power (RMS) : 50 W
• Frequency response : 55 - 20000
• Max. SPL : 108 dB
• Protection circuits : HF Driver, over voltage
• Controls : mains switch (on/off), switchable auto power mode, volume control
• Indicators : Power
• Line input connectors : 6.3 mm jack, XLR
• Line output connectors : XLR
• Operating voltage : transformer
• Operating voltage : 220 V AC - 240 V AC, 50-60 Hz
• Cabinet material : 12 mm MDF
• Cabinet surface : texture paint
• Cabinet colour : Black
• Cabinet construction : Bass Reflex
• Measurement : 20 X 32 X 20 MM
