LD Systems SAT 242 G2 100 Watt 2 X 4 Inch Passive Installation Wall Mounted Loudspeaker (LDSAT242G2)

LD Systems SAT 242 G2 100 Watt 2 X 4 Inch Passive Installation Wall Mounted Loudspeaker (LDSAT242G2)

The closed design of the sleek, compact speaker is loaded with 4" custom woofers and a 1“ silk dome tweeter with wave guide, which provide for a maximum sound-level pressure of 108 dB. The LD SAT242G2 is rated for 100 W RMS power can can be used alone as a full-range speaker or with a subwoofer in the in the LD installation series for bass expansion.

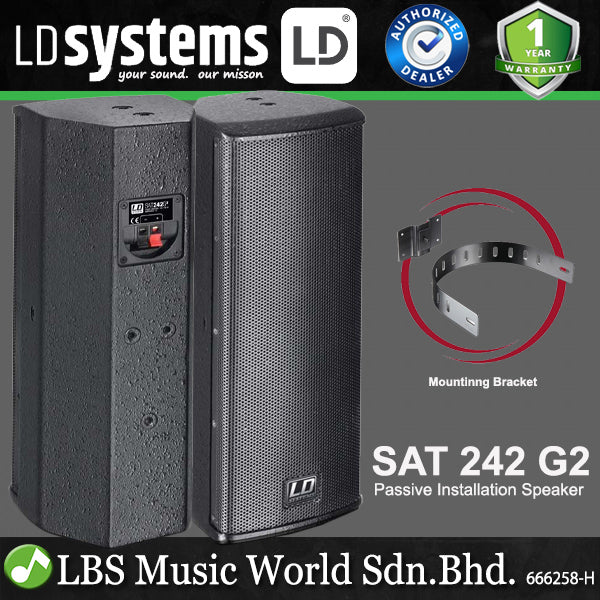

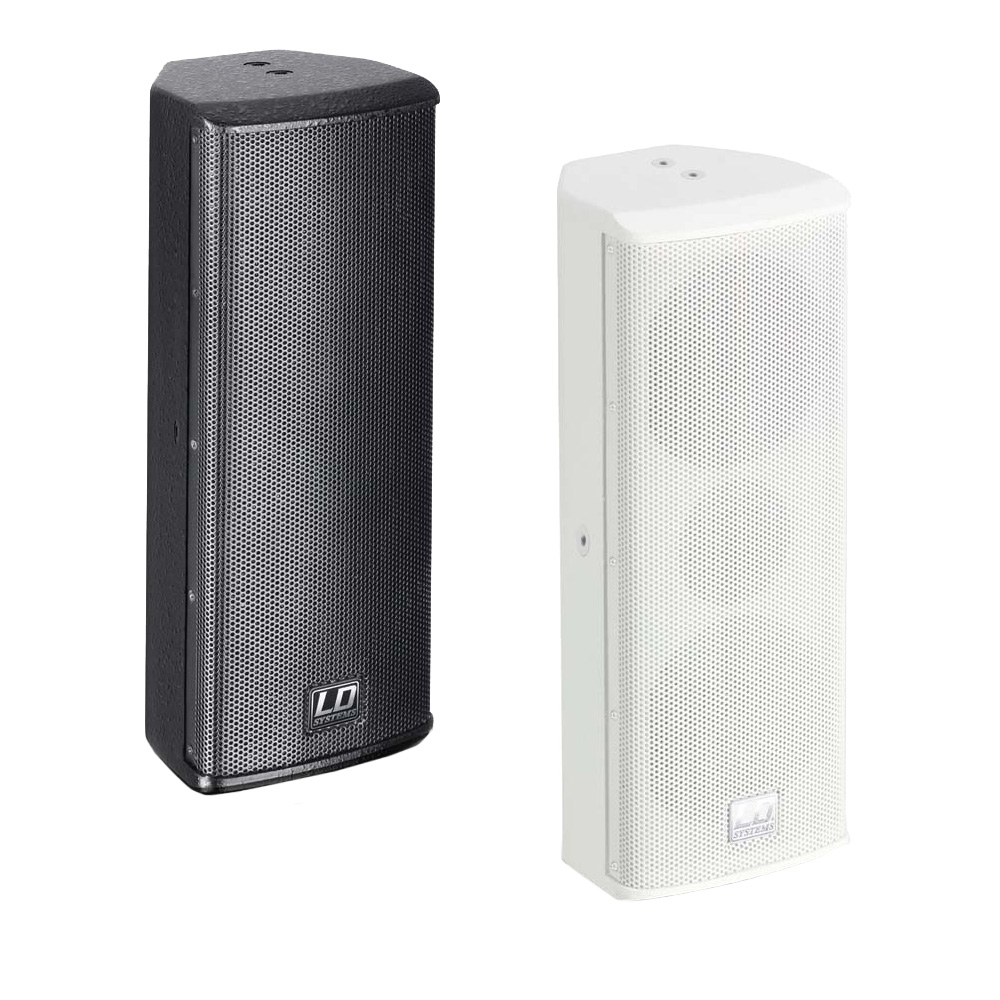

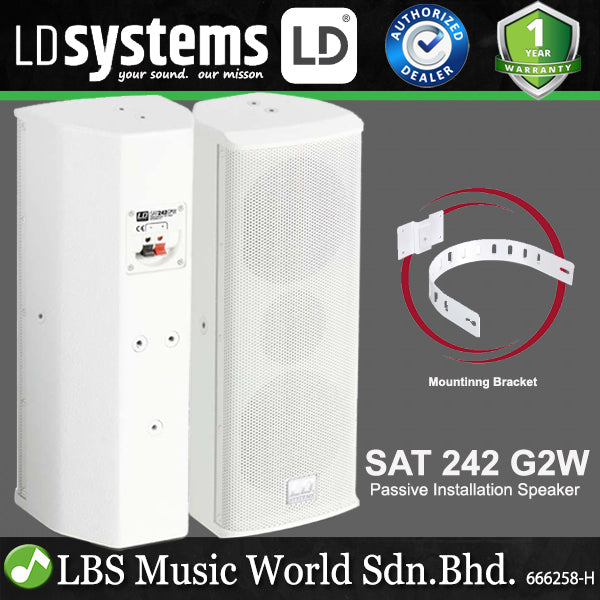

The cabinet of the SAT242G2 is made of 12mm MDF with a durable textured finish and is available in black and white. It is connected via spring terminals. M6 inserts and an included mounting bracket provide numerous possibilities for mounting; a universal joint mount is available as an accessory.

Specification :

• Product type : Installation Loudspeakers
• Type : Wall-mounted Loudspeaker
• Low/mid Woofer dimensions : 2 x 4 "
• Woofer dimensions (mm) : 2 x 101 mm
• Woofer magnet : Ferrite
• Woofer brand : Custom-made
• HF driver dimensions :1 "
• HF driver dimention (mm) : 25 mm
• HF driver magnet : Ferrite
• HF driver brand : Custom-made
• Dispersion (H x V)  : 60 x 60 °
• Load rating (RMS) : 100 W
• Frequency response : 75 - 20000
• SPL (1W/1m) : 88 dB
• Max. SPL  : 108 dB
• Impedance : 8 Ohm(s)
• Protection circuits : HF Driver
• Loudspeaker inputs  ; 1
• Speaker input connections : Clamp connector
• Speakers per amplifier channel (DSP44/45K) : 4
• Cabinet material : 12 mm MDF
• Cabinet surface : texture paint
• Cabinet colour : Black
• Dimension : 135 X 140 X 378 MM
• Weight : 4.15 kg
