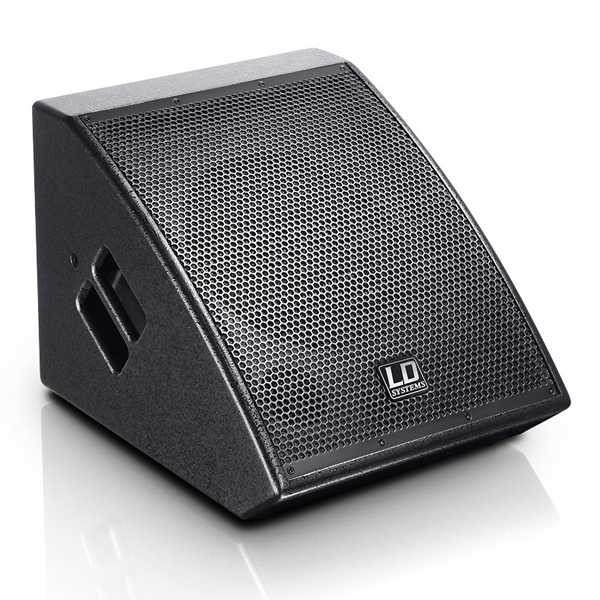

The LD Stinger MON101AG2 is an especially compact active monitor with broad frequency response and a maximum sound-level pressure of 121dB for versatile use on stage.

The 10" coaxial speaker with an integral 1" HF driver attains a dispersion angle of 75°x75°, which is beneficial in multifaceted applications as a stage monitor. The coaxial configuration results in a very homogenous sound in the entire dispersion area plus very low susceptibility to feedback. The active monitor is driven by a Class AB power amplifier with an output of 600W Peak. Short-circuit protection and a limiter ensure dependable operation.

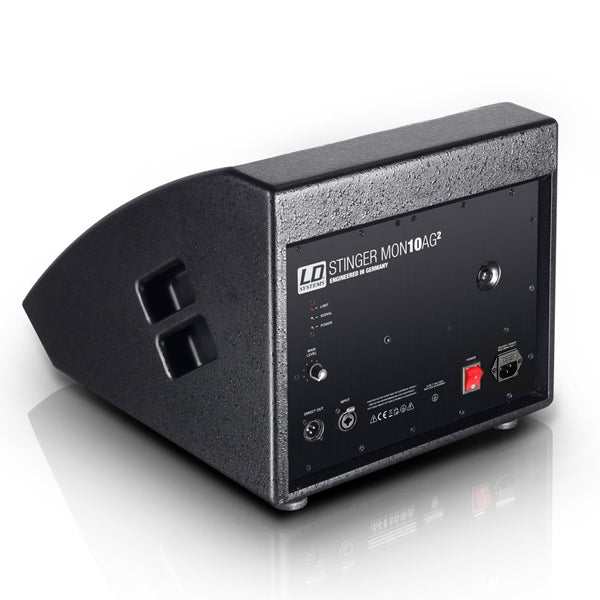

The rear connector panel offers an XLR-jack combo input and XLR output for looping through the signal; other features include a volume control, IEC power socket and switch, and LED indicators for power, signal, and limiter.

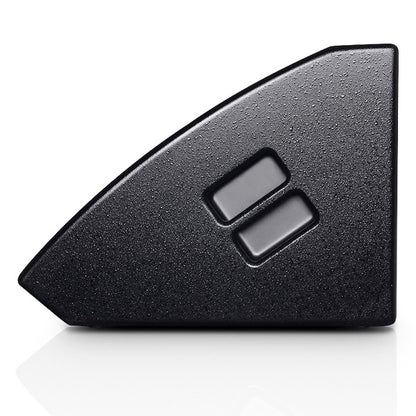

The elegant bass-reflex housing made of 15mm multiplex is finished with a durable coating and has ergonomically milled handles and a metal grille to protect the speaker. The monitor angle is 35°.

Specification :

• Low/mid Woofer dimensions : 10 "
• Woofer dimensions (mm) : 254 mm
• Woofer type : coaxial loudspeaker
• Woofer magnet : Ferrite
• Woofer brand : Custom-made
• Woofer voice coil : 2 "
• Woofer voice coil (mm) : 50.8 mm
• HF driver dimensions : 1 "
• HF driver dimention (mm) : 25.4 mm
• HF driver magnet : Ferrite
• HF driver brand : Custom-made
• HF driver voice coil : 1 "
• HF driver voice coil : 25.4 mm
• Amplifier : Class A/B
• Dispersion (H x V) : 75 x 75 °
• System Power (RMS) : 150 W
• Peak power : 600 W
• Frequency response : 90 - 20000
• Crossover frequency : 3300 Hz
• SPL (1W/1m) : 99 dB
• Max. SPL (continuous) : 13 dB
• Max. SPL (Peak) : 121 dB
• Protection circuits : limiter, short circuit
• Controls : On / Off, volume
• Indicators : Limit, Power, Signal
• Line Inputs : 1
• Line input connectors : 6.3 mm jack, XLR
• Line Outputs : 1
• Line output connectors : XLR
• Operating voltage : transformer
• Operating voltage : 230 V AC / 50-60 Hz
• Cabinet material  : 15 mm Plywood
• Cabinet construction : Bass Reflex
• Monitor angle : 35 °
• Dimension : 380 X 335 X 466 MM
• Weight : 15.3 kg
