LD Systems IPA 424 T 240W Professional Amp 4-channel DSP Installation Amplifier (LDIPA424T)

LD Systems IPA 424 T 240W Professional Amp 4-channel DSP Installation Amplifier (LDIPA424T)

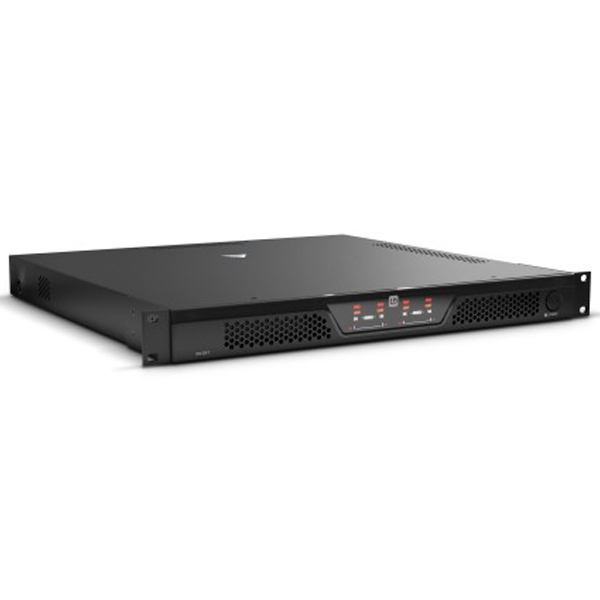

The IPA 424 T is a professional, four-channel installation power amplifier with 4 x 240 watts. While the 70V/100V outputs are equipped with high quality toroidal core transformers, the low impedance 4-Ohm outputs are completely transformerless and guarantee the highest possible audio quality. The DSP functions include, amongst others, a parametric EQ with matching speaker library, dynamic tools, a matrix mixer, priority source selection and delay.

HPF/LPF presets can be enabled directly on the device via DIP switches. The IPA 424 T is already prepared for remote control using future remote panels and paging microphones from LD Systems. The back-panel slot provides expansion card connectivity for additional future-proofing. The Ethernet card offers comprehensive configurability and management via software. The Ethernet+Dante card also offers Dante audio networking capabilities and connection to a wide range of Dante-enabled devices, in order to integrate the IPA 424 T into the Dante network and resolve more complex tasks.

Features:

• Professional 4-channel installation amplifier
• Powerful class D power amplifier with 4 x 240 W (IPA 424 T) or 4 x 120 W (IPA 412 T) at 4 Ohm (transformer bypass) or 70V/100V outputs through toroidal core transformer
• Stereo/parallel/bridge mode selector switch per channel pair
• 4 balanced line inputs and 4 speaker outputs with terminal block connections
• User-friendly front panel with signal, limit, protection, mute and bridge mode LEDs per channel and clipping LEDs for the inputs
• Speaker protection circuits: DSP limiter, overcurrent, direct current, overheating, short circuit as well as switchable auto standby mode
• DSP presets with HPF and LPF which can be activated via DIP switches
• REMOTE audio and control bus based on CAN architecture (Controller Area Network)
• Equipped for future LD Systems remote control panels and paging microphones
• Slot for future optional expansion cards for Ethernet or Ethernet + Dante
• Optional accessories: 19" L-bearing rails, length 450 mm
