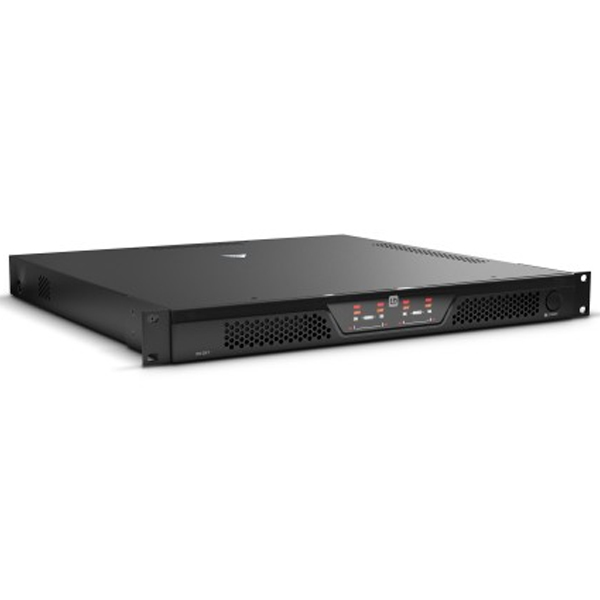

LD Systems IPA 412 T 120W Professional Amp 4-channel Installation Amplifier (LDIPA412T)

LD Systems IPA 412 T 120W Professional Amp 4-channel Installation Amplifier (LDIPA412T)

The IPA 412 T is a professional, four-channel installation power amplifier with 4 x 120 watts. While the 70V/100V outputs are equipped with high quality toroidal core transformers, the low impedance 4-Ohm outputs are completely transformerless and guarantee the highest possible audio quality. The versatile DSP functions include, amongst others, a parametric EQ with matching speaker library, dynamic tools, a matrix mixer, priority source selection and delay.

Despite this range of functions, the IPA Series power amps are easy to operate. Important functions such as signal, limit, protection and bridge mode are easily visible via the LEDs on the front panel.

Features:

• Professional 4-channel installation amplifier
• Powerful class-D power amplifier with 4 x 120 W (IPA 412 T) or 4 x 240 W (IPA 424 T) at 4 Ohm (transformer bypass) or 70V/100V outputs through toroidal core transformer
• Stereo/parallel/bridge mode selector switch per channel pair
• 4 balanced line inputs and 4 speaker outputs with terminal block connections
• User-friendly front panel with signal, limit, protection, mute and bridge mode LEDs per channel and clipping LEDs for the inputs
• Speaker protection circuits: DSP limiter, overcurrent, direct current, overheating, short circuit as well as switchable auto standby mode
• DSP presets with HPF and LPF which can be activated via DIP switches
• REMOTE audio and control bus based on CAN architecture (Controller Area Network)
• Equipped for future LD Systems remote control panels and paging microphones
• Slot for future optional expansion cards for Ethernet or Ethernet + Dante
• Optional accessories: 19" L-bearing rails, length 450 mm
