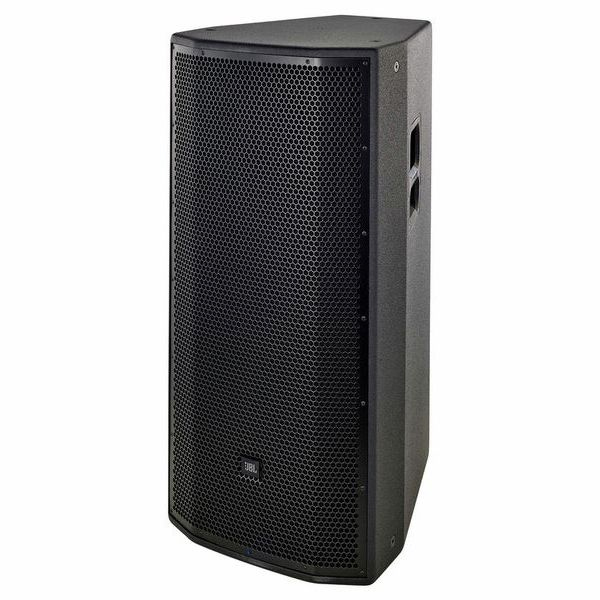

JBL PRX835W 1500 Watt 15 Inch 3 Way Powered Speaker with Wifi and Remote Operation

JBL PRX835W 1500 Watt 15 Inch 3 Way Powered Speaker with Wifi and Remote Operation

The JBL PRX835 is a full-range speaker designed for main system applications. Featuring a 15” woofer, 6.5” midrange transducer, and 1.5” compression driver powered by a 1500-watt class-D amplifier, PRX835 delivers incredible volume in a lightweight and compact form factor.

Specifications :

• System Type  :  Self Powered 15”, three-way, bass-reflex
• Maximum SPL Output  :  138 dB peak
• Frequency Range (-10dB)  :  Normal: 35 Hz – 20 kHz Boost: 34 Hz – 20 kHz
• Frequency Response (±3 dB)  :  Normal: 42 Hz – 20 kHz Boost: 39 Hz – 20 kHz
• Inputs  :  2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
• Input Impedance :   20K Ohms (balanced), 10K Ohms (unbalanced)
• Signal Indicators  :  Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio.
• EQ  :  User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application.
• Dynamic Control (Input)  :  dbx Type IV™ limiter circuit
• Crossover Frequency  :  580 Hz, 2.1 kHz
• Design  :  Highly efficient Class-D amplifier
• Power Rating  :  1500W (750W x 2)
• AC power input  :  100V - 240V ~ 50/60 Hz
• LF Driver  :  1 x JBL 275G 380 mm (15 in) woofer
• MF Driver  :  1 x JBL 196H 165 mm (6.5 in) horn-loaded midrange transducer
• HF Driver  :  1 x JBL 2408H-2 37.5 mm (1.5”) annular polymer diaphragm, neodymium compression driver
• Coverage Pattern   : 90° x 50° nominal
• Directivity Index (DI)  :  10.5 dB
• Directivity Factor (Q)  :  11.2
• Enclosure  :  Trapezoidal, 18 mm, Duraflex coated plywood
• Suspension / Mounting  :  12 M10
• Transport    2 x integrated handles with injection molded backing cup
• Finish  :  Obsidian DuraFlex™ finish
• Grille  :  Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
• Dimensions (H x W x D)  :  938mm x 446mm x 539mm (36.9in x 17.5in x 21.2in)
• Net Weight  :  32.38 kg (71.4 lb)
• Gross Weight  :  38.6 kg (85.0 lb)
• Mic Inputs  :  2
• Phantom Power  :  No
• Effects  :  25 parametric EQ's and speaker delay
• Outputs  :  1 x XLR (mix out)
