JBL PRX812W 1500W 12" Powered Speaker 2 Way Full Range Floor Monitor with Wi-Fi (PRX812)

JBL PRX812W 1500W 12" Powered Speaker 2 Way Full Range Floor Monitor with Wi-Fi (PRX812)

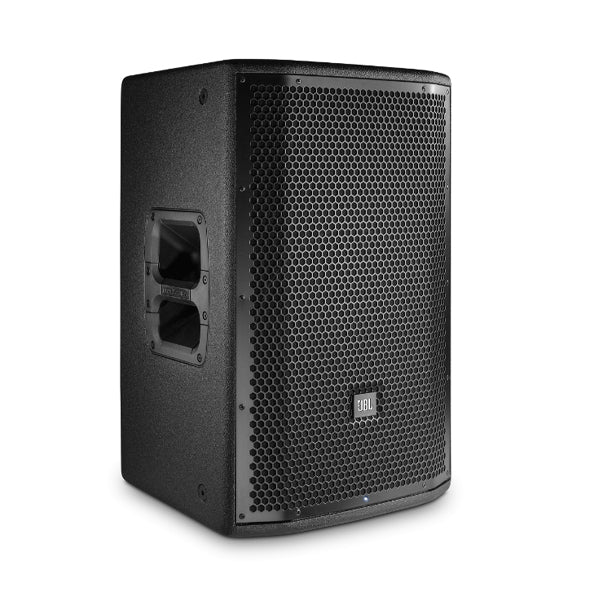

The JBL PRX812 is a full-range speaker designed for main system and floor monitor applications. Featuring a 12”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX812 delivers incredible volume in a lightweight and compact form factor.

Features

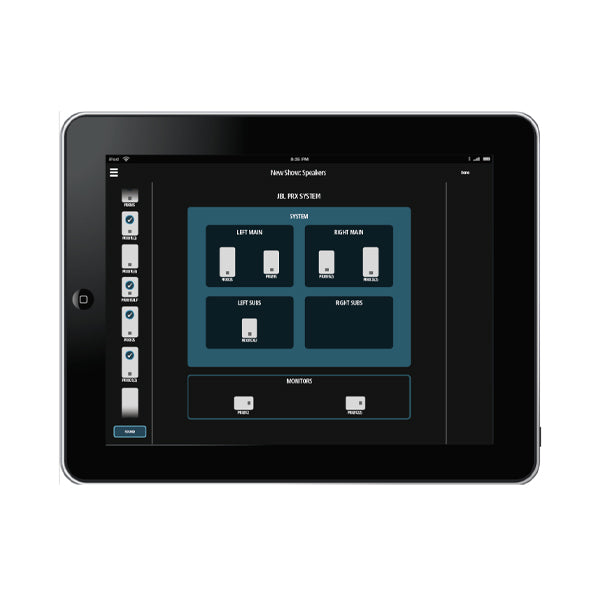

• Built-in Wi-Fi for wireless control of your system from anywhere in the venue

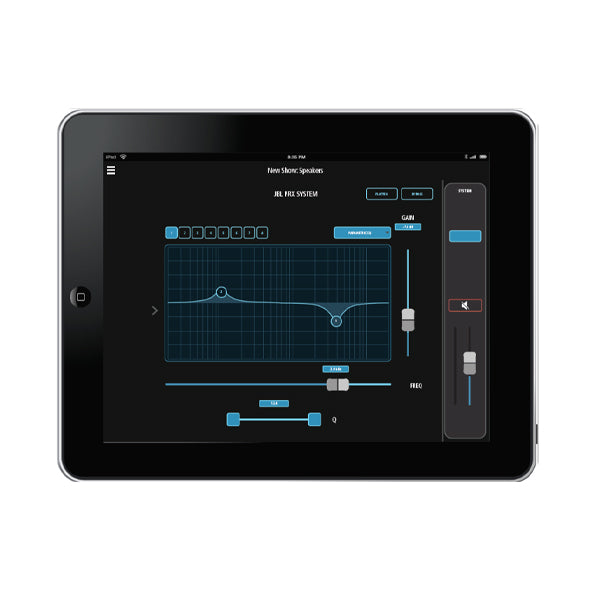

• Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
• Class-leading 1500-watt amplifier delivers ample power to fill your venue
• JBL Differential Drive® transducers for higher SPL in a lightweight design
• Next-generation JBL neodymium compression drivers
• Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
• Intelligent variable-speed fan activates only when needed to reduce noise
• Updated tuning delivers flat frequency response and smooth off-axis behavior
• Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
• Universal power supply for worldwide compatibility
• dbx Type IV™ limiting ensures clear, accurate sound at high volumes
• Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

Applications

• PRX812 is a compact and versatile speaker in the PRX800 Series with remote Wi-Fi control of onboard DSP EQ parameters. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX812 is a perfect match with a PRX818XLF subwoofer, offering a high performance self-powered sub/sat system.
• The PRX812 is comprised of a 12” Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
• All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.

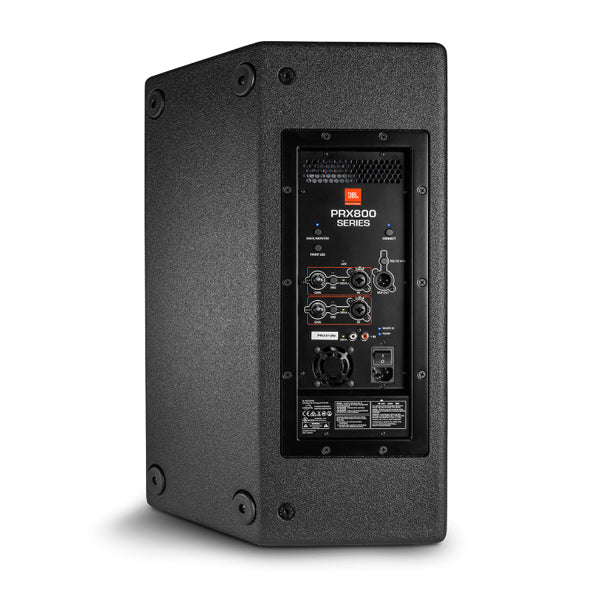

• The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.

Specifications

• Maximum SPL Output: 135 dB peak
• Frequency Range (-10dB)    Main: 44.8 Hz – 20 kHz Monitor: 44.8 Hz – 20 kHz
• Frequency Response (±3 dB) Main: 55.7 Hz – 20 kHz Monitor: 56.5 Hz – 20 kHz
• Inputs: 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
• Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced)
• EQ: User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
• Crossover Frequency: 1.85 kHz
• Design: Highly efficient Class-D amplifier
• Power Rating: 1500W (750W x 2)
• Coverage Pattern: 90° x 50° nominal
• Mic Inputs: 2
• Effects: 25 parametric EQ's and speaker delay
• Outputs: 1 x XLR (mix out)
