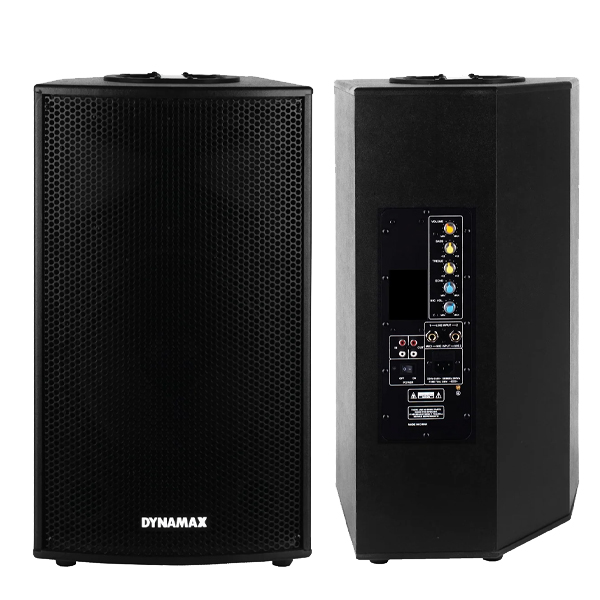

Dynamax TCSM 150 Watt 10 Inch and 12 Inch 2 Way Active Loudspeaker Monitor Speaker (TCSM10A TCSM12A)
Dynamax TCSM 150 Watt 10 Inch and 12 Inch 2 Way Active Loudspeaker Monitor Speaker (TCSM10A TCSM12A)
Dynamax TCSM 150 Watt 10 Inch and 12 Inch 2 Way Active Loudspeaker Monitor Speaker (TCSM10A TCSM12A)
The Dynamax TCSM series delivers rugged, high-performance sound in both 10″ and 12″ full-range cabinets, engineered for versatility across live performances, monitors, and PA applications. Boasting a two-way design with a dedicated woofer and horn tweeter, each model offers around 150 W RMS (800 W peak) output and consistent coverage from the lows into crisp highs. The 10″ variant features a 10″ woofer paired with a 4″ horn tweeter, and typically delivers a sensitivity of ~125 dB.
The 12″ model steps up with a 12″ woofer and larger horn tweeter (≈ 4.5″), with a sensitivity often around 128 dB and a frequency response extending deeper into the lower range.
Both versions are built to suit both stationary and mobile setups, featuring robust enclosure designs, standard mounting/rigging points, and impedance suitable for typical PA configurations. The 10″ model is more compact and easier to place in tighter spaces; the 12″ brings greater low-end punch and headroom for larger venues. Whether used as a floor monitor or front full-range box, the Dynamax TCSM series is a dependable choice for drivers needing clear, powerful sound from either the 10″ or 12″ format.
Features:
- 2-Way Speaker
- High Power Output
- Good Frequency Range
- High Volume Capability
- Multiple Model Options: Available in both 10-inch and 12-inch
- HF Unit: 10" x 4" Horn Tweeter / 12" x 4.5" Horn Tweeter
- LF Unit: 10" Woofer / 12" Woofer
- Power: 150W @ 4 Ω (RMS), 800W (Peak Music)
- Sensitivity: 125dB (10") / 128dB (12")
- Impedance: 4 Ω
- Frequency Response: 50Hz-20kHz (-3db) / 45Hz-20kHz
- Product Dimension : (W x D x H): 340 x 300 x 495mm / (W x D x H): 360 x 320 x 615mm
