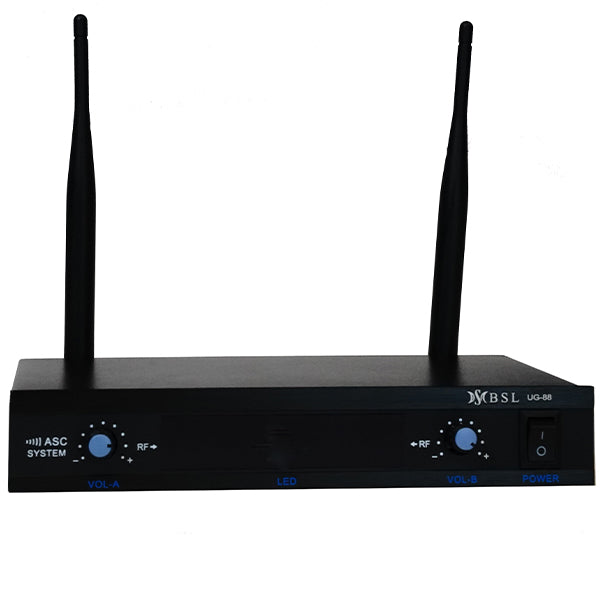

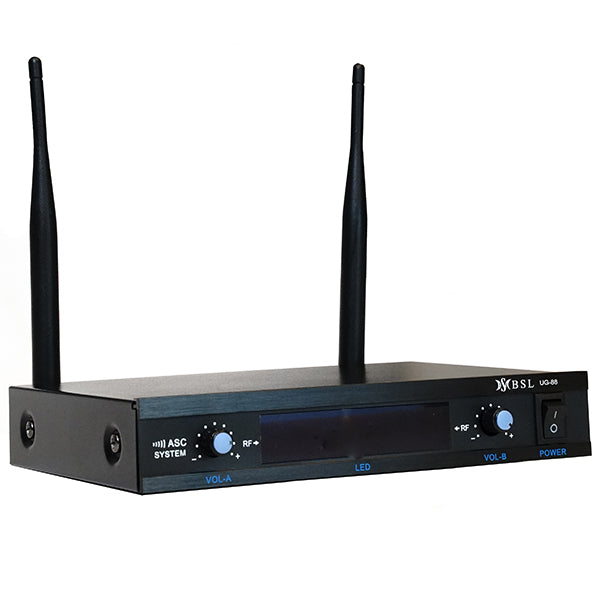

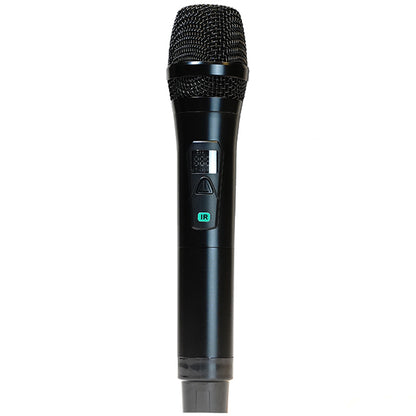

BSL UG88 Handheld UHF 2 Wireless Hand Held Microphone System with Metal Cordless Mic (UG-88)

BSL UG88 Handheld UHF 2 Wireless Hand Held Microphone System with Metal Cordless Mic (UG-88)

handheld wireless system combines professional-quality sound with simple setup and an intuitive interface for excellent audio performance right out of the box.

The cardioid polar pattern is effective against off-axis noise causing feedback and unwanted ambient noise.
The dual antenna design represents diversity technology which provides optimum resistance against RF interference and drop-out.
The working distance of UG88 is about 100m in the wide-open area.It gives you stable signal transferring and great freedom of movement.
A multifunction LCD display provides room for flawless operation by displaying the group, channel number, RF and AF levels clearly.
Ideal for the family home KTV, church, parties, Karaoke singing, conferences and etc.

Tips for using and connect

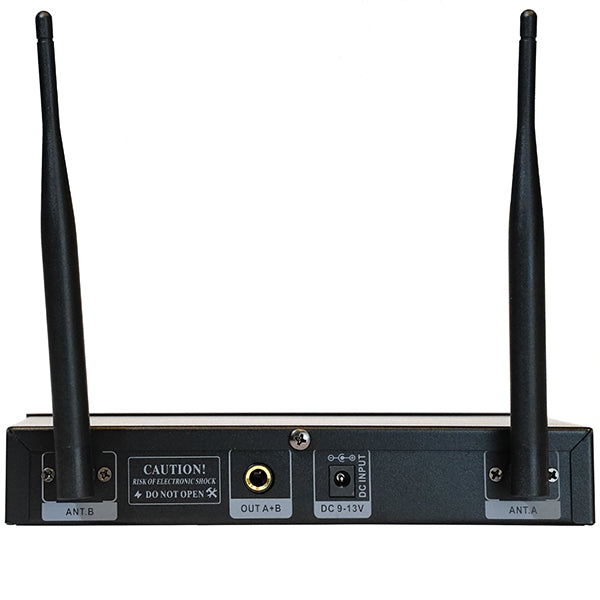

1. Behind the receiver there are AB AF Out are the frequency output. When using , the frequency antena need to be connect to the receiver
2. Behind the receiver the A AF Out are only for microphone A and only 1 Mic to connect
3. Behind the receiver the B AF Out are only for microphone B and only 1 Mic to connect
4. Once connect the Mirophone to the receiver , turn on the power by using the adapter provided.

How to ID Lock
1. Turn of the Receiver , Switch of the Wireless microphone, and hold the frequency selecter together with the swith withoud let go .
2. Wait for roughly 2 second the the display of the microphone will start blinking
3. Then turn on the receiver, the display of the receiver will be showing <> lighting and will blink 4 time. Then you could then choose for the frequency and make sure they are correct.
3. Once the <> light are on without blinking then the microphone are connected.
