[Discontinued] Hartke TX600 600 Watt Lightweight Speaker Amplifier Bass Amp Head (TX 600)

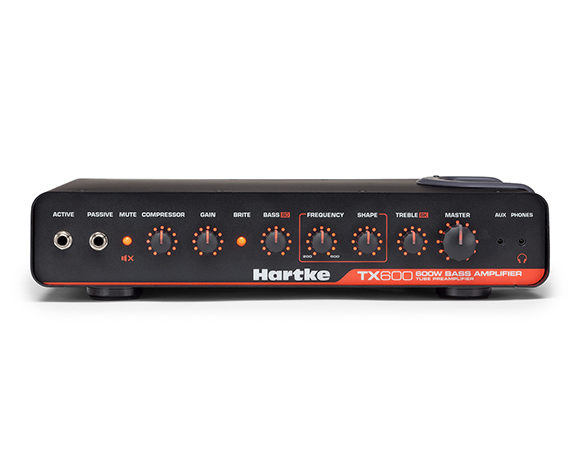

Hartke TX600 600 Watt Lightweight Speaker Amplifier Bass Amp Head (TX 600)

600-Watt Class D Bass Amplifier
Hartke’s lightweight TX600 is a 600-watt Class D bass amplifier that offers the same Class A tube preamp circuitry found in Hartke’s renowned LH Series linear amplifiers, and all in a highly portable design. Within its rugged, yet compact enclosure, the TX600 features an onboard compressor and unique tone stack EQ section that provides players of all styles with thorough control over their sound. Tone stack combines Bass and Treble EQ adjustments with Shape and Frequency controls to dial in your ideal tone. Built-in compression allows users to adjust the bass dynamics, while a Brite button adds 'lift' and extra high frequency attack.

Specifications
Rated Output Power: 600 watts @ 4 ohms, 450 watts @ 8 ohms
Frequency Response: 10Hz - 40kHz -1dB
Preamp: Tube Low Noise 12AX7A High-Mu Twin Triode
Active Input: >1MΩ unbalanced, -10dBV, -8dBu
Passive Input: >1MΩ unbalanced, -20dBV, -18dBu
Compressor Ratio: Fixed 2.1
Compressor Threshold: Off to -30dBu Passive Input, Off to -20dBu Active Input
Mute: >80dB (100dB typical) at Direct Output & Speaker Output
Brite Switch: 10kH, +8dB Gain @ 2 o’clock; +5dB Gain @ min
Tone Stack EQ
Bass +8/-14dB, 80 Hz relative to 12 o’clock
Shape +11/-3dB relative to 12 o’clock
Frequency 200Hz to 800Hz
Treble +5/-20dB, 6kHz relative to 12 o’clock
Preamp Output: 100Ω unbalanced 0dBu
Power Amp: In 20kΩ balanced, 0dBu for Rated Output Power (+14dBu max input)
Direct Output: 125Ω balanced
Stereo Aux Input: 3kΩ unbalanced, 10dBV
Phones: 80mW max, shuts off Direct Output & Speaker Output
Dimensions: 14” x 10.6” x 2.6” / 355mm x 270mm x 66mm
Weight: 7 lb / 3.2 kg
